Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Inspect the slide motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the seat cushion frame.
    Motor operation Connection
    B+ GND
    Forward A B
    Backward B A

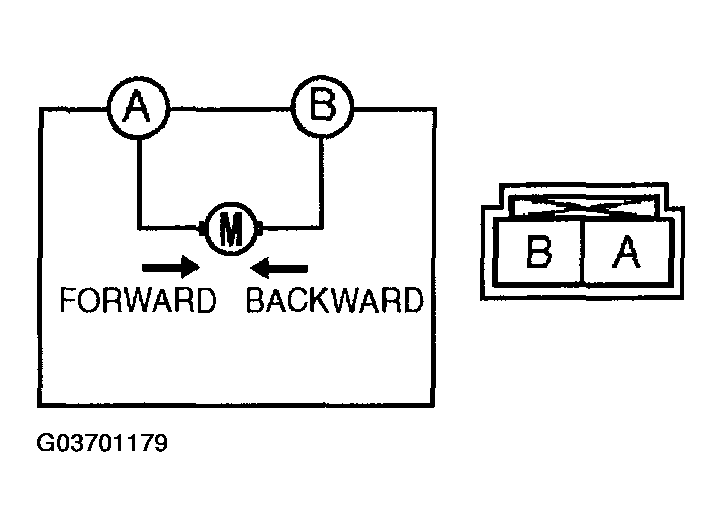

    Fig 1: Inspecting Slide Motor Operation
    G03701179Courtesy of MAZDA MOTORS CORP.
