Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Regulator Handle Installation

Regulator Handle Installation

  1. Install the clip in the regulator handle.
  2. Close the door glass fully and push the regulator handle on as shown.

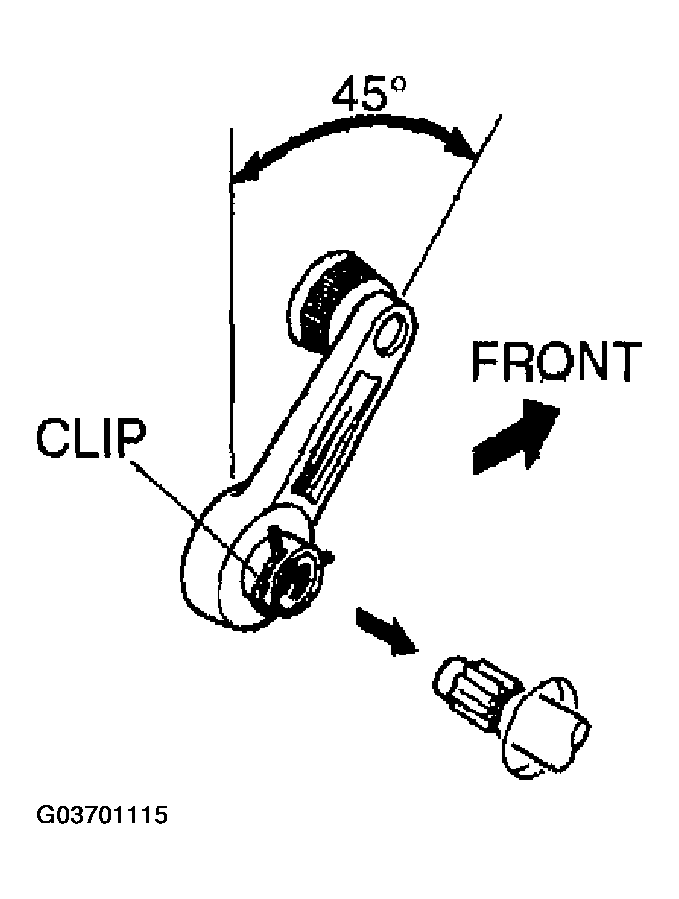

    Fig 1: Installing Clip In Regulator Handle
    G03701115Courtesy of MAZDA MOTORS CORP.
