Brake Pipe Installation Note
Brake Pipe Installation Note
When installing the brake pipe, align the marks made before removal with the ABS/TCS HU/CM as shown in
Fig 1
.

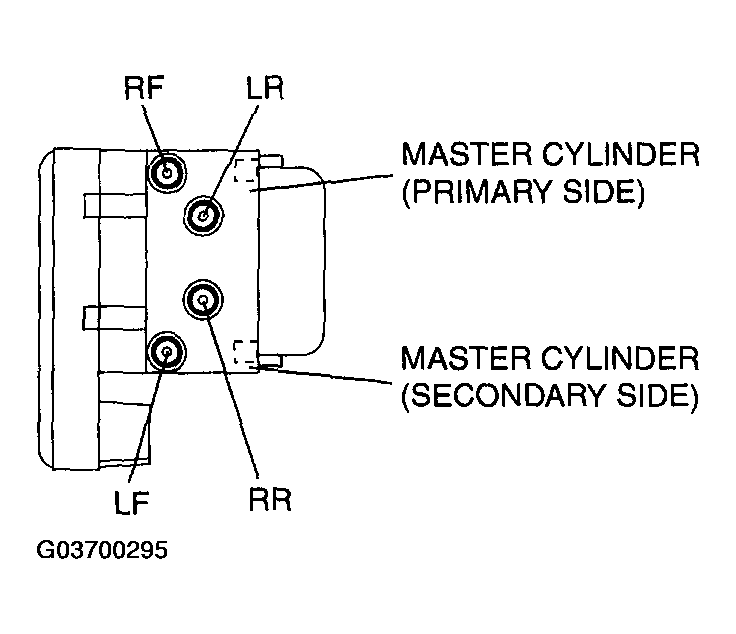

Fig 1: Installing Brake Pipe
Courtesy of MAZDA MOTORS CORP.
