TCS Off Switch Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.

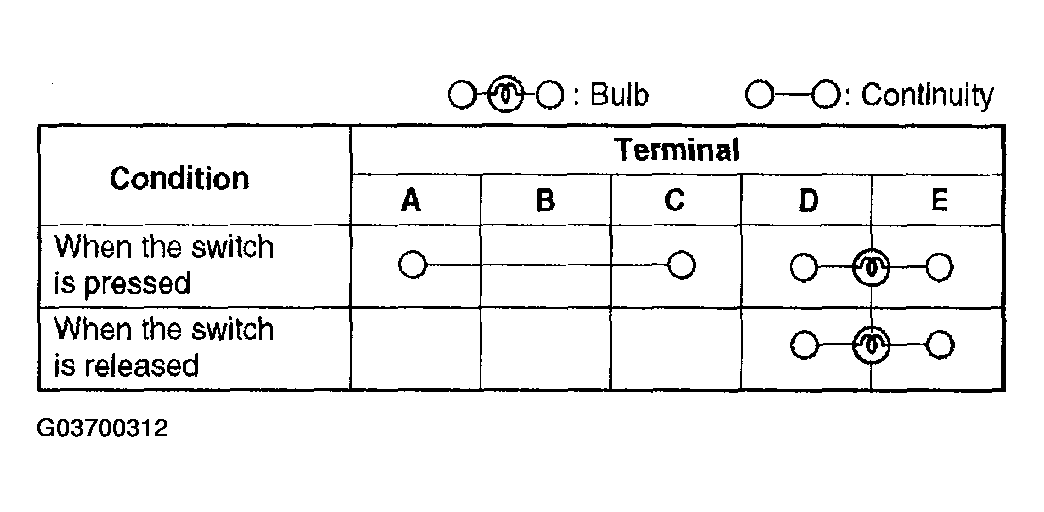

    Fig 1: Inspecting TCS Off Switch Continuity
    G03700312Courtesy of MAZDA MOTORS CORP.

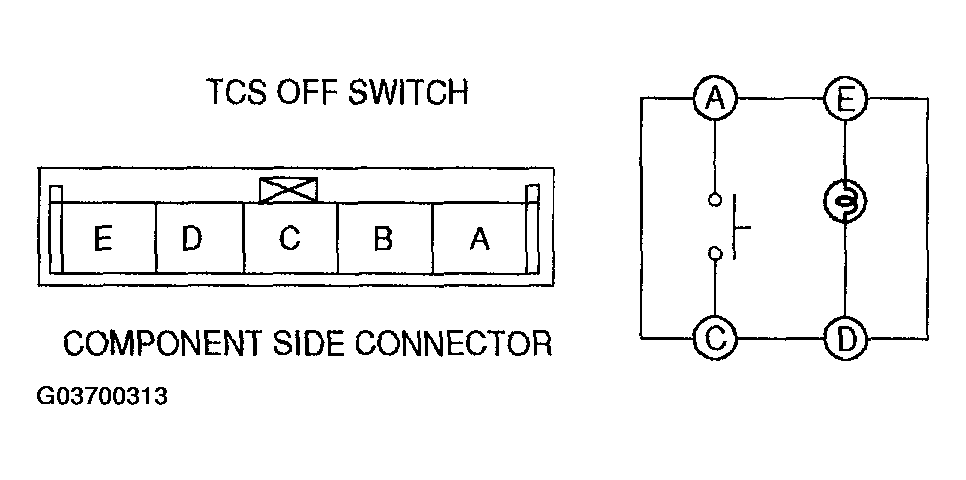

    Fig 2: Identifying TCS Off Switch Connector Terminals
    G03700313Courtesy of MAZDA MOTORS CORP.
    • If not within the specification, replace the TCS OFF switch.
