Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Clock Spring Connector End View (Two-Step Deployment Control System)

Clock Spring Connector End View (Two-Step Deployment Control System)

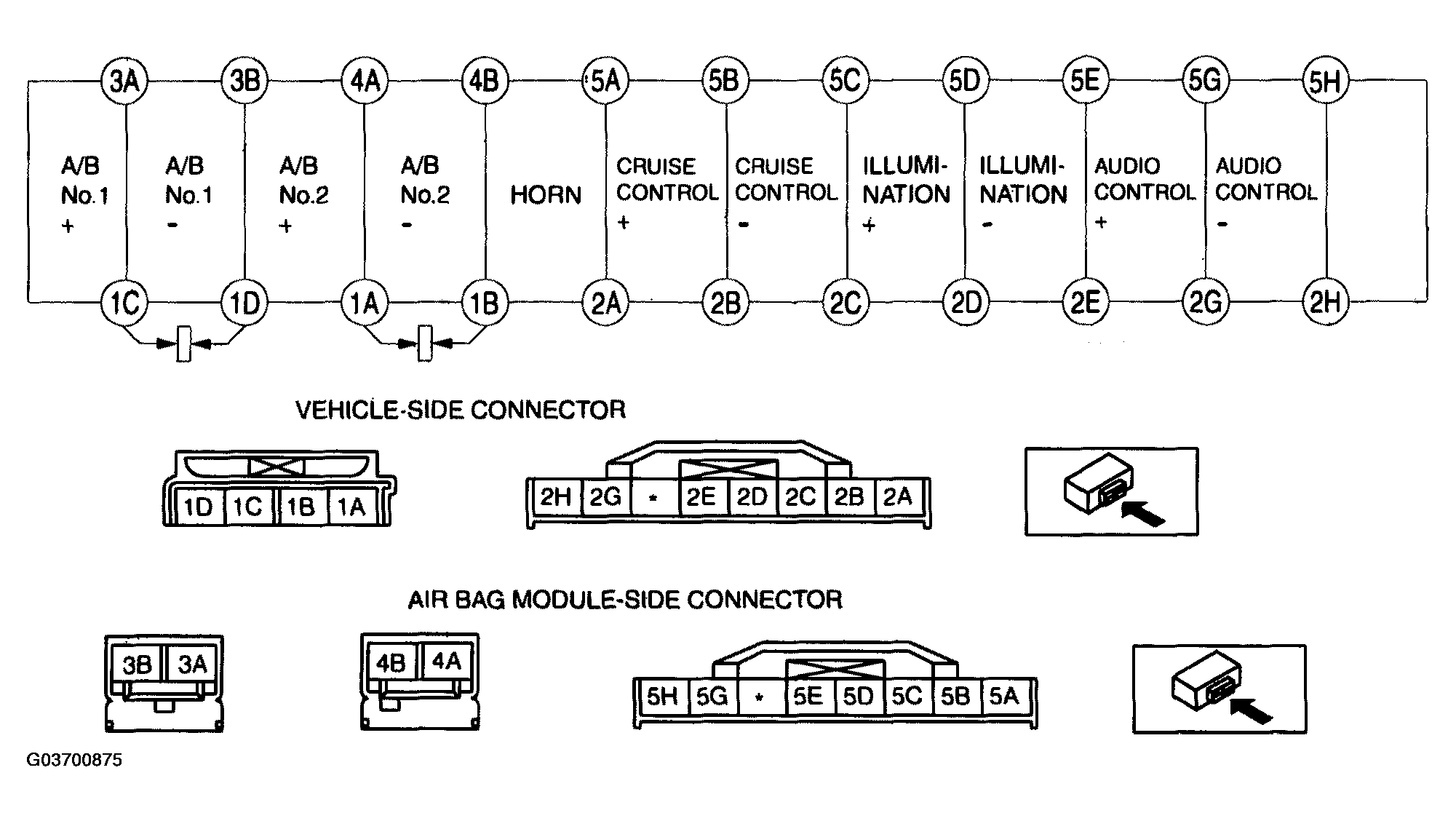

Fig 1: Clock Spring Connector End View (Two-Step Deployment Control System)

G03700875

Courtesy of MAZDA MOTORS CORP.
