Engine Technical Data

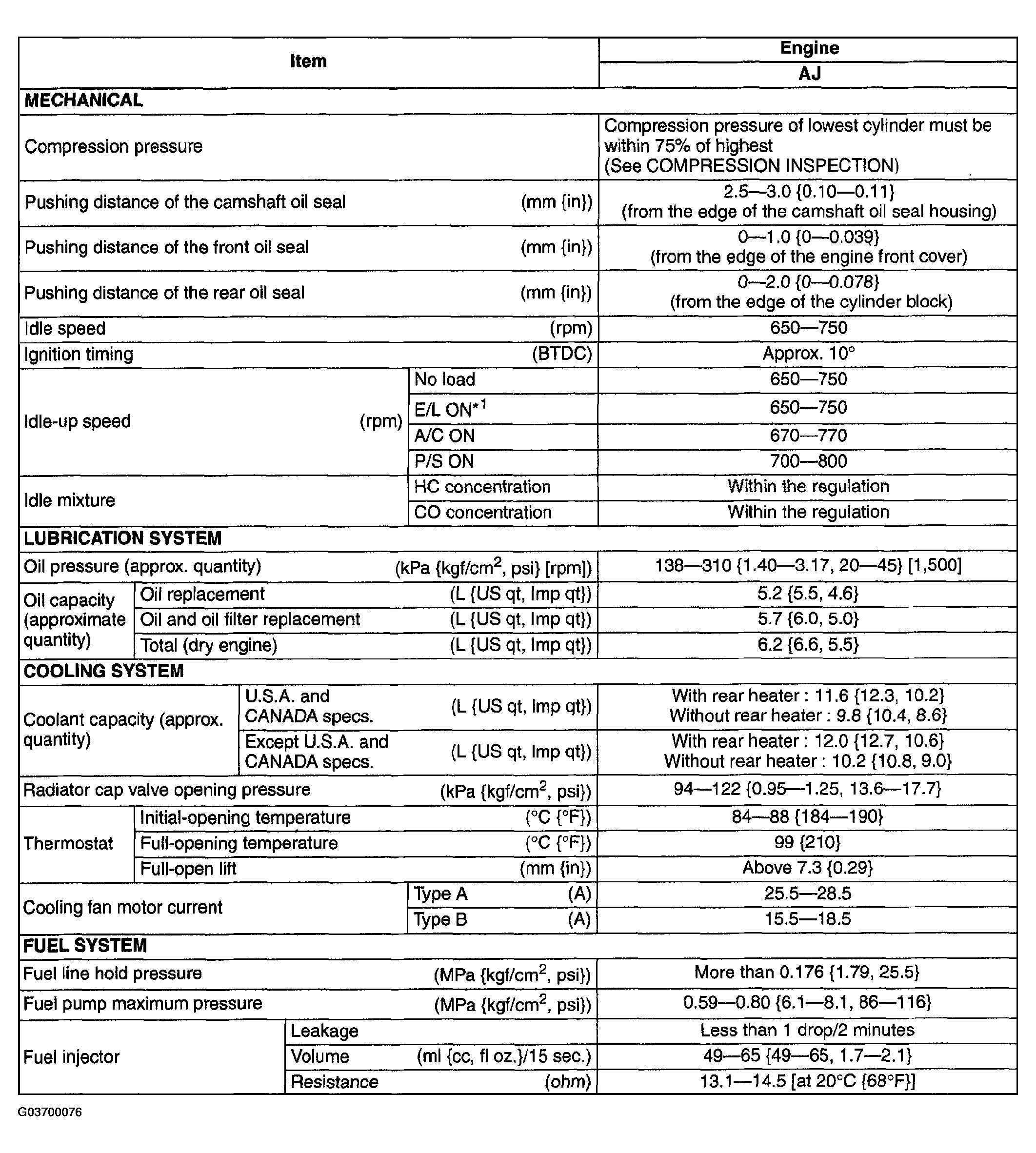

Fig 1: Engine Technical Data (1 Of 3)
G03700076Courtesy of MAZDA MOTORS CORP.

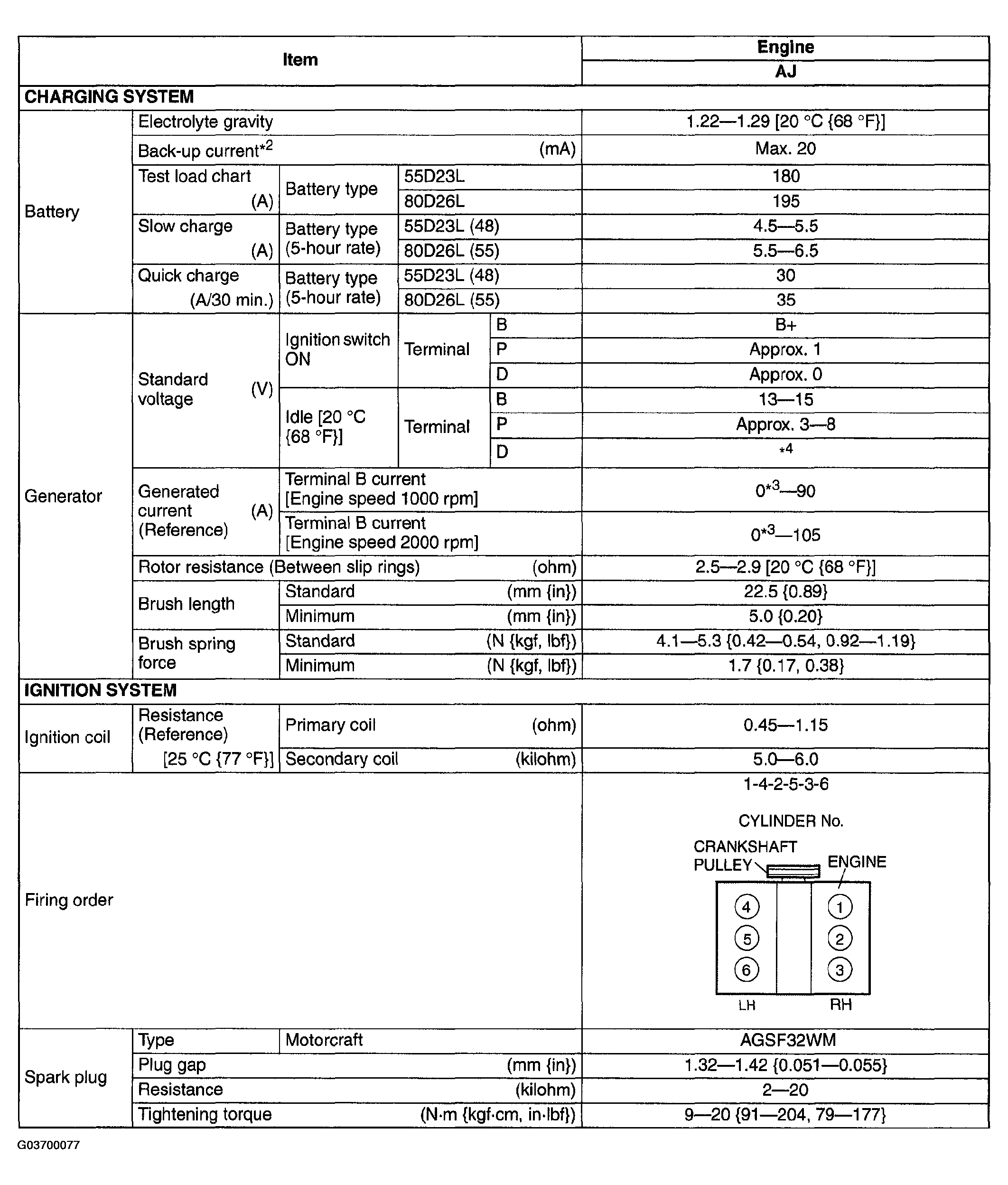

Fig 2: Engine Technical Data (2 Of 3)
G03700077Courtesy of MAZDA MOTORS CORP.

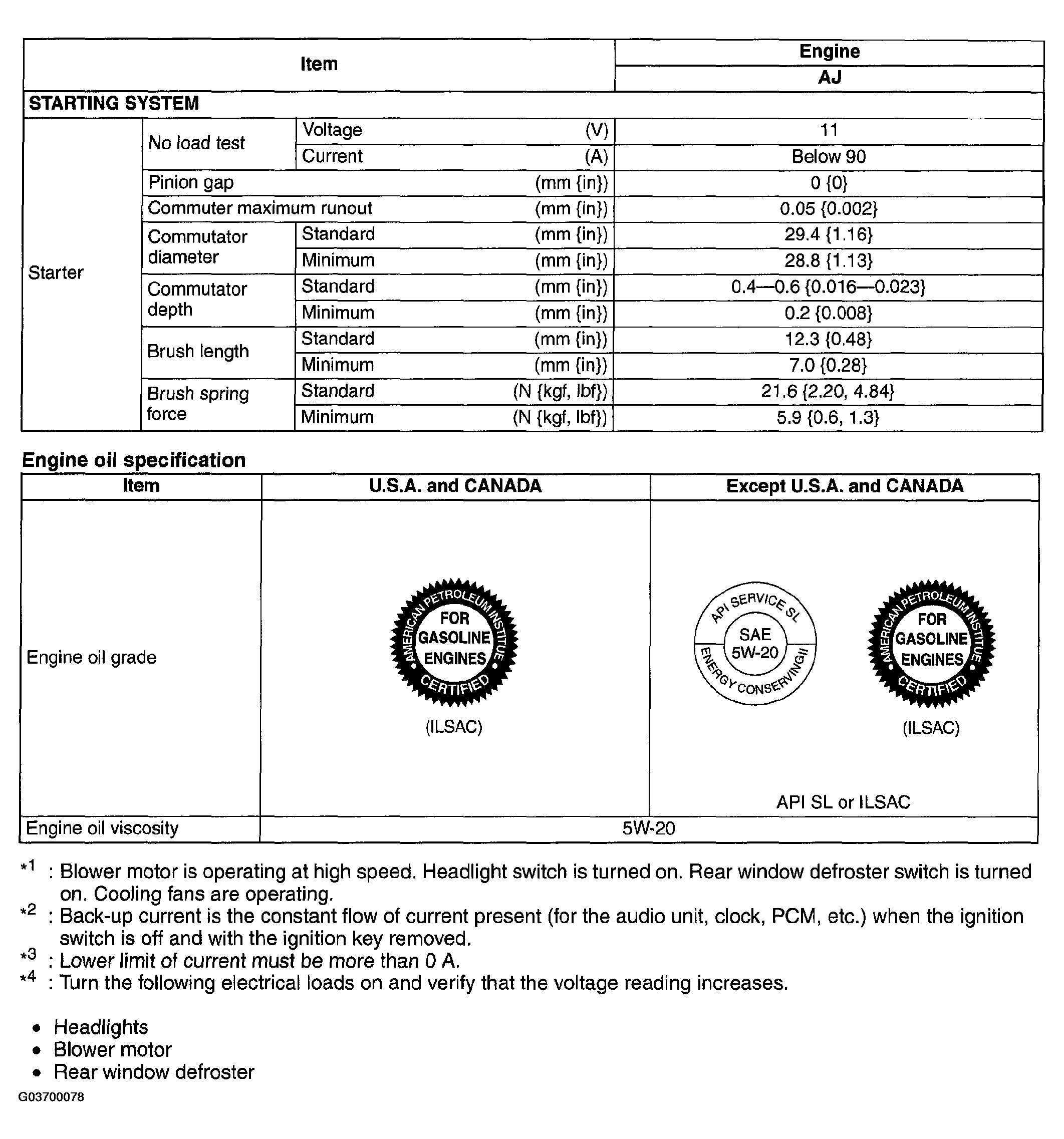

Fig 3: Engine Technical Data (3 Of 3)
G03700078Courtesy of MAZDA MOTORS CORP.
