Front Tweeter Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner garnish from the front door.
  3. Remove the screws.
  4. Remove the front tweeter.
  5. Install in the reverse order of removal.

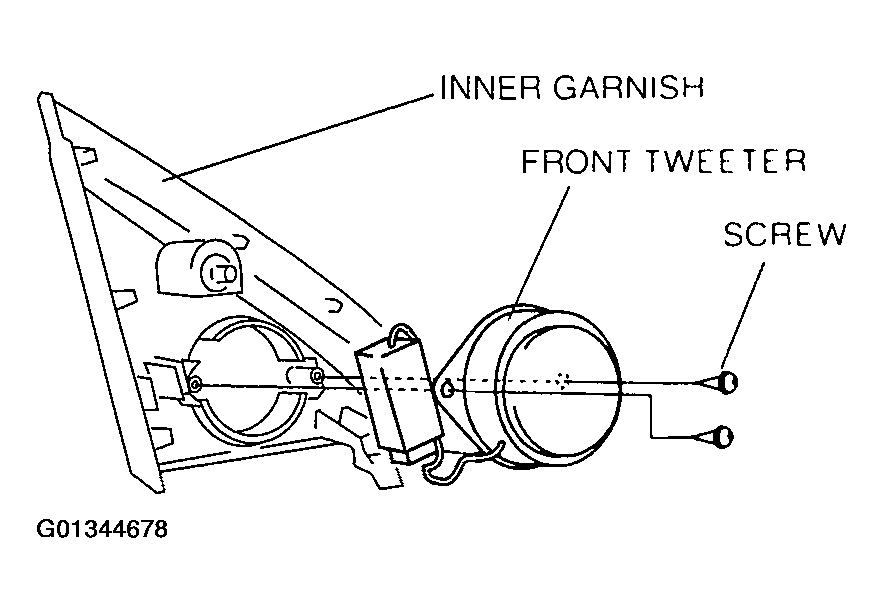

    Fig 1: Removing/Installing Front Tweeter
    G01344678Courtesy of MAZDA MOTORS CORP.
