Starter Installation Note

Temporarily tighten the starter fitting bolt A.

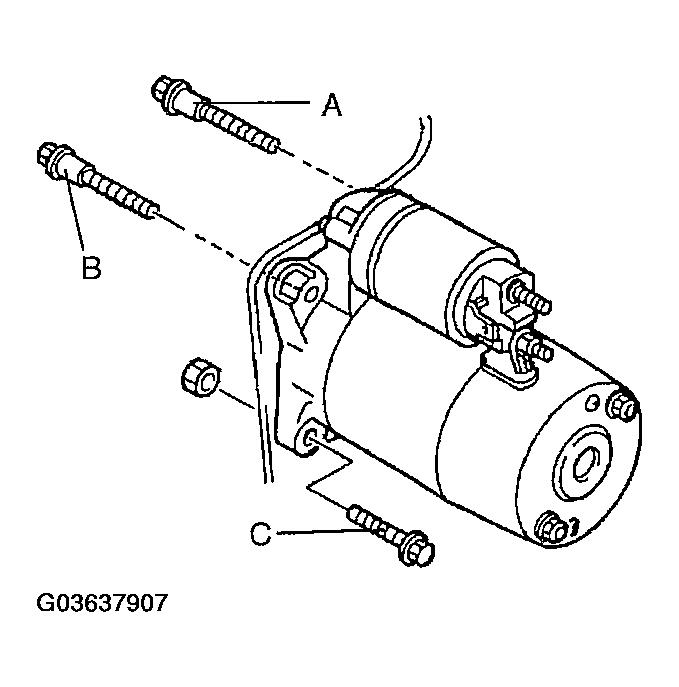

Fig 1: Tightening Starter Fitting Bolt
Courtesy of MAZDA MOTORS CORP.
Tighten the starter fitting bolts B and C.
Tightening torque

38-51 N. m {3. 8-5. 3 kgf. m, 28-38 ft. lbf}
Tighten the starter fitting bolt A.
Tightening torque

38-51 N. m {3. 8-5. 3 kgf. m, 28-38 ft. lbf}
