Fuel Pump (FP) Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

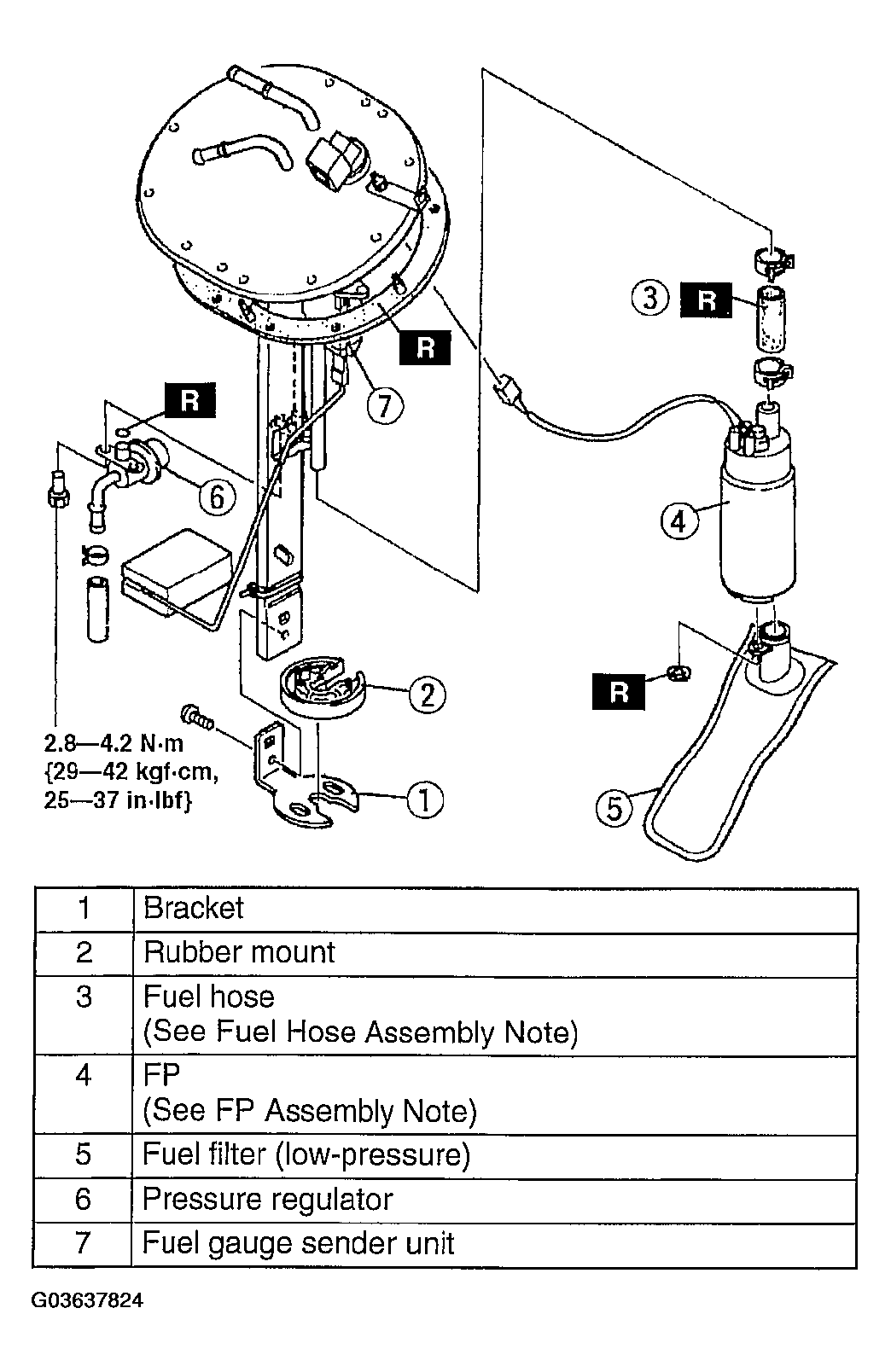

    Fig 1: Disassembling Fuel Pump (FP) & Torque Specifications
    G03637824Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
