Fuel Drawing Note

  1. Remove the fuel-filler cap and insert a hose into the fuel tank through the fuel-filler pipe.
  2. Siphon the fuel into a container using a fuel drawing pump.

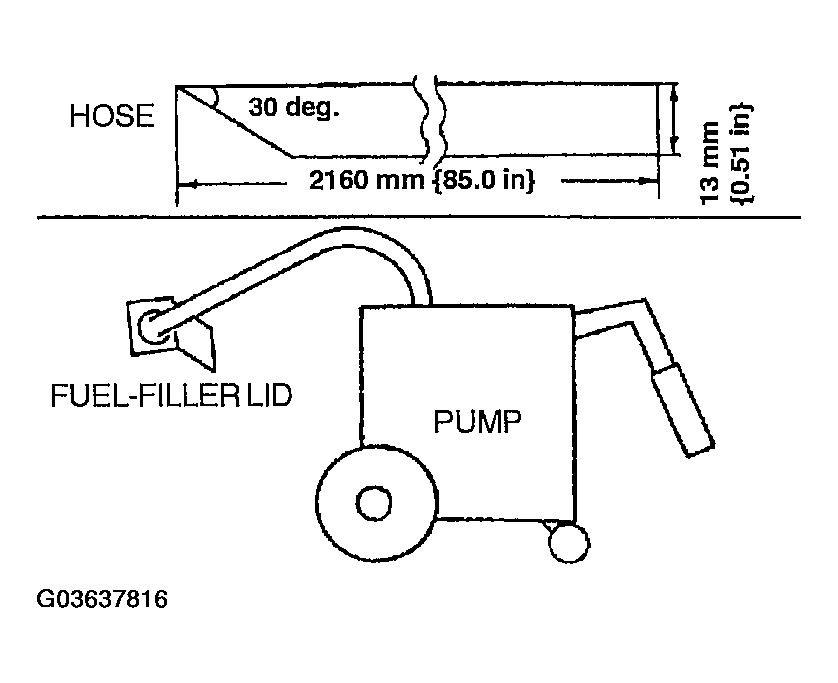

    Fig 1: Identifying Siphon Fuel Into A Container Using Fuel Drawing Pump
    G03637816Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • For ease of work, prepare a hose of the following size.

    Specification

    1. Outer diameter:13 mm {0.51 in}
    2. Length:2160 mm {85.0 in} or longer
