Engine Technical Data: Notes

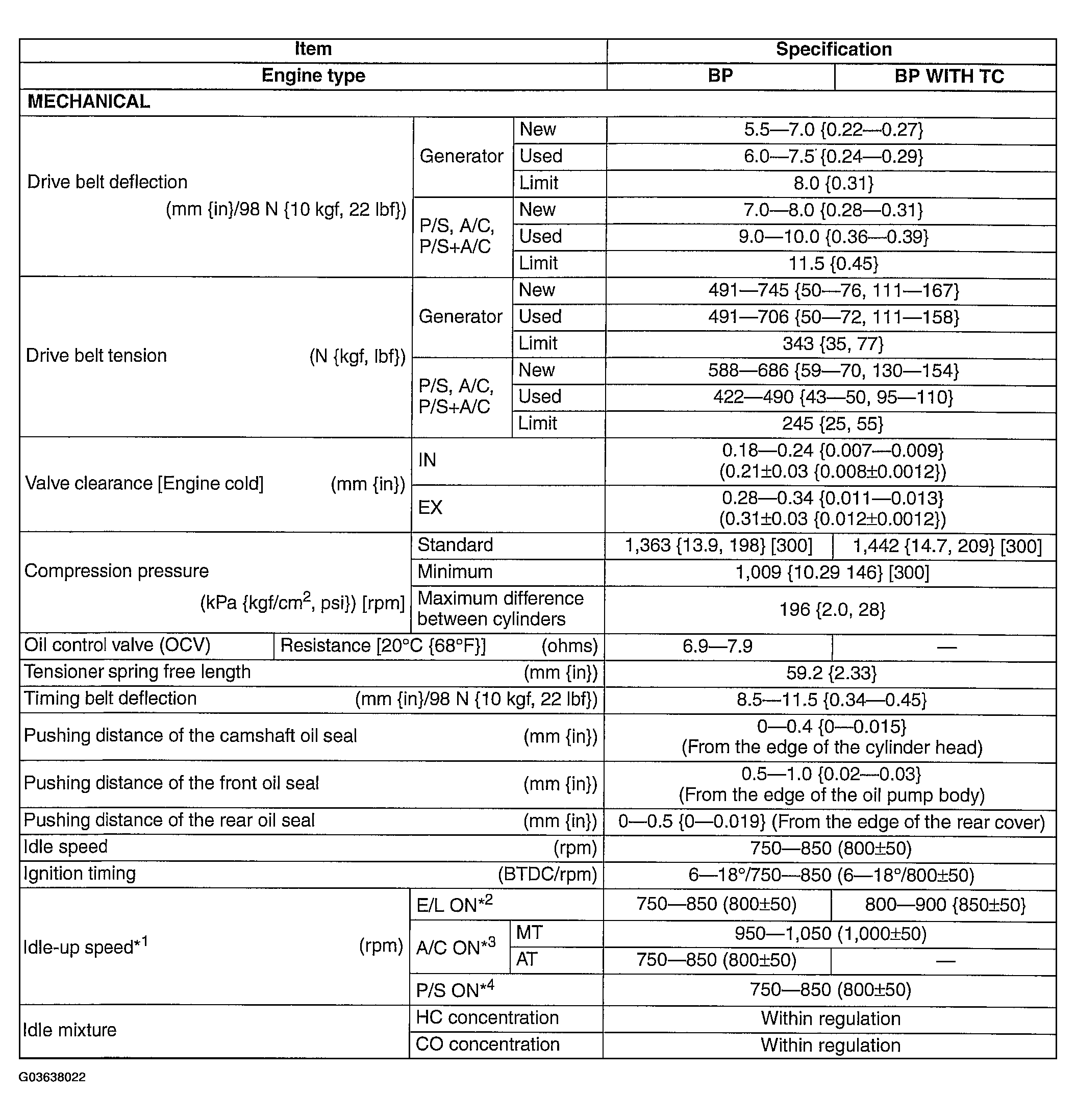

Fig 1: Engine Technical Data Chart (1 Of 3)
G03638022Courtesy of MAZDA MOTORS CORP.

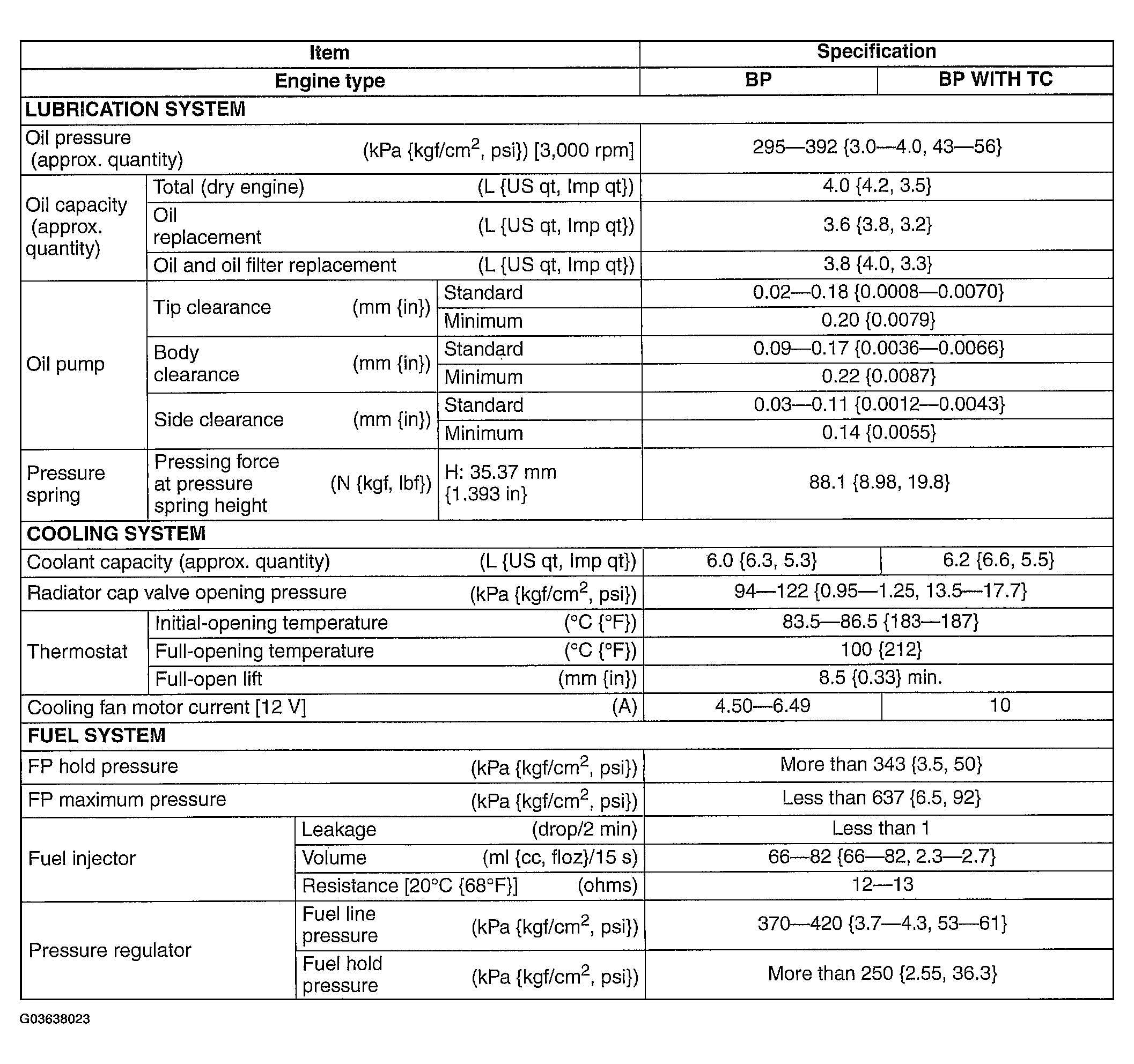

Fig 2: Engine Technical Data Chart (2 Of 3)
G03638023Courtesy of MAZDA MOTORS CORP.

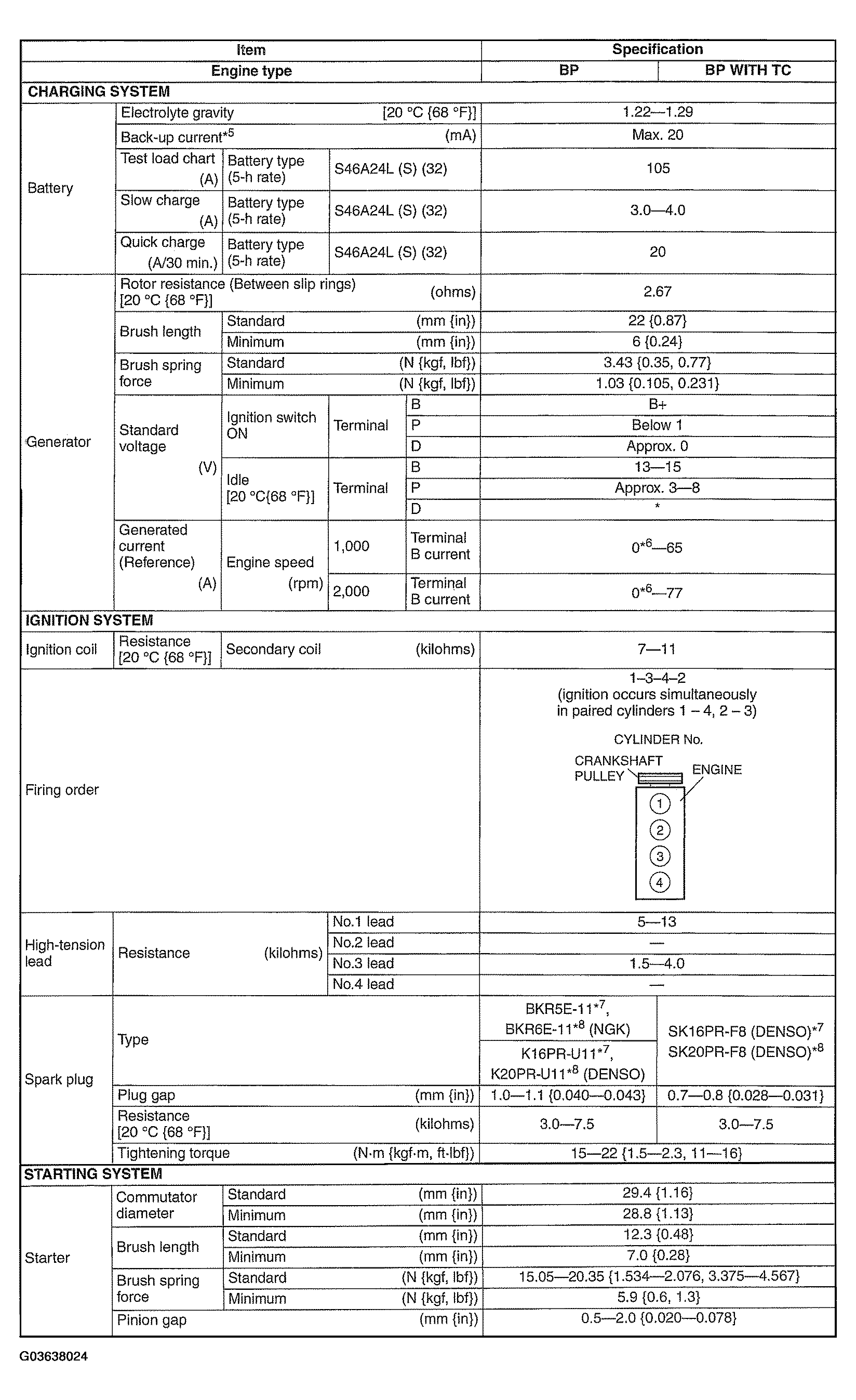

Fig 3: Engine Technical Data Chart (3 Of 3)
G03638024Courtesy of MAZDA MOTORS CORP.
