Home >> Mazda >> 2005 >> Tribute s, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Window Control Switch >> Removal and Installation

Removal and Installation

NOTE:
  • The removal and installation procedures for all window control switches are similar.
  1. Remove the front door trim panel or the rear door trim panel. See FRONT DOOR TRIM PANEL or REAR DOOR TRIM PANEL .
  2. Release the locking clips and remove the window control switch.

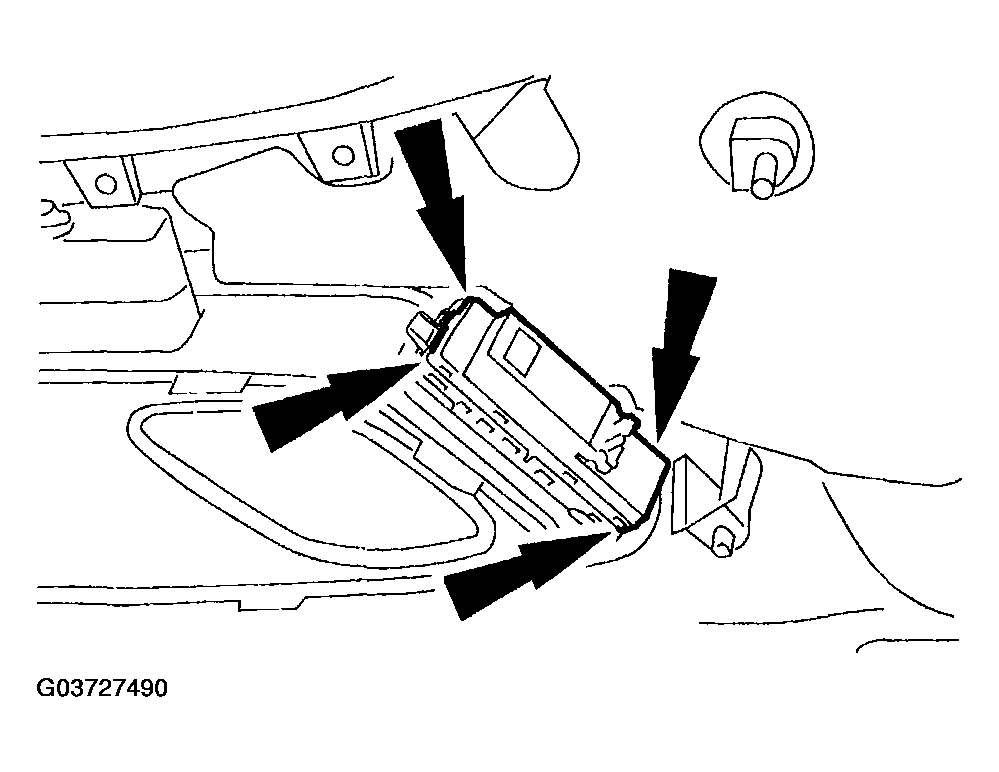

    Fig 1: Removing Window Control Switch
    G03727490Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
