Home >> Mazda >> 2005 >> Tribute s, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator - 2.3L >> Notes

Generator - 2.3L: Notes

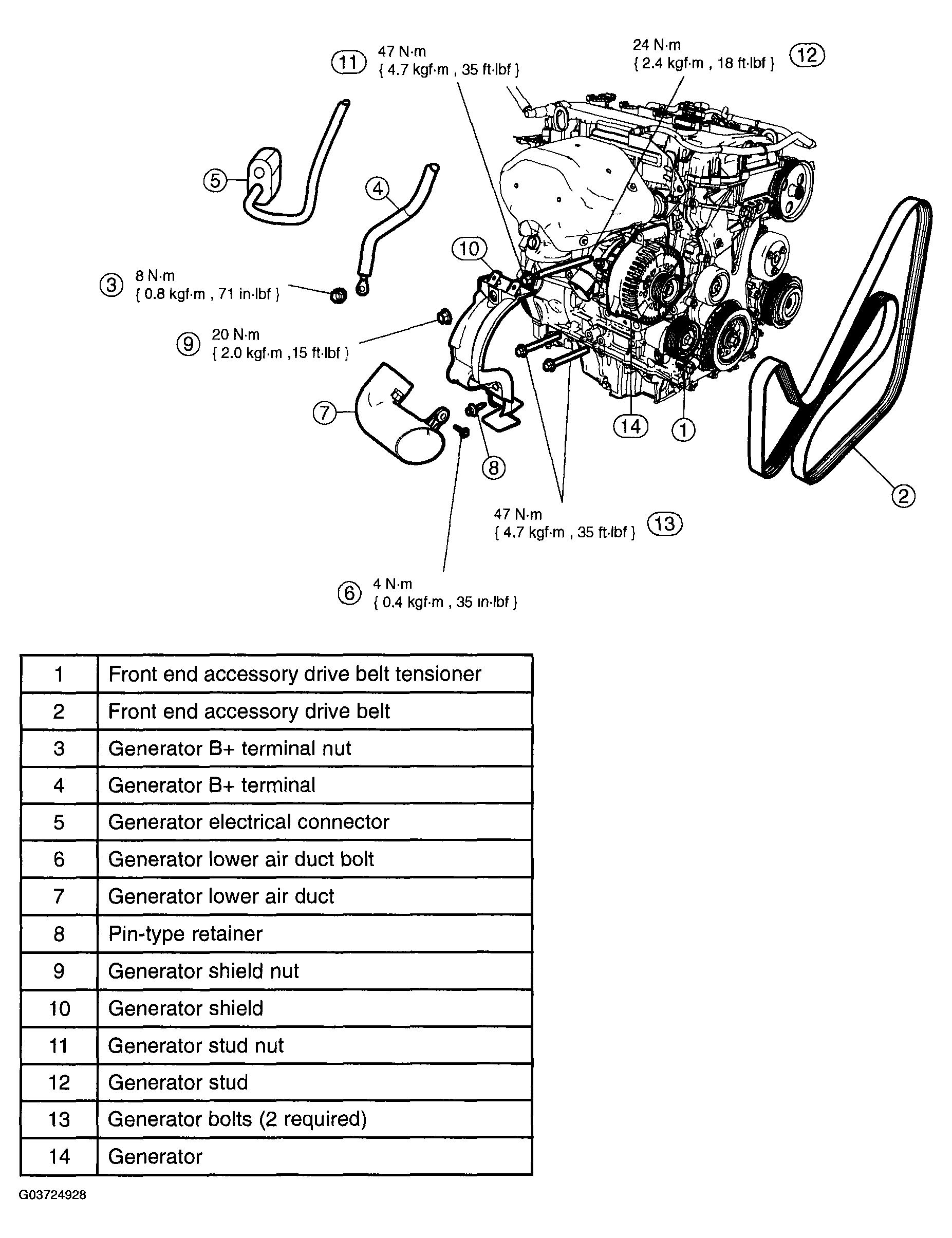

Fig 1: Generator With Torque Specifications -- 2.3L

G03724928

Courtesy of MAZDA MOTORS CORP.
