Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box

G00364810

Courtesy of MAZDA MOTORS CORP.

Fig 2: Vehicle Overview (3.0L)

G00364811

Courtesy of MAZDA MOTORS CORP.

Fig 3: Vehicle Overview (3.0L)

G00364812

Courtesy of MAZDA MOTORS CORP.

Fig 4: Engine Compartment (3.0L)

G00364813

Courtesy of MAZDA MOTORS CORP.

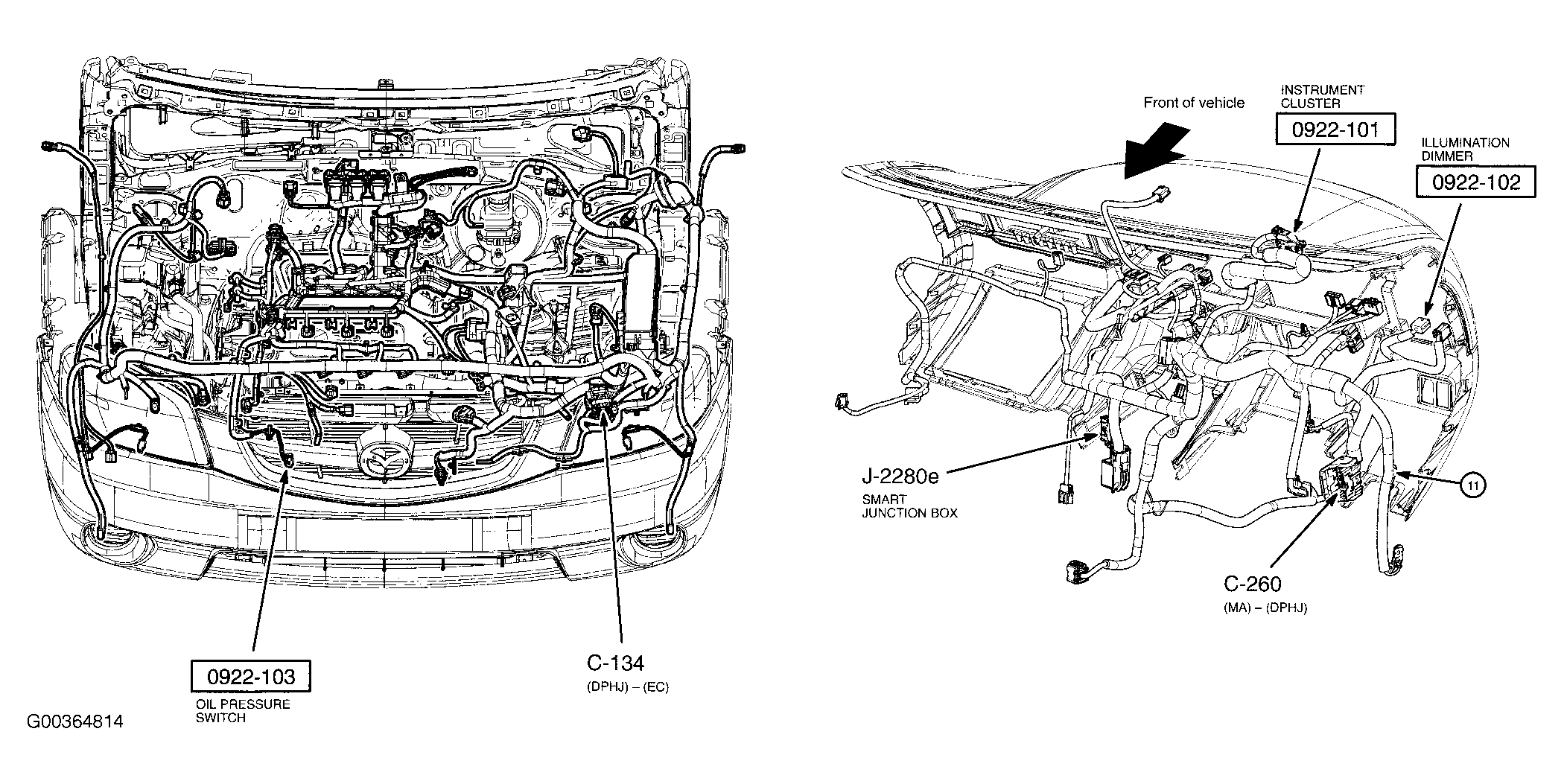

Fig 5: Engine Compartment (3.0L)

G00364814

Courtesy of MAZDA MOTORS CORP.

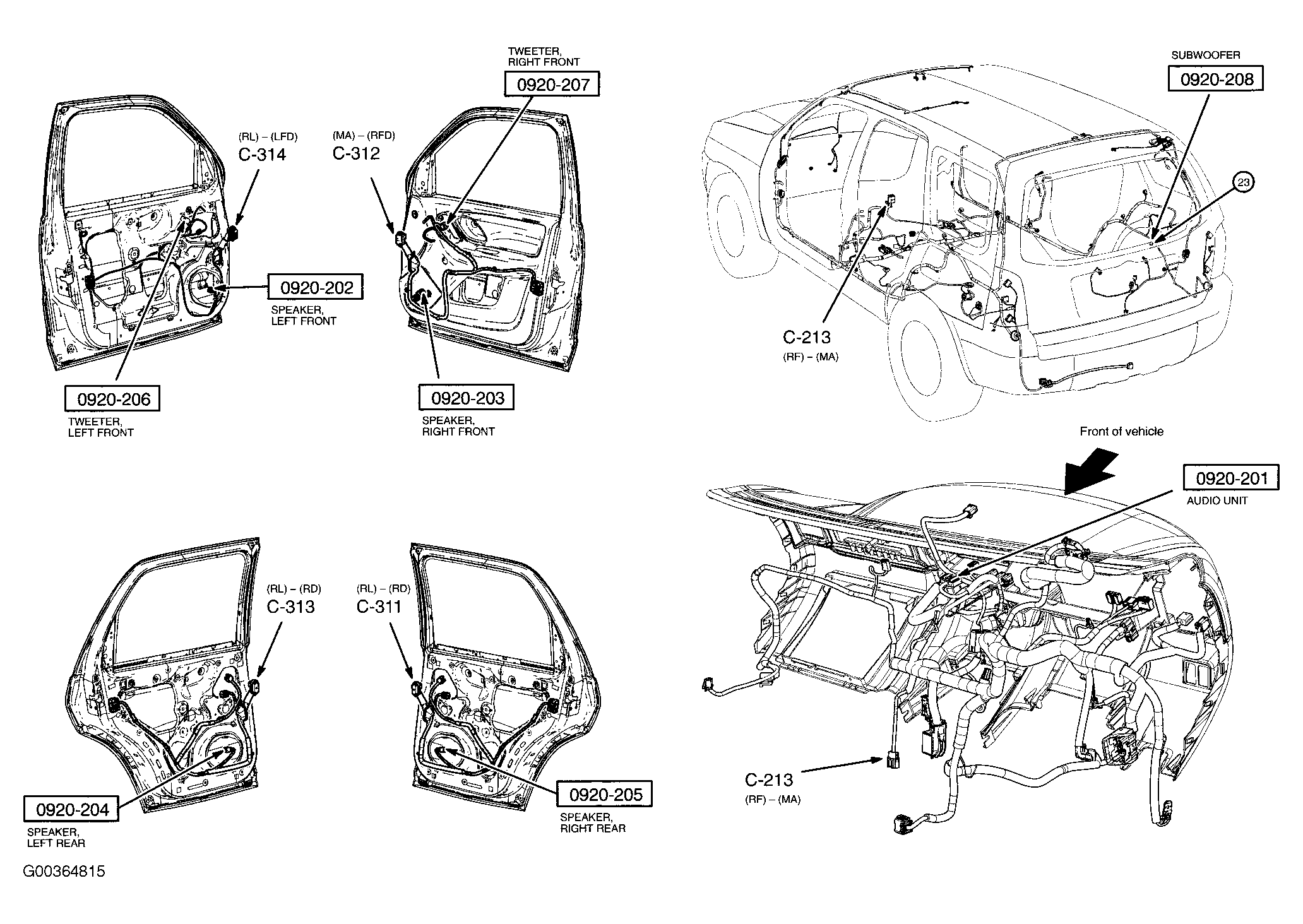

Fig 6: Doors

G00364815

Courtesy of MAZDA MOTORS CORP.

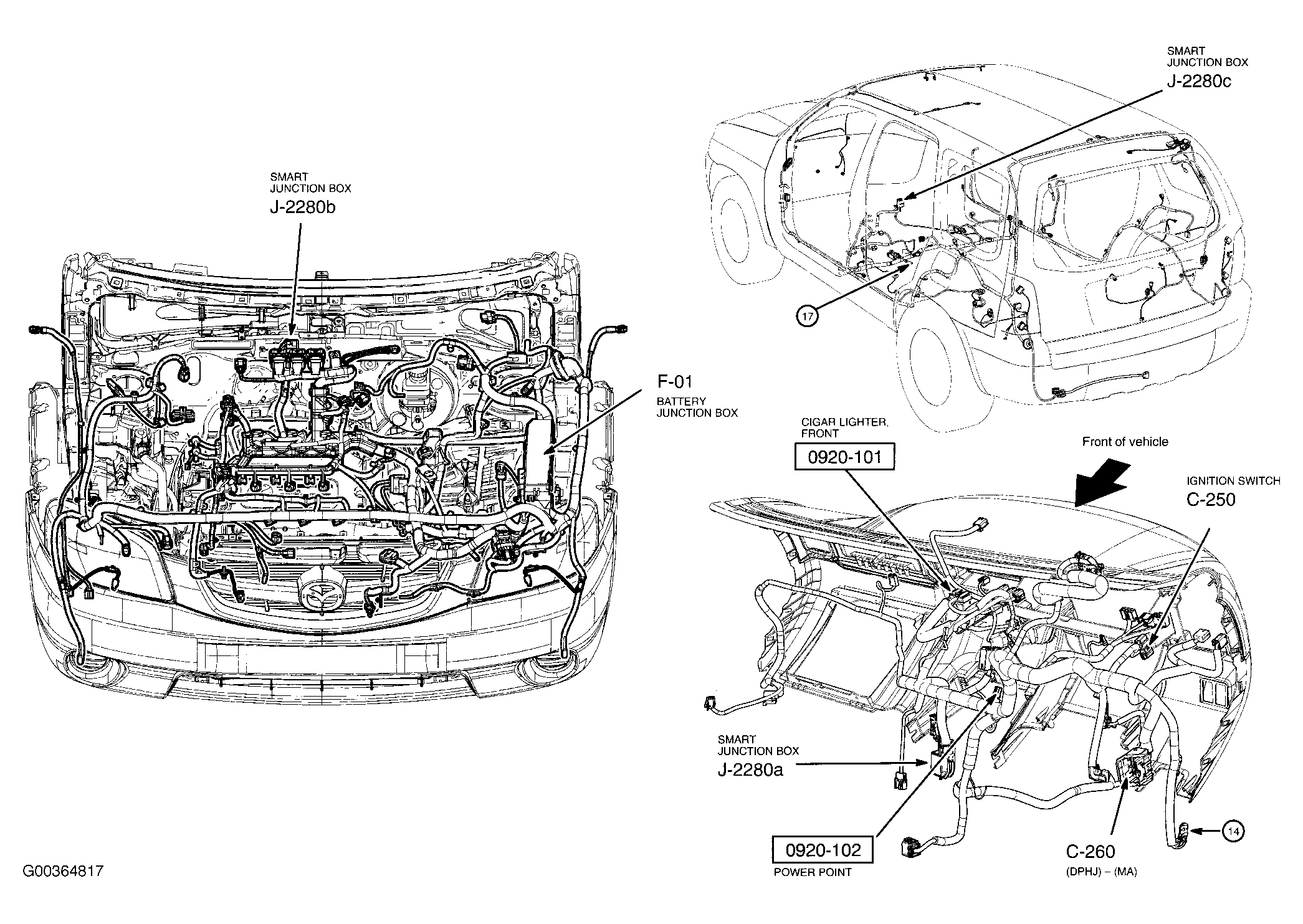

Fig 7: Vehicle Overview (3.0L)

G00364817

Courtesy of MAZDA MOTORS CORP.

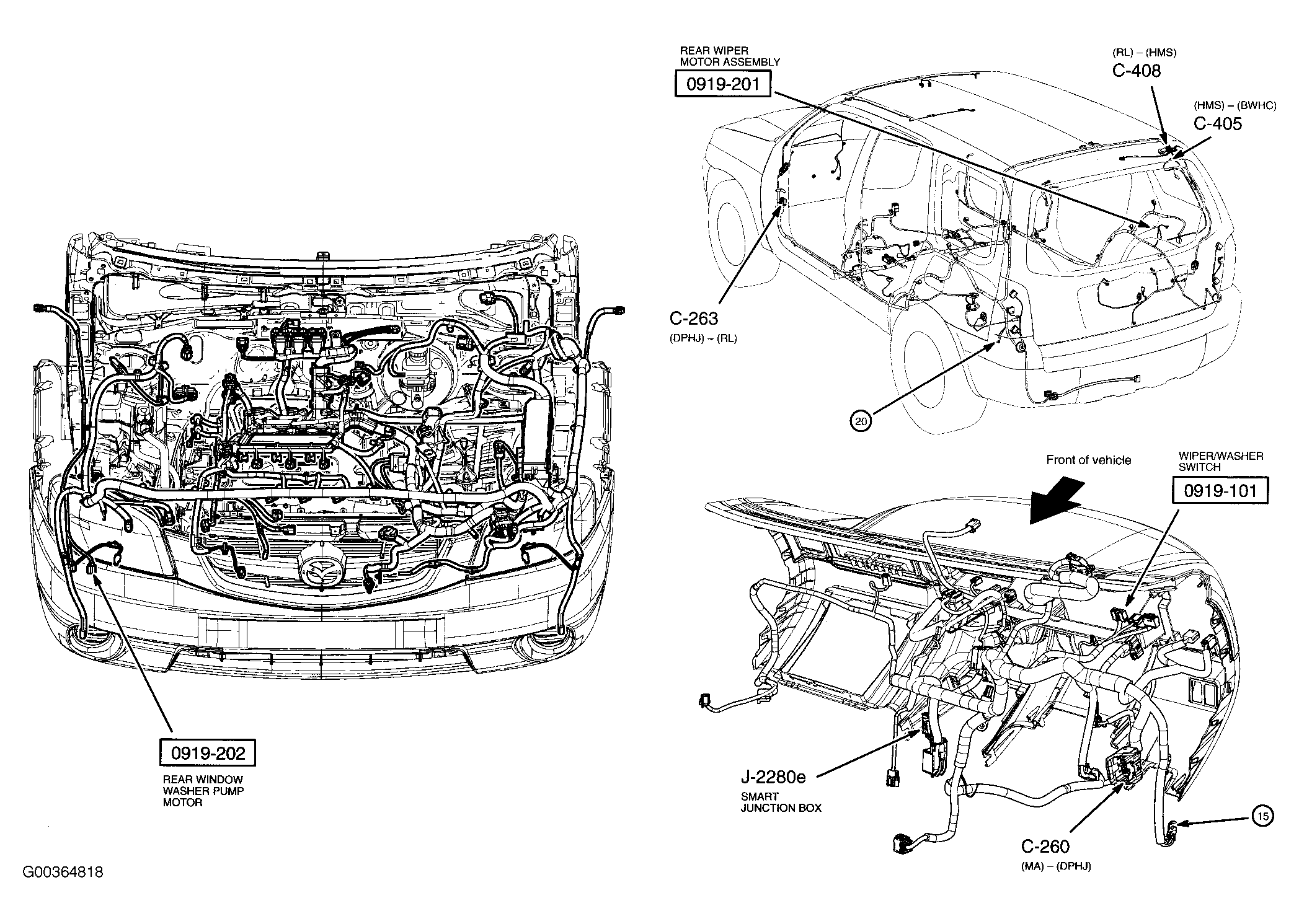

Fig 8: Vehicle Overview (3.0L)

G00364818

Courtesy of MAZDA MOTORS CORP.

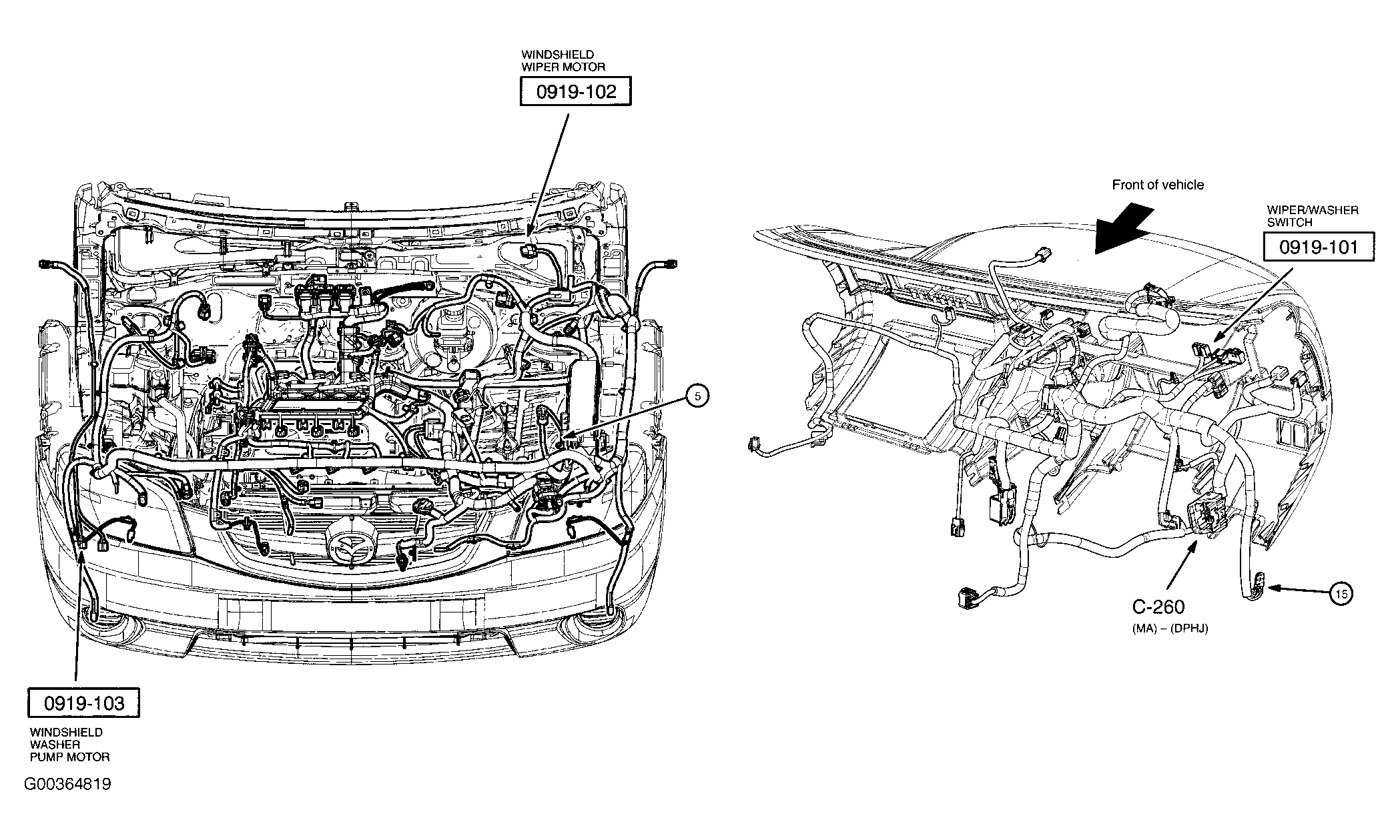

Fig 9: Engine Compartment (3.0L)

G00364819

Courtesy of MAZDA MOTORS CORP.

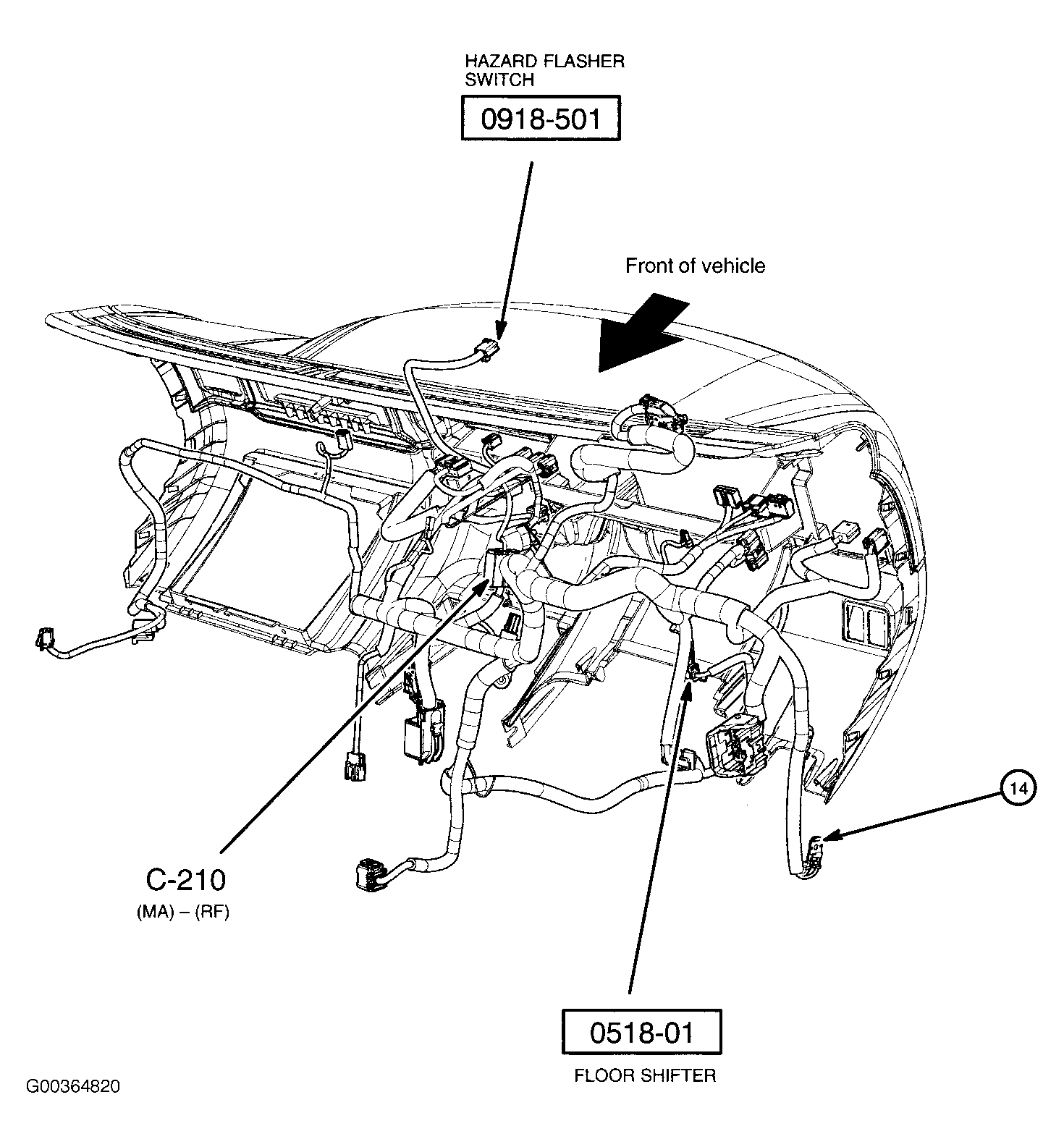

Fig 10: Left Side Of Dash

G00364820

Courtesy of MAZDA MOTORS CORP.

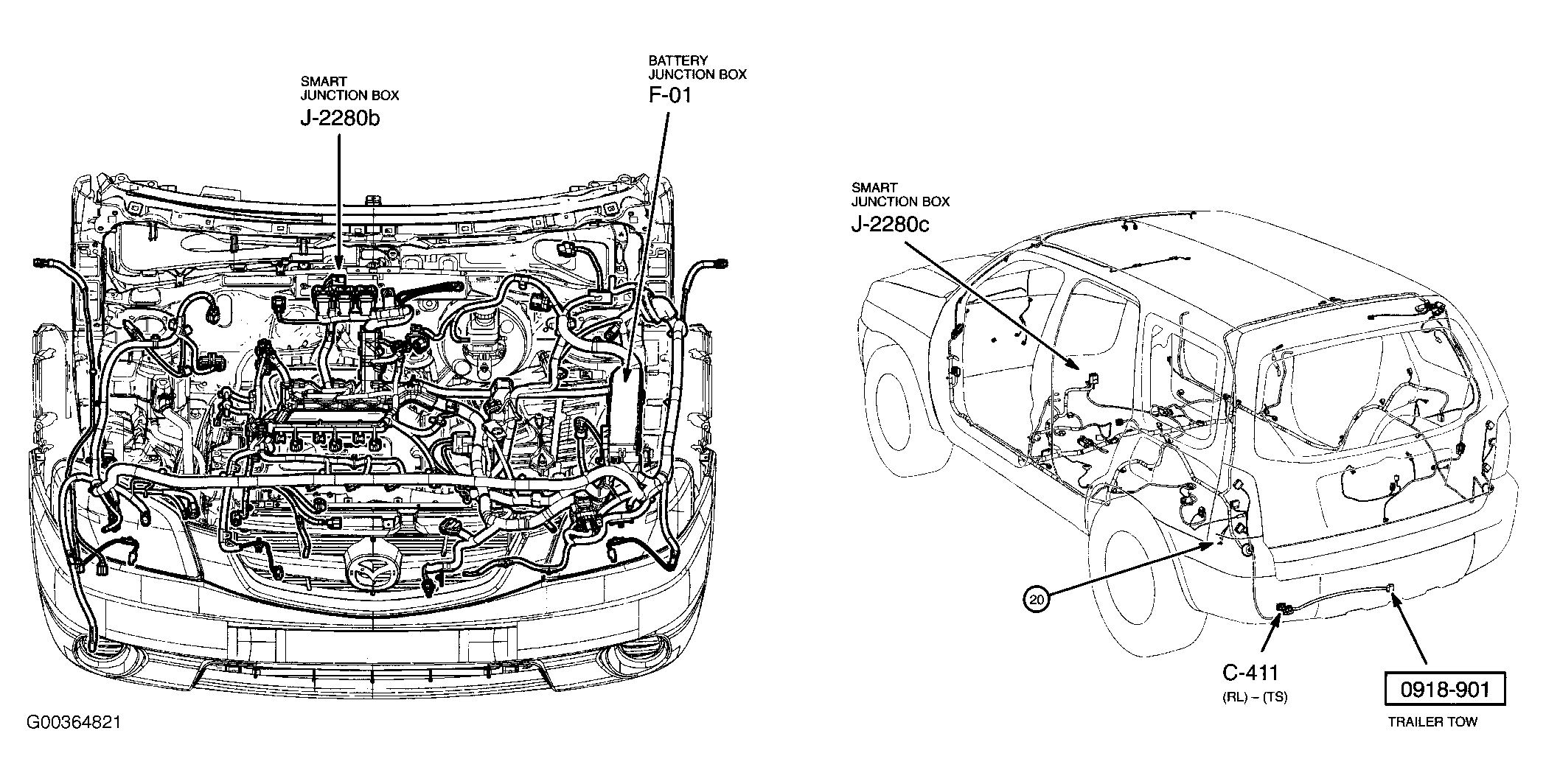

Fig 11: Vehicle Overview (3.0L)

G00364821

Courtesy of MAZDA MOTORS CORP.

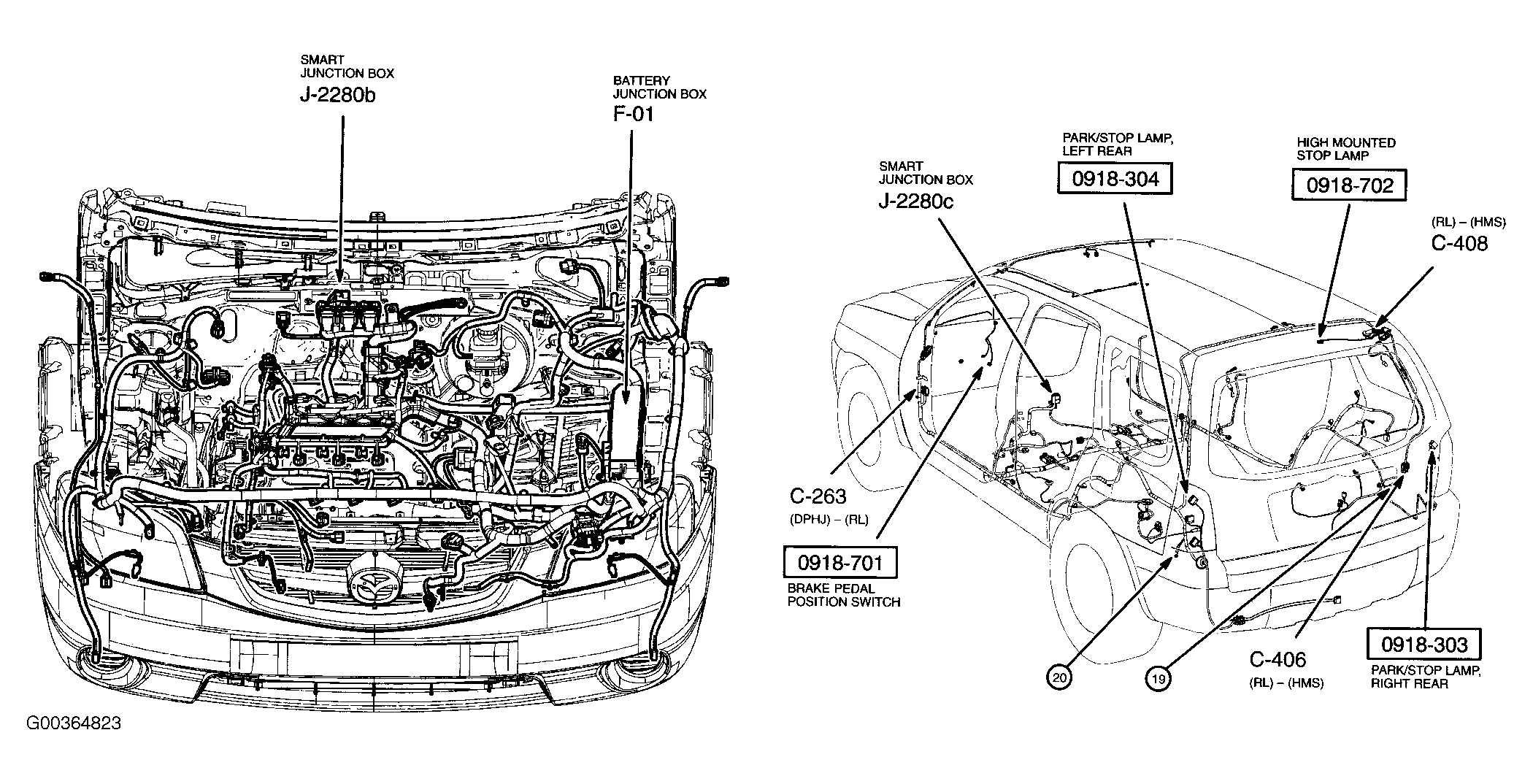

Fig 12: Vehicle Overview (3.0L)

G00364823

Courtesy of MAZDA MOTORS CORP.

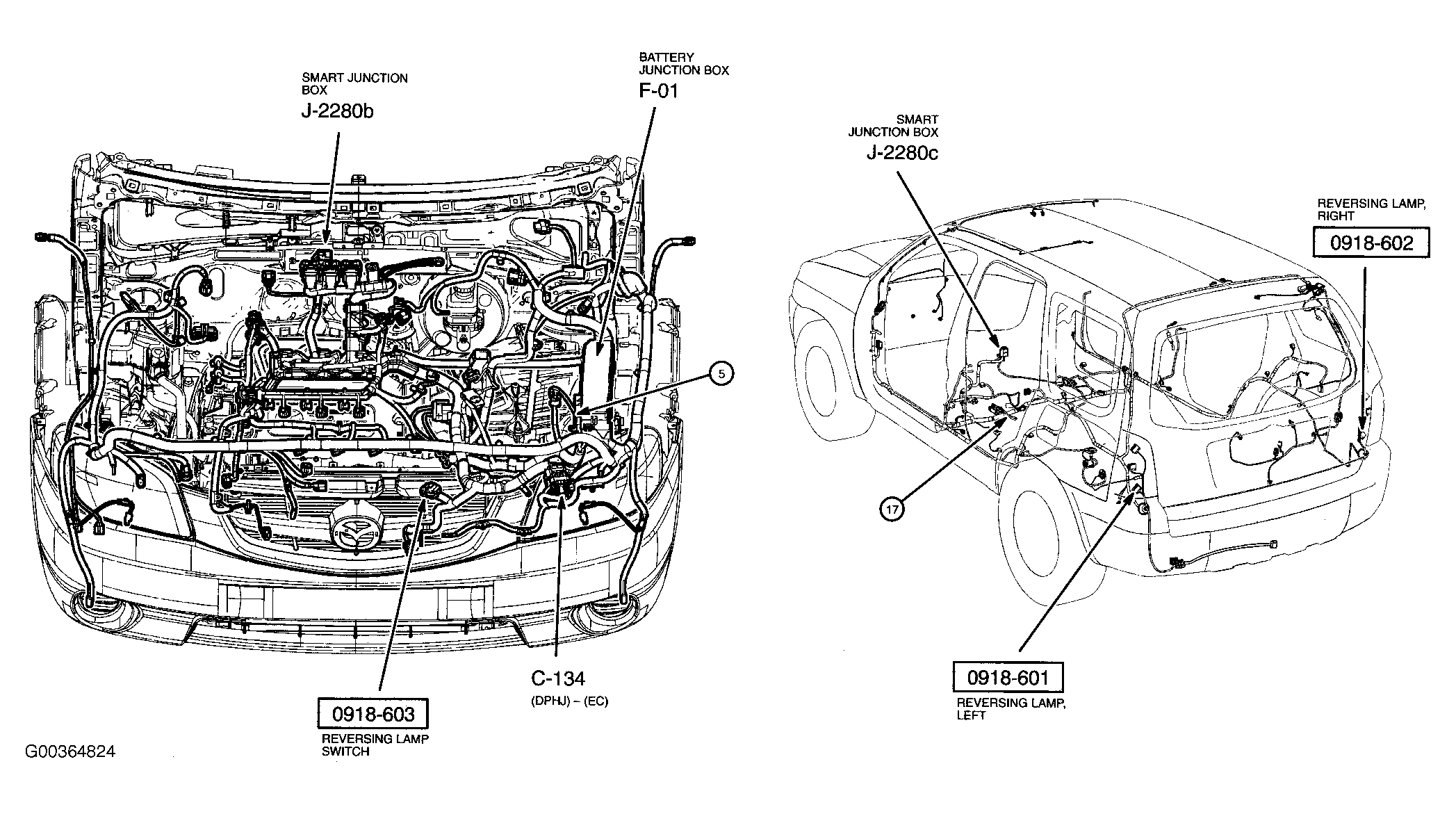

Fig 13: Vehicle Overview (3.0L)

G00364824

Courtesy of MAZDA MOTORS CORP.

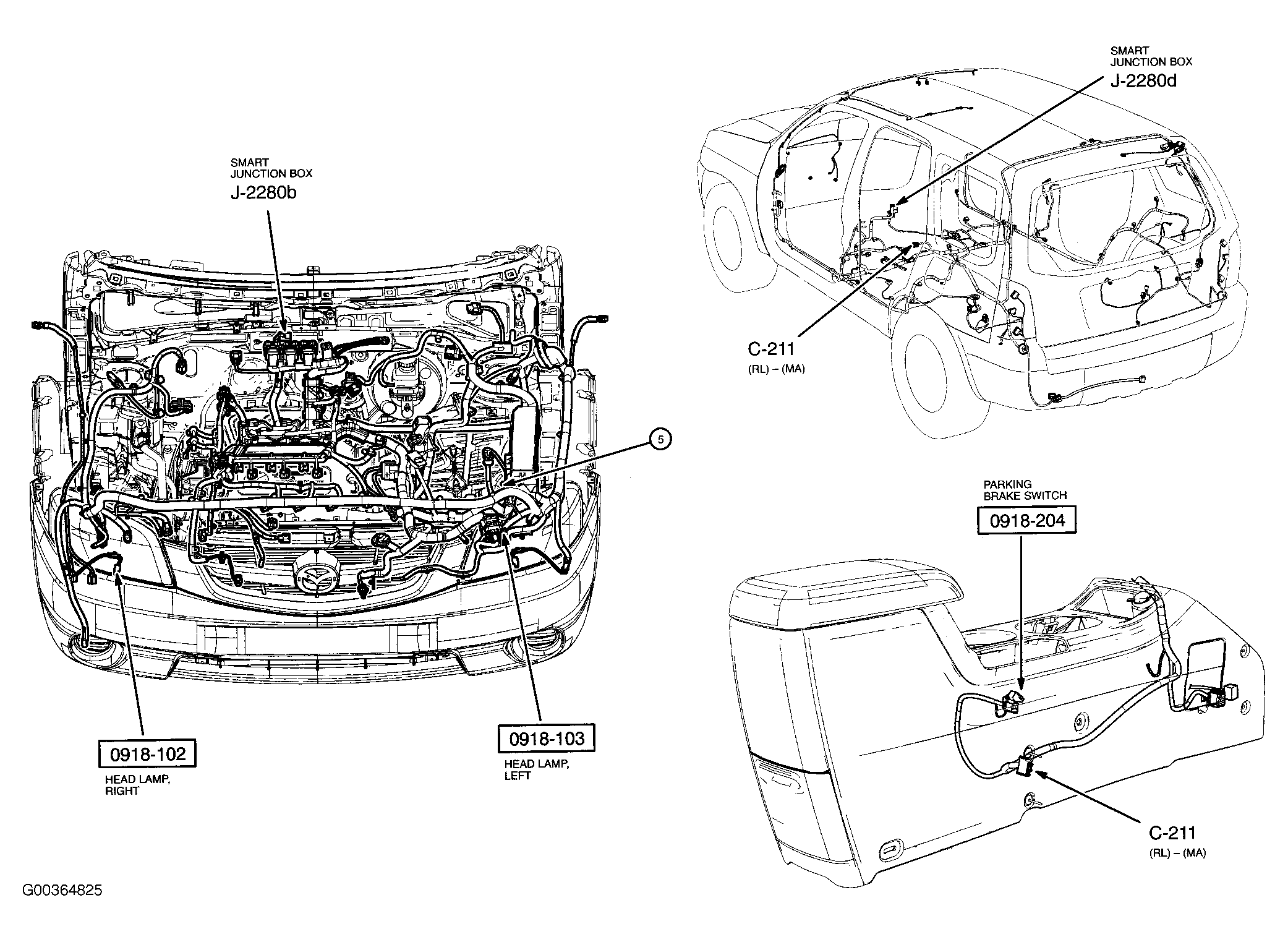

Fig 14: Vehicle Overview (3.0L)

G00364825

Courtesy of MAZDA MOTORS CORP.

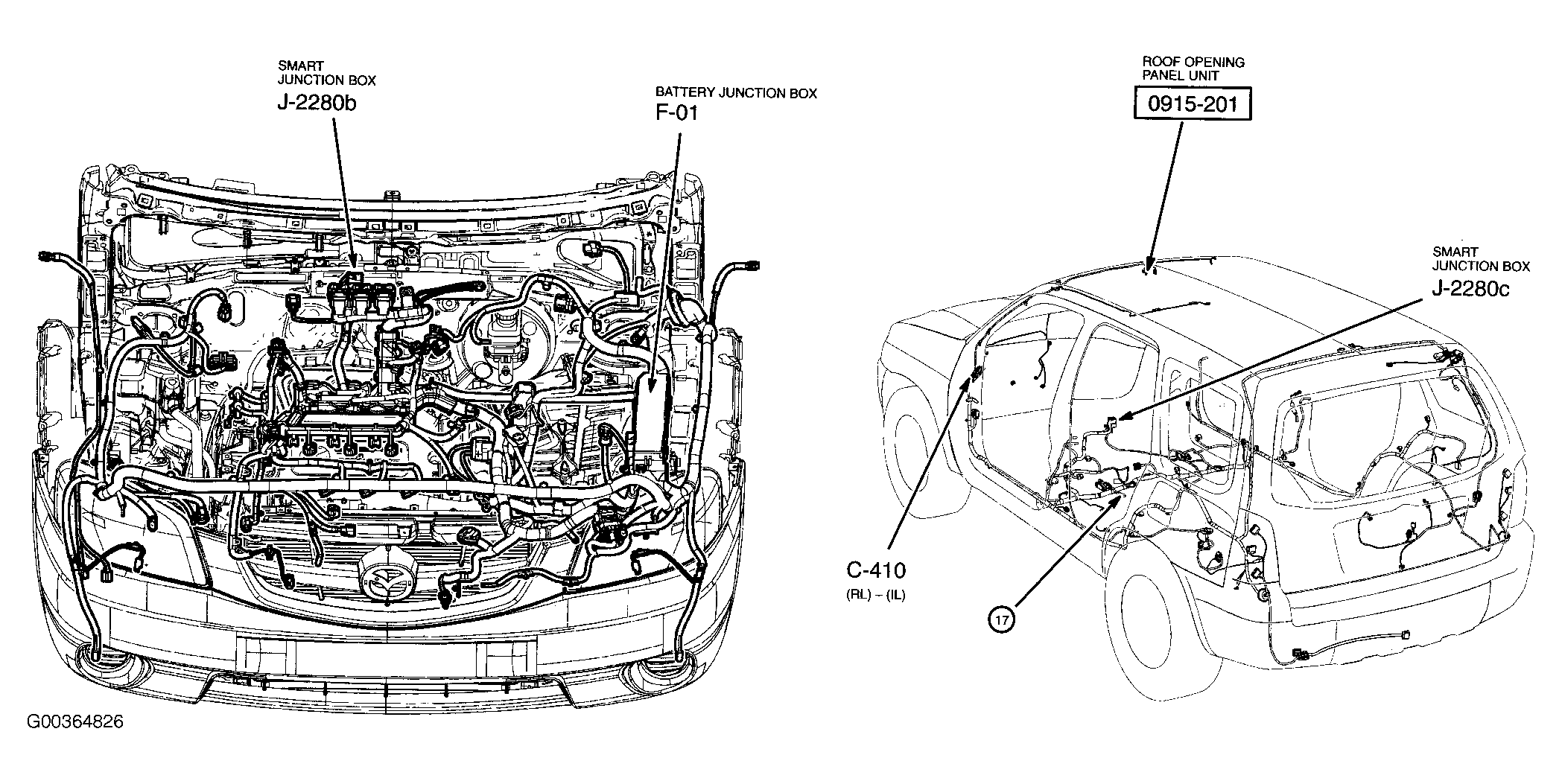

Fig 15: Vehicle Overview

G00364826

Courtesy of MAZDA MOTORS CORP.

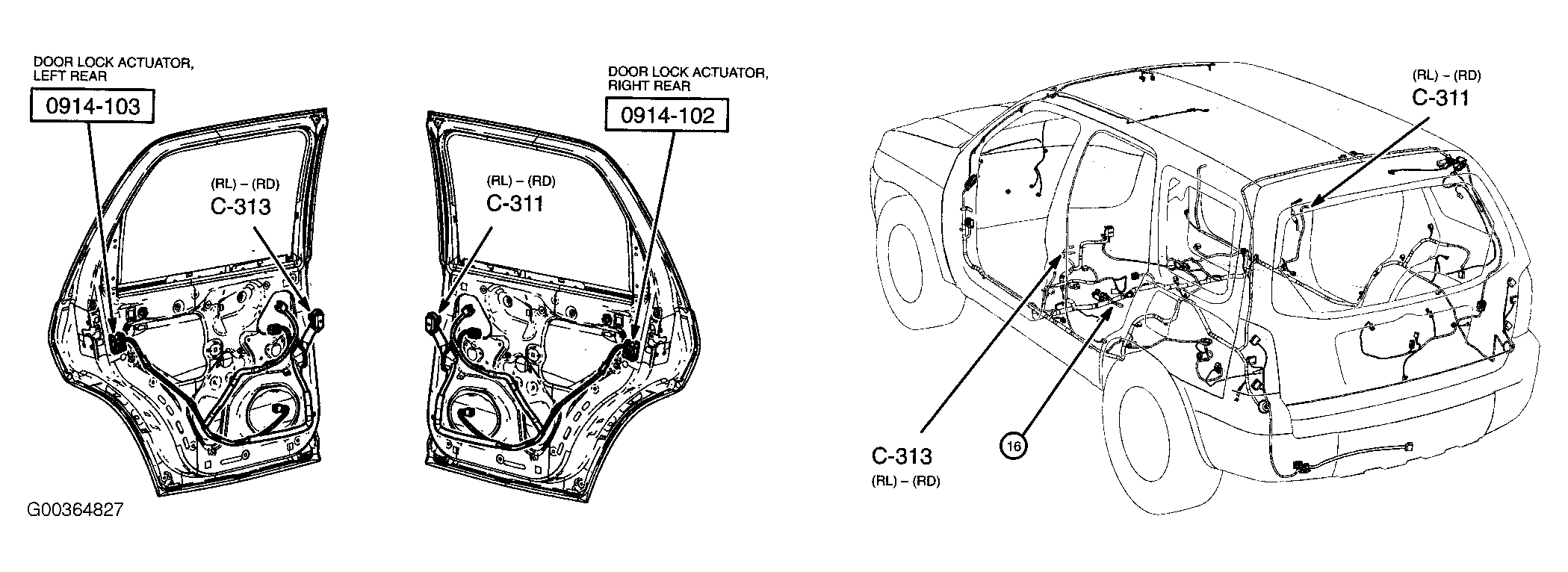

Fig 16: Rear Doors

G00364827

Courtesy of MAZDA MOTORS CORP.

Fig 17: Left Side Of Dash

G00364828

Courtesy of MAZDA MOTORS CORP.

Fig 18: Front Doors

G00364829

Courtesy of MAZDA MOTORS CORP.

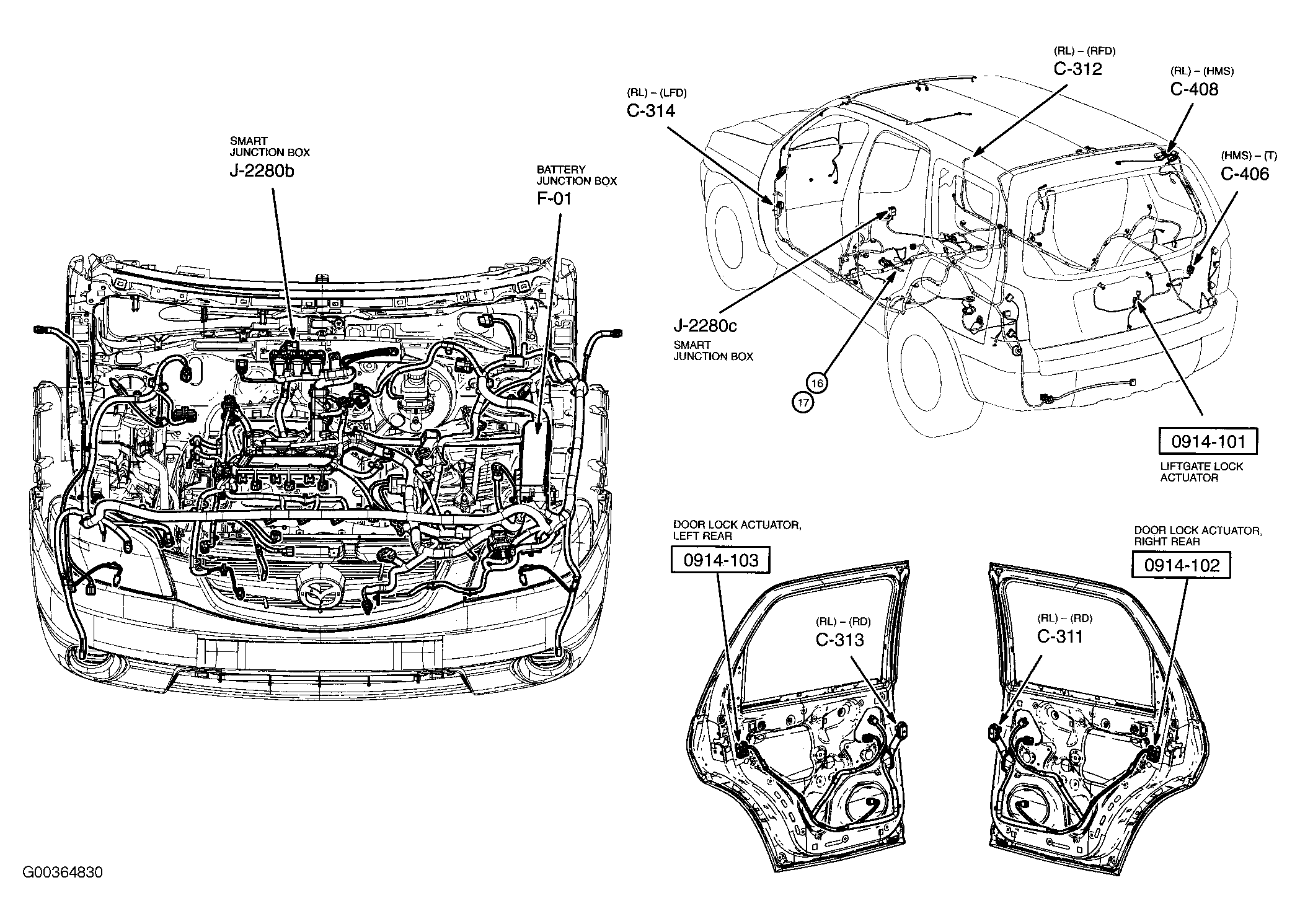

Fig 19: Left Rear Doors

G00364830

Courtesy of MAZDA MOTORS CORP.

Fig 20: Right Front Seat

G00364831

Courtesy of MAZDA MOTORS CORP.

Fig 21: Driver's Seat

G00364832

Courtesy of MAZDA MOTORS CORP.

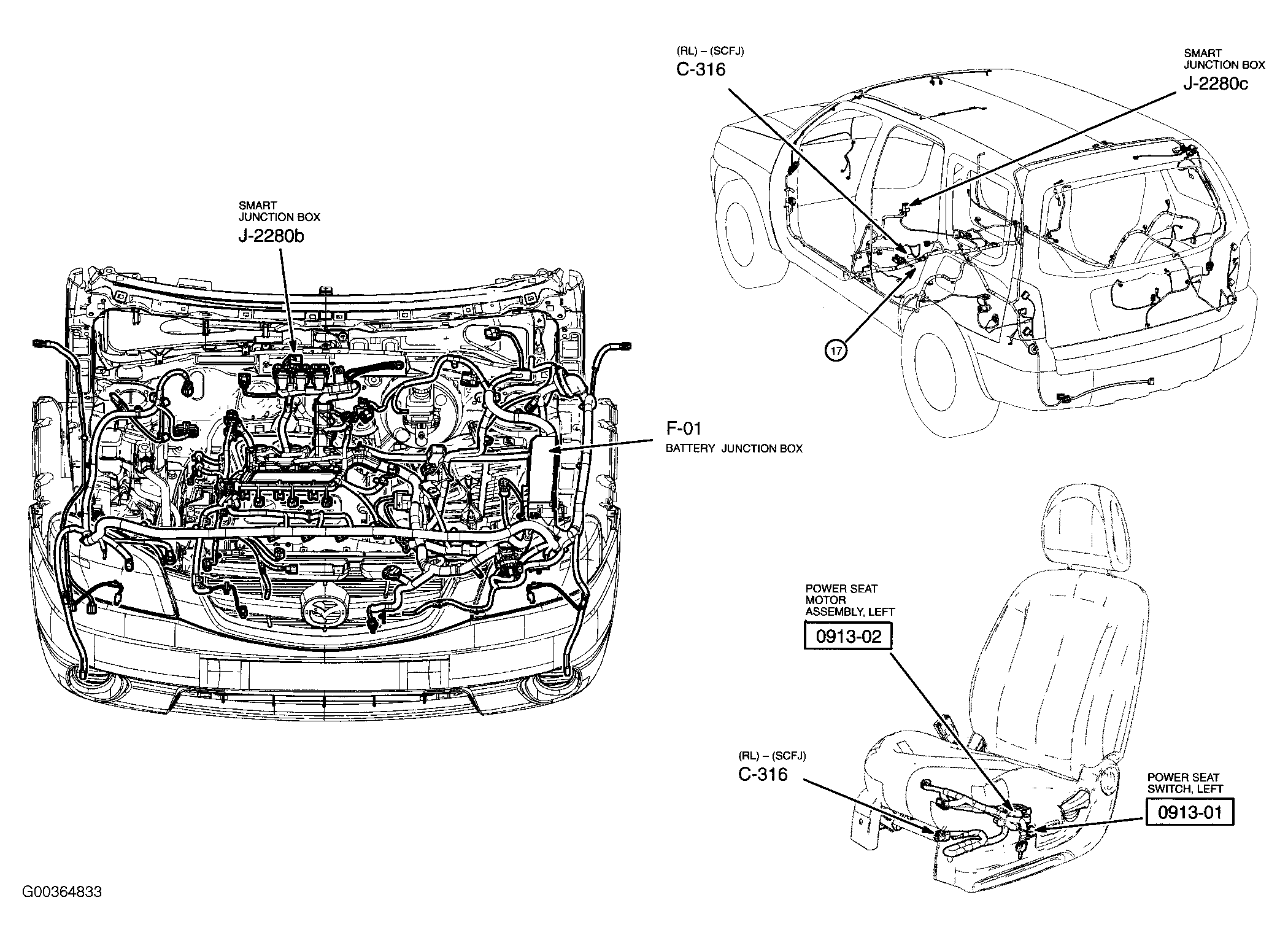

Fig 22: Driver's Seat

G00364833

Courtesy of MAZDA MOTORS CORP.

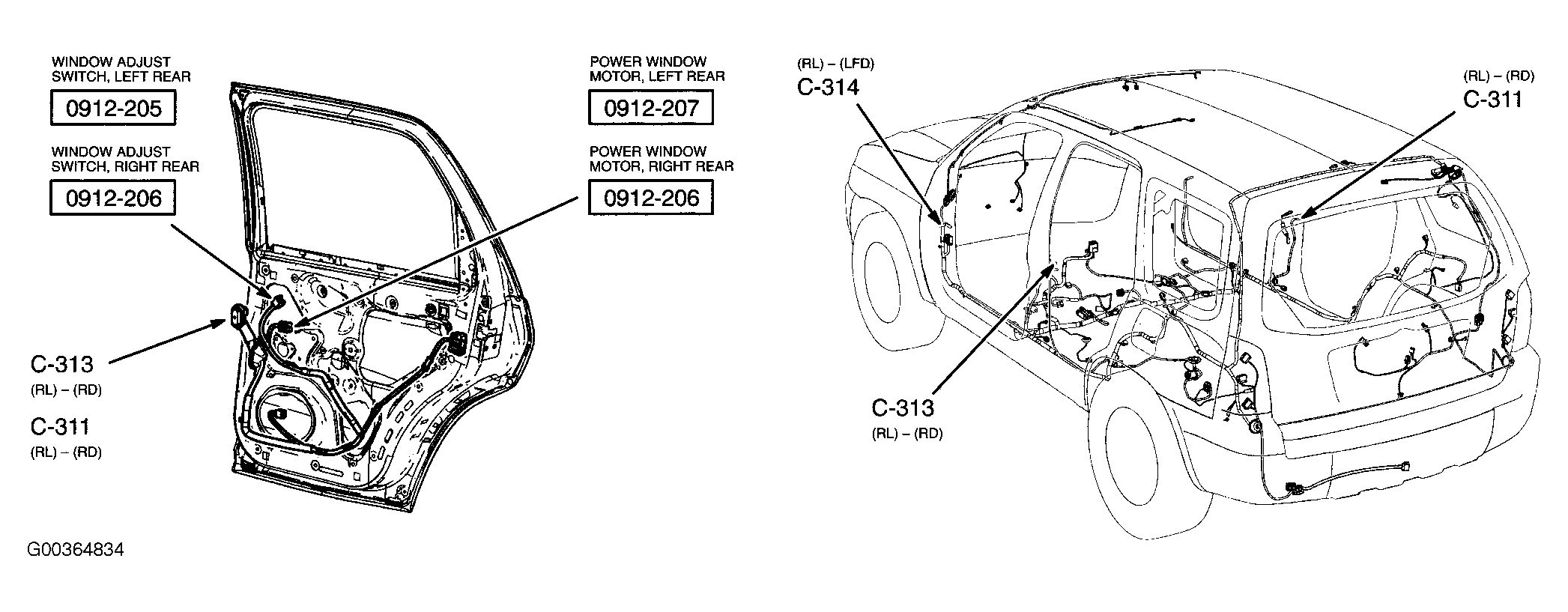

Fig 23: Right Rear Door

G00364834

Courtesy of MAZDA MOTORS CORP.

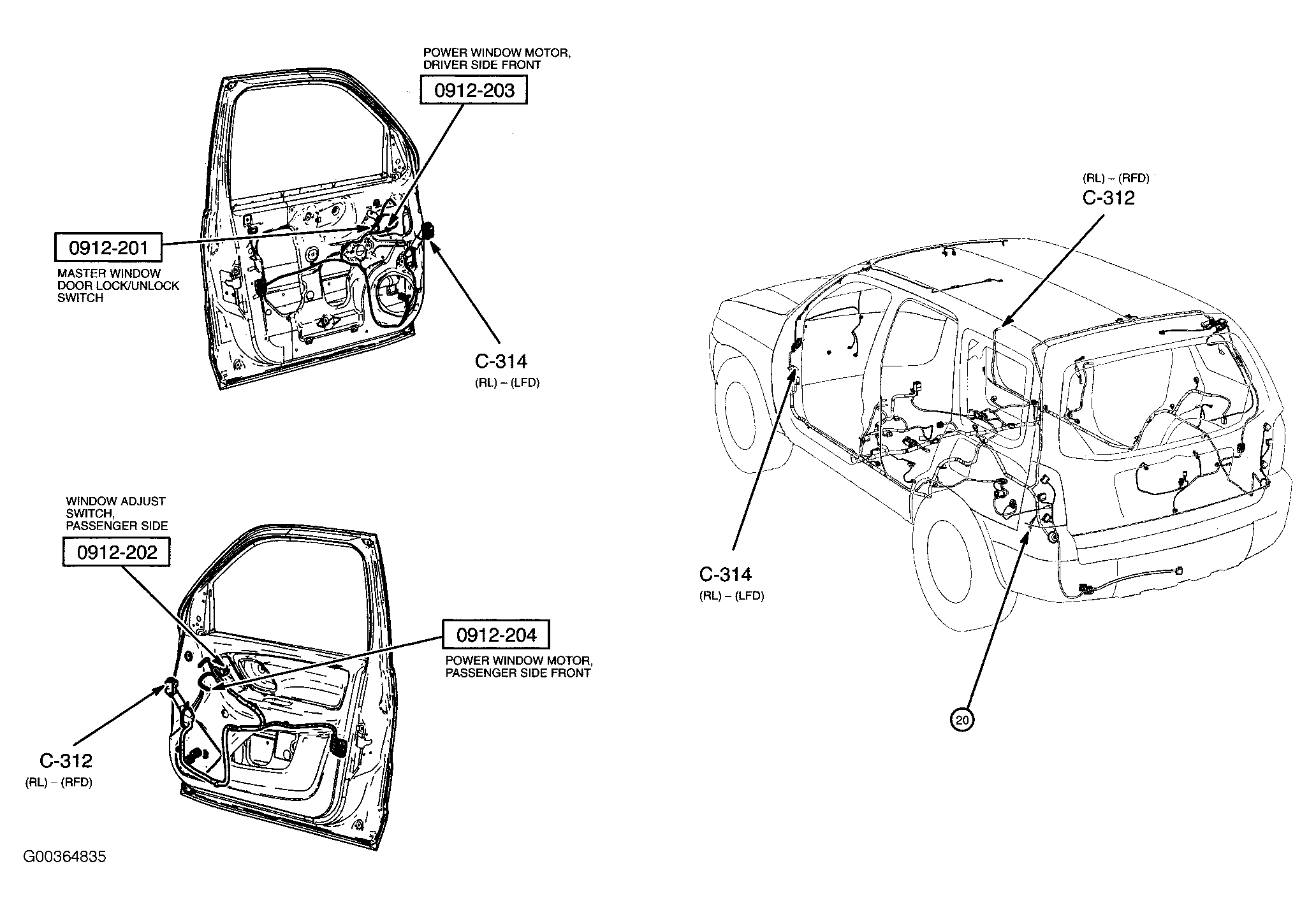

Fig 24: Front Doors

G00364835

Courtesy of MAZDA MOTORS CORP.

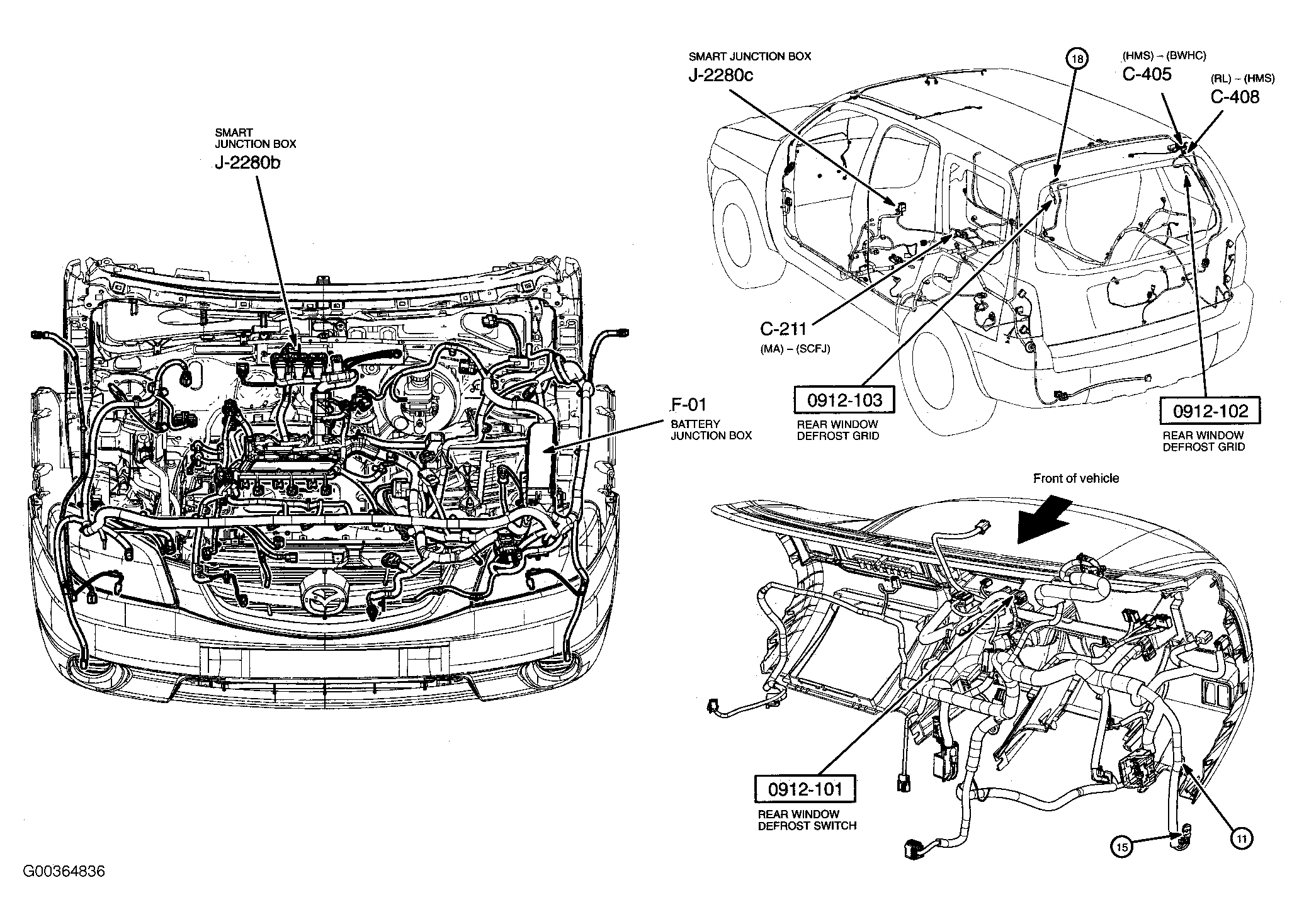

Fig 25: Vehicle Overview

G00364836

Courtesy of MAZDA MOTORS CORP.

Fig 26: Vehicle Overview

G00364837

Courtesy of MAZDA MOTORS CORP.

Fig 27: Vehicle Overview

G00364838

Courtesy of MAZDA MOTORS CORP.

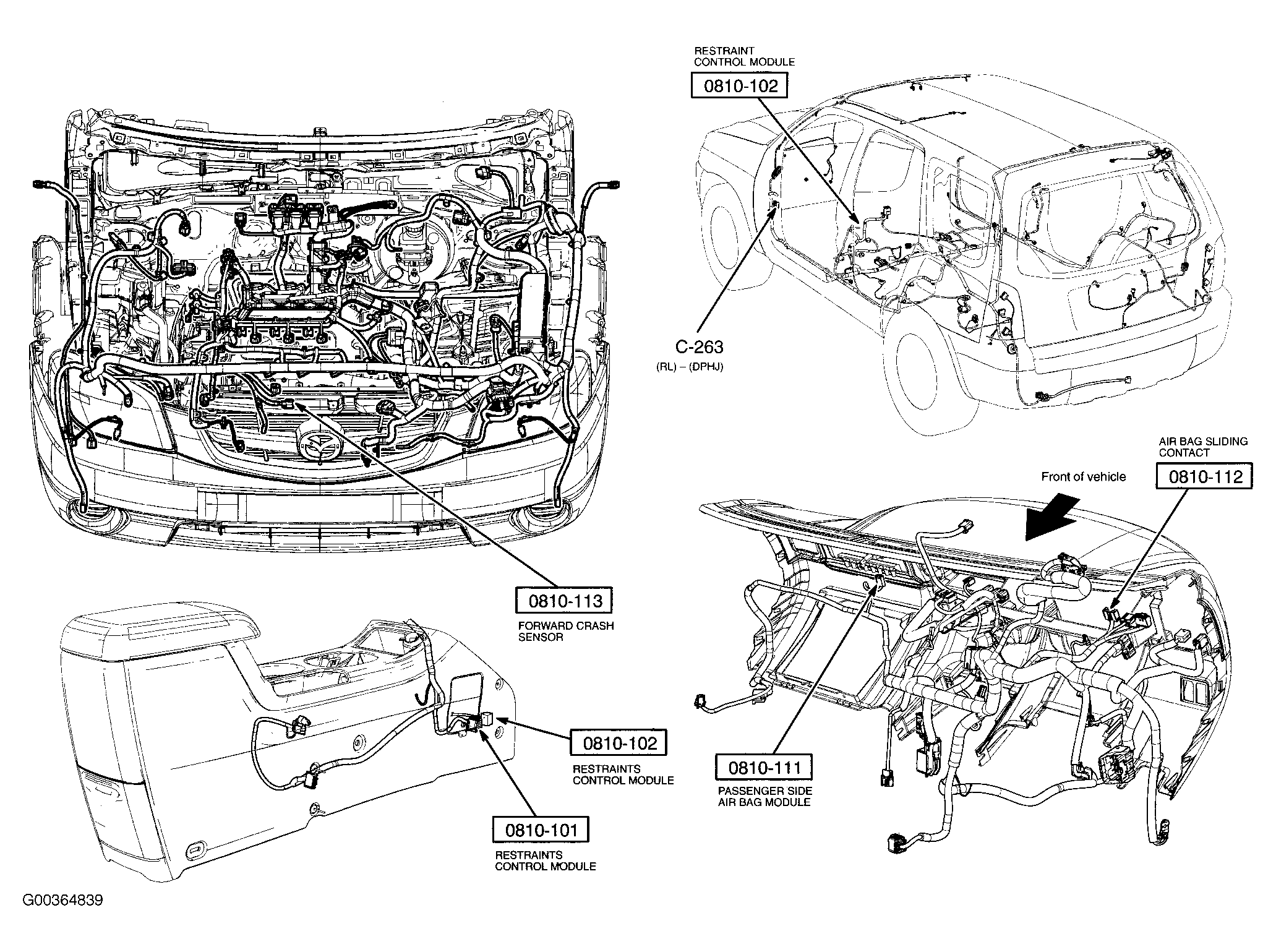

Fig 28: Vehicle Overview (3.0L)

G00364839

Courtesy of MAZDA MOTORS CORP.

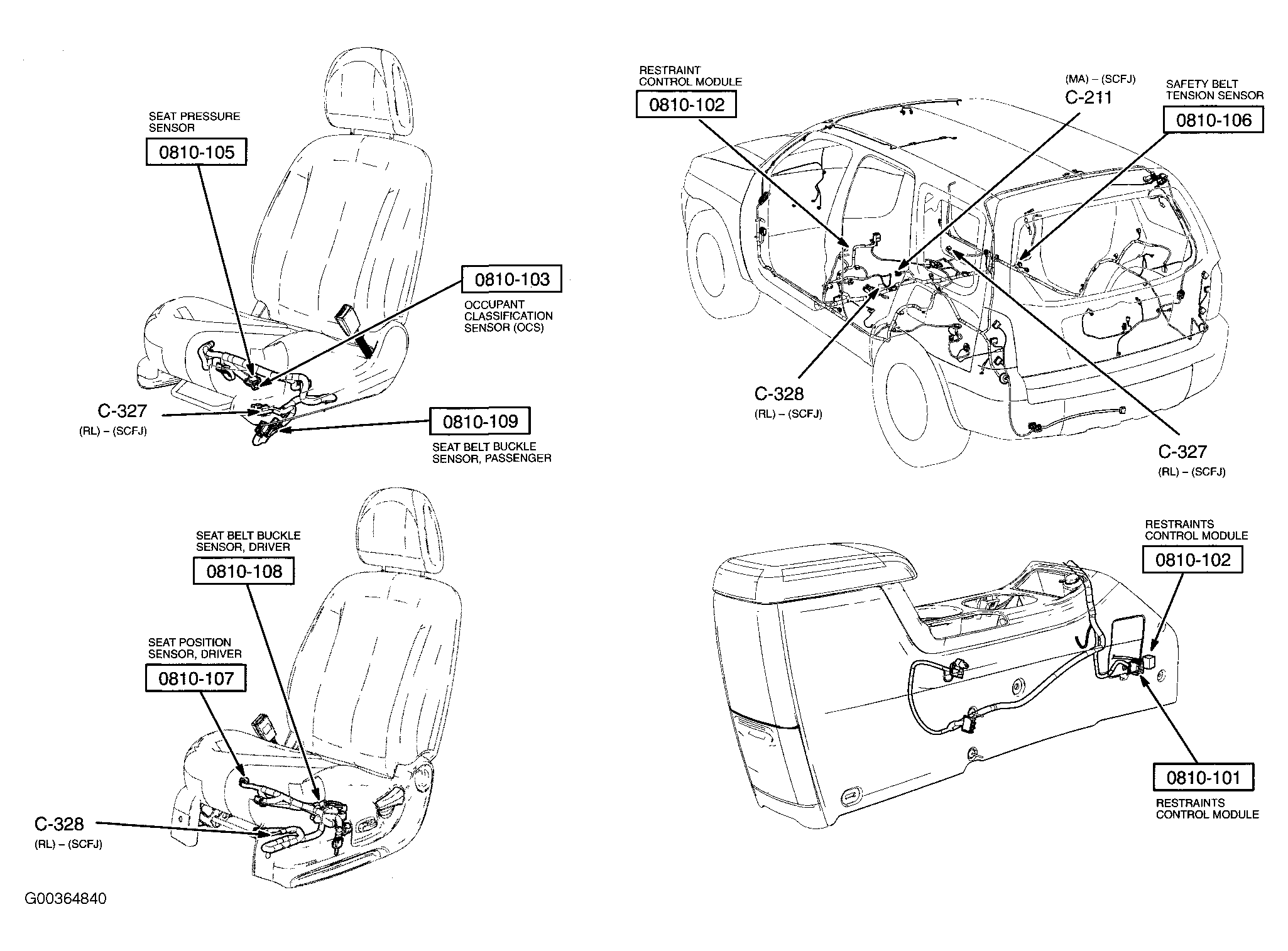

Fig 29: Front Seats

G00364840

Courtesy of MAZDA MOTORS CORP.

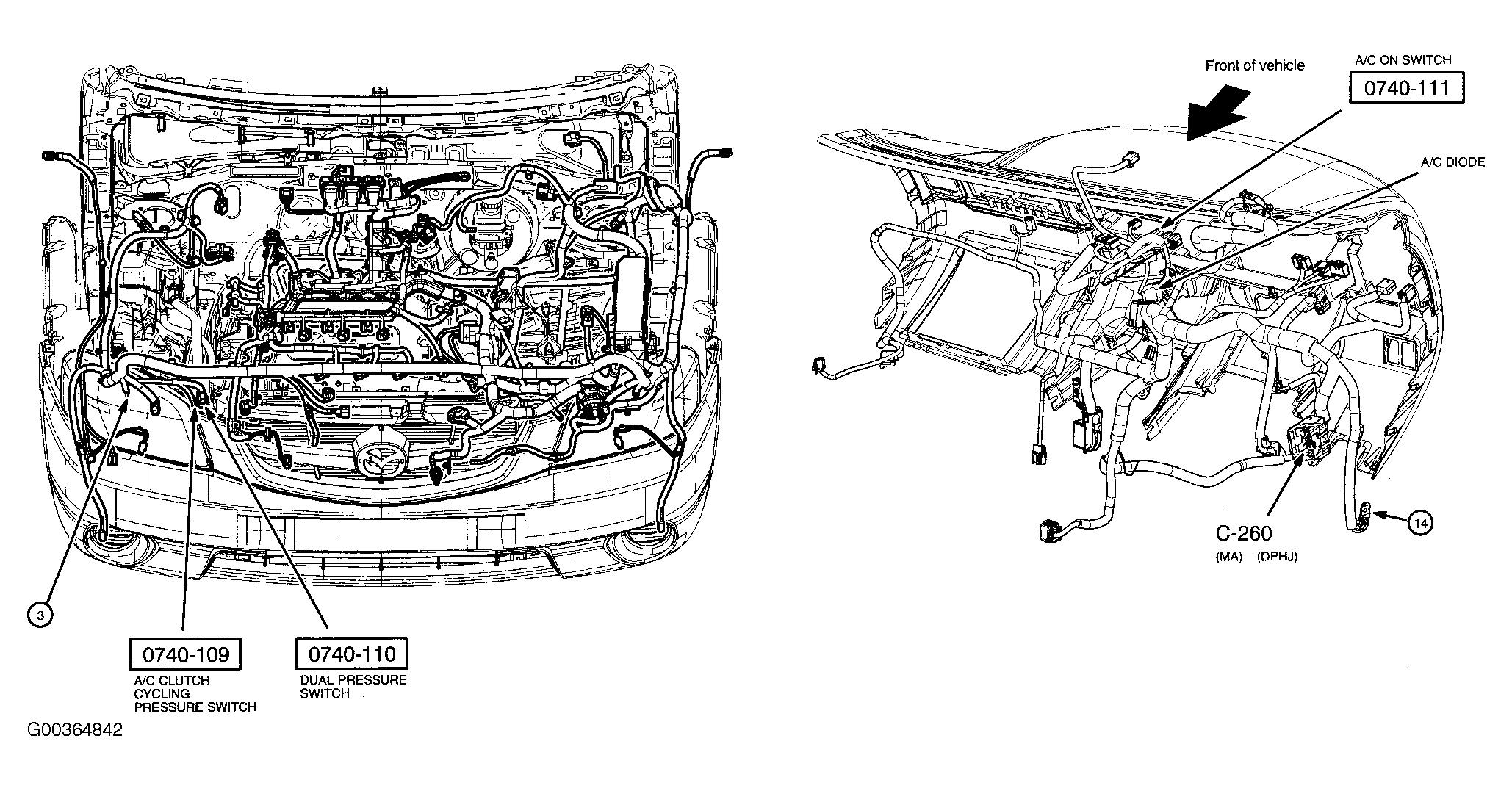

Fig 30: Vehicle Overview (3.0L)

G00364842

Courtesy of MAZDA MOTORS CORP.

Fig 31: Engine Compartment (3.0L)

G00364844

Courtesy of MAZDA MOTORS CORP.

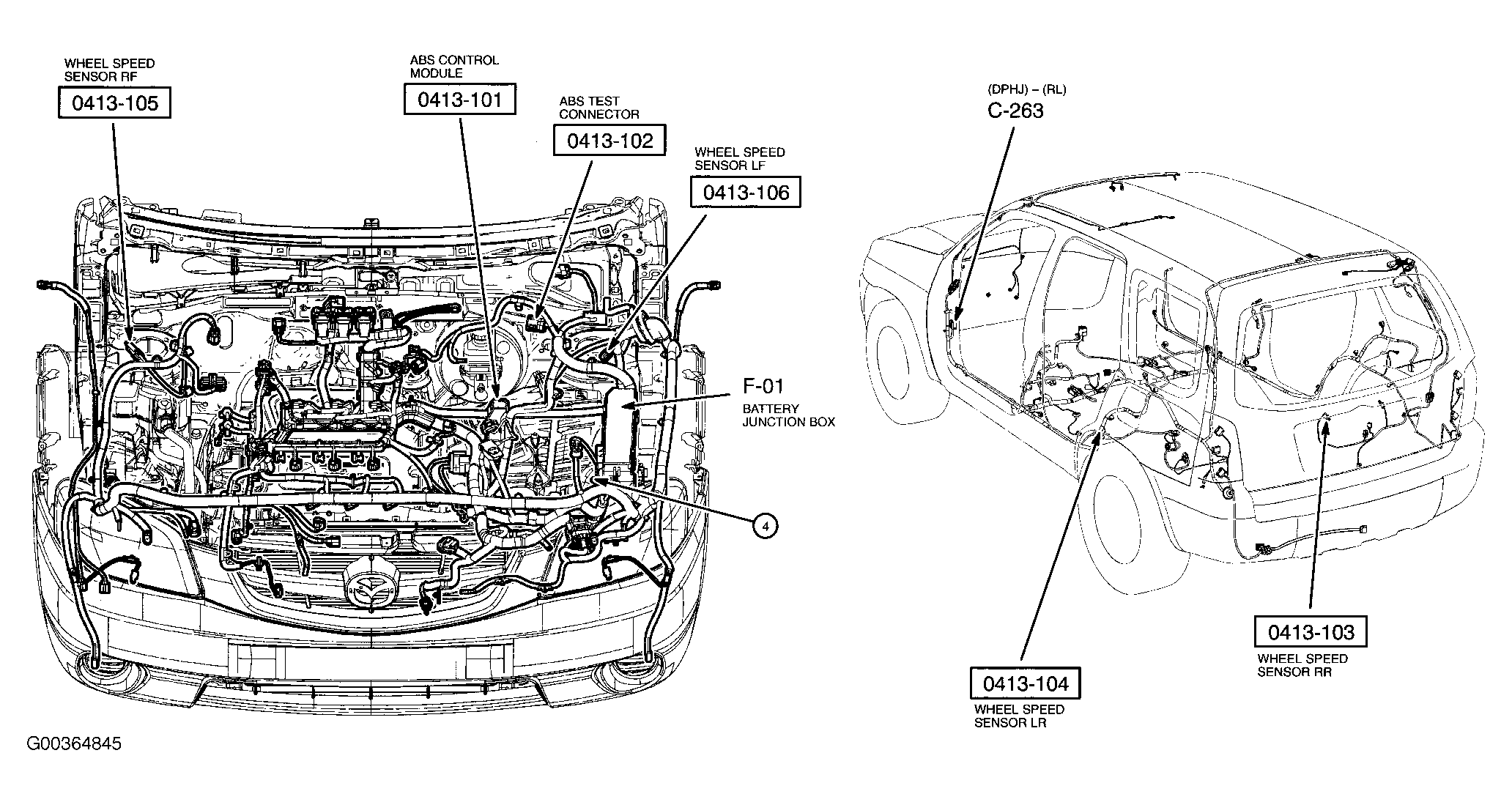

Fig 32: Vehicle Overview

G00364845

Courtesy of MAZDA MOTORS CORP.

Fig 33: Vehicle Overview (2.3L)

G00364846

Courtesy of MAZDA MOTORS CORP.

Fig 34: Engine Compartment (3.0L)

G00364847

Courtesy of MAZDA MOTORS CORP.

Fig 35: Engine Compartment (3.0L)

G00364848

Courtesy of MAZDA MOTORS CORP.

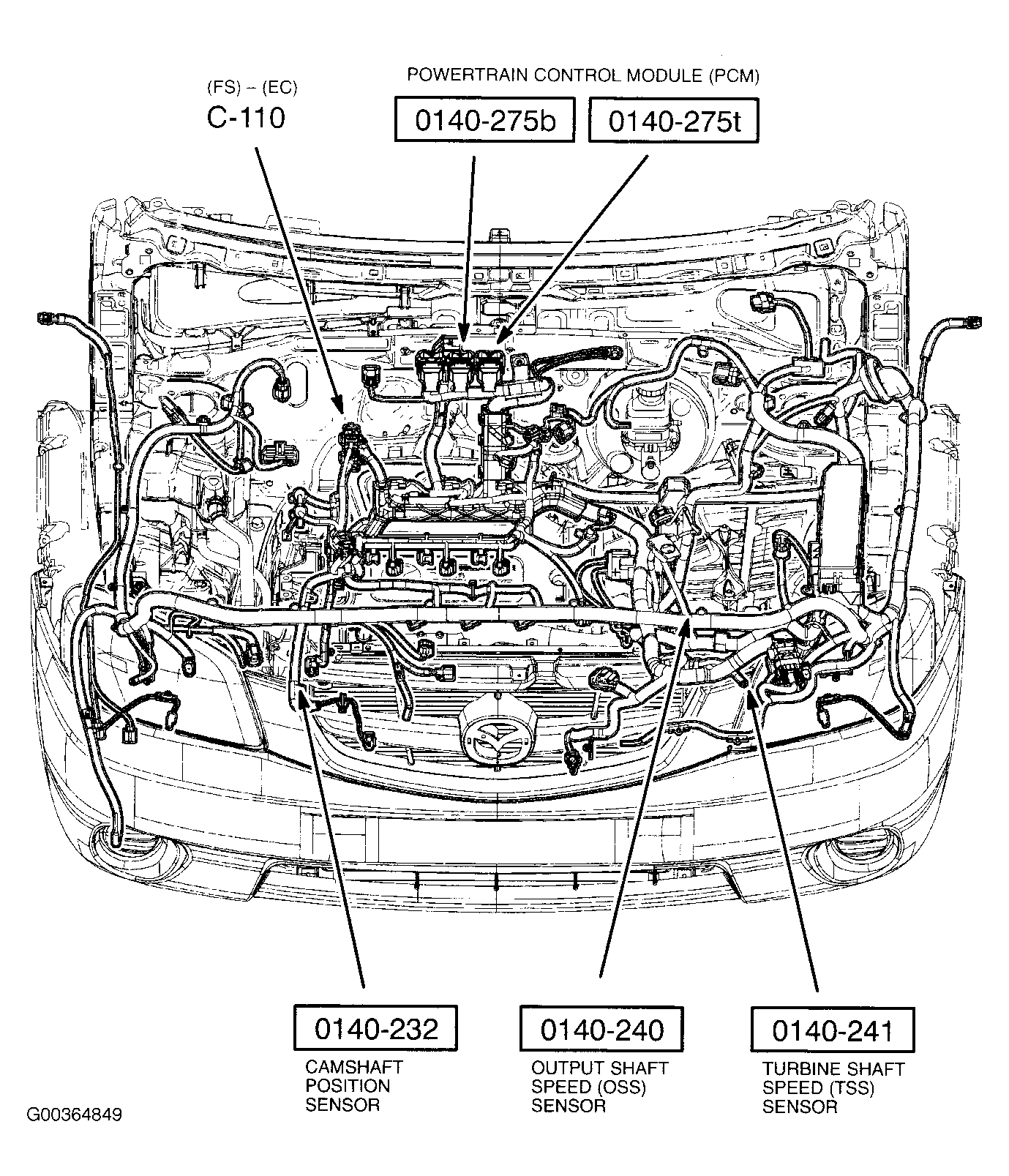

Fig 36: Engine Compartment (3.0L)

G00364849

Courtesy of MAZDA MOTORS CORP.

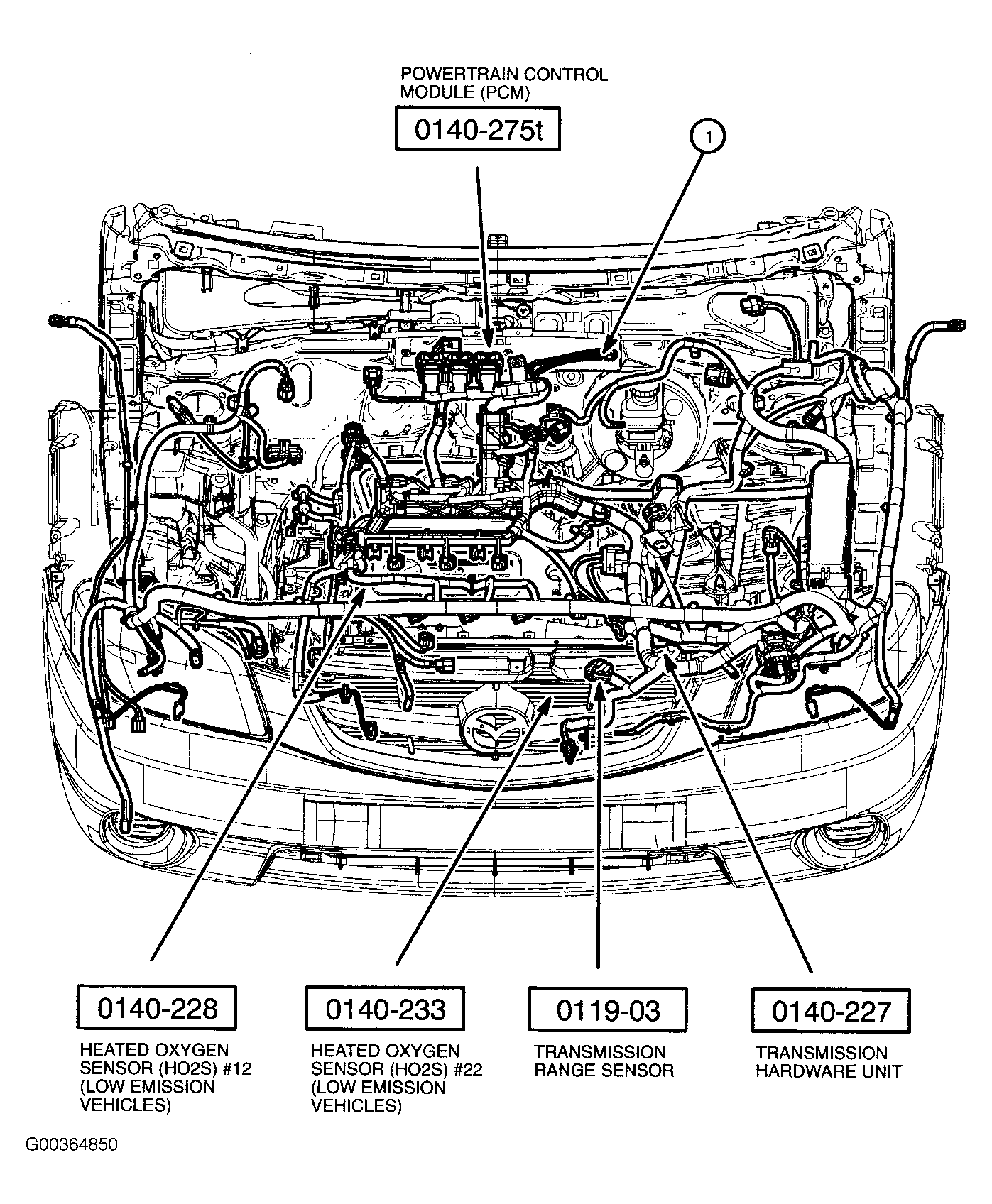

Fig 37: Engine Compartment (3.0L)

G00364850

Courtesy of MAZDA MOTORS CORP.

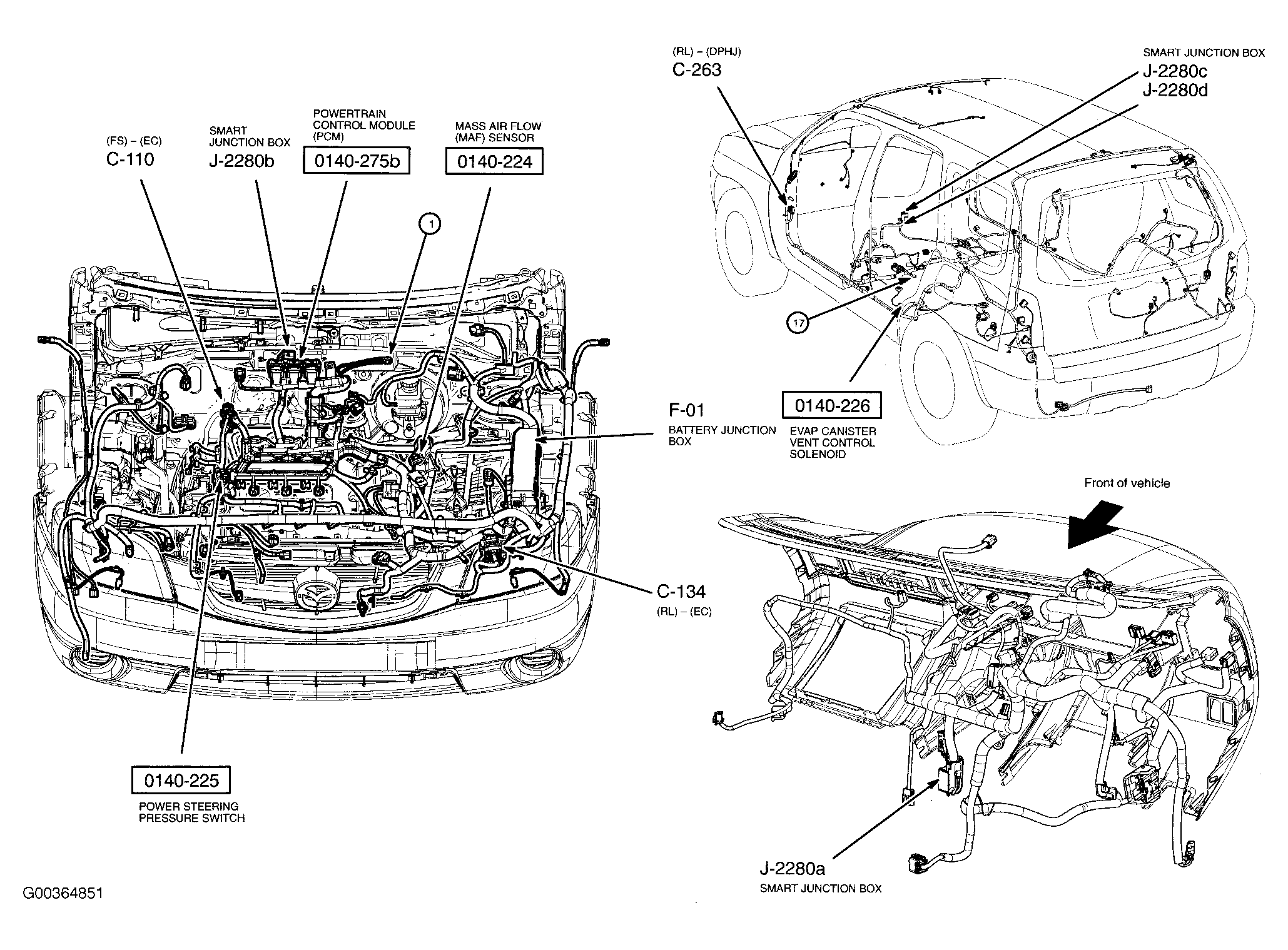

Fig 38: Vehicle Overview

G00364851

Courtesy of MAZDA MOTORS CORP.

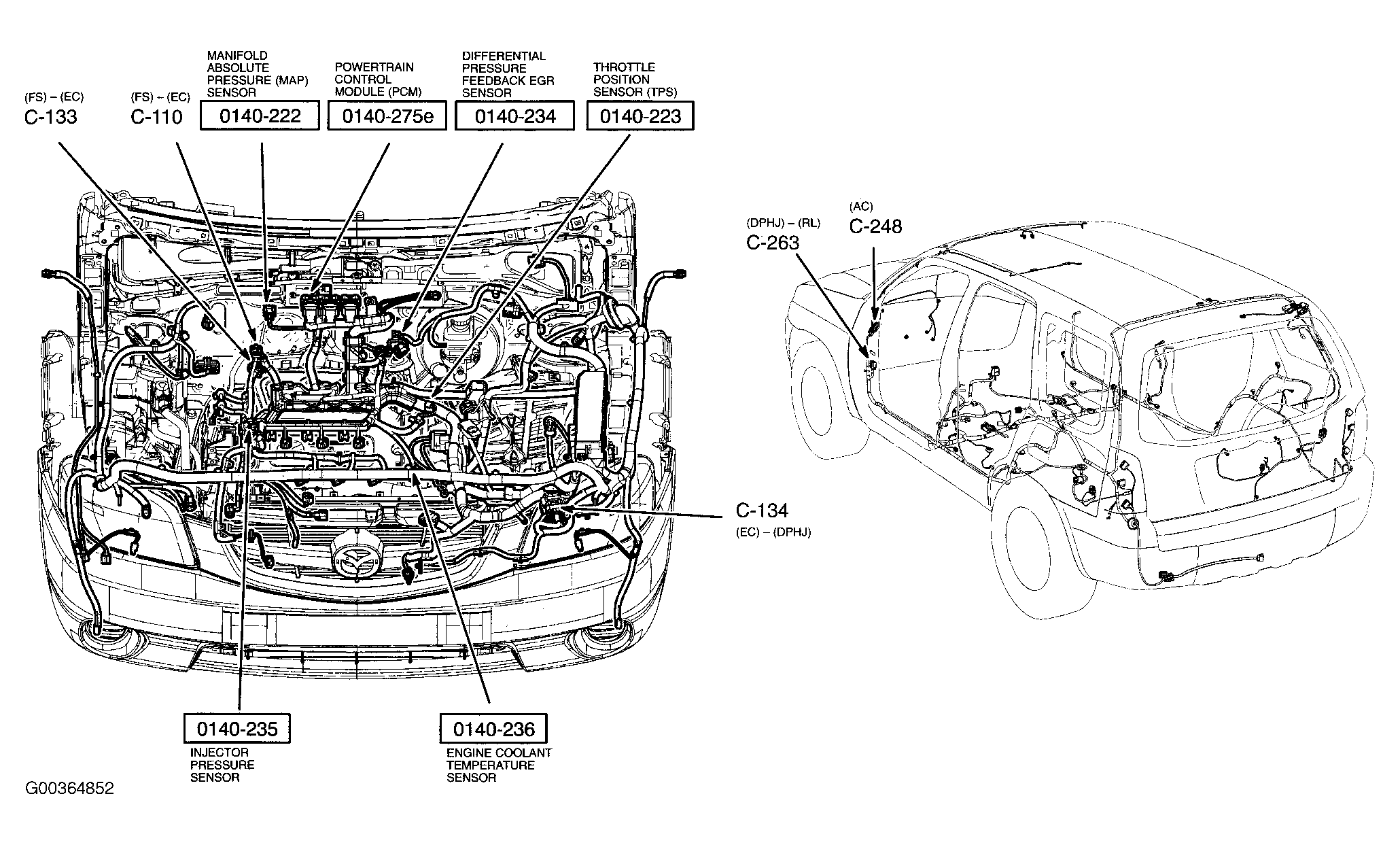

Fig 39: Vehicle Overview

G00364852

Courtesy of MAZDA MOTORS CORP.

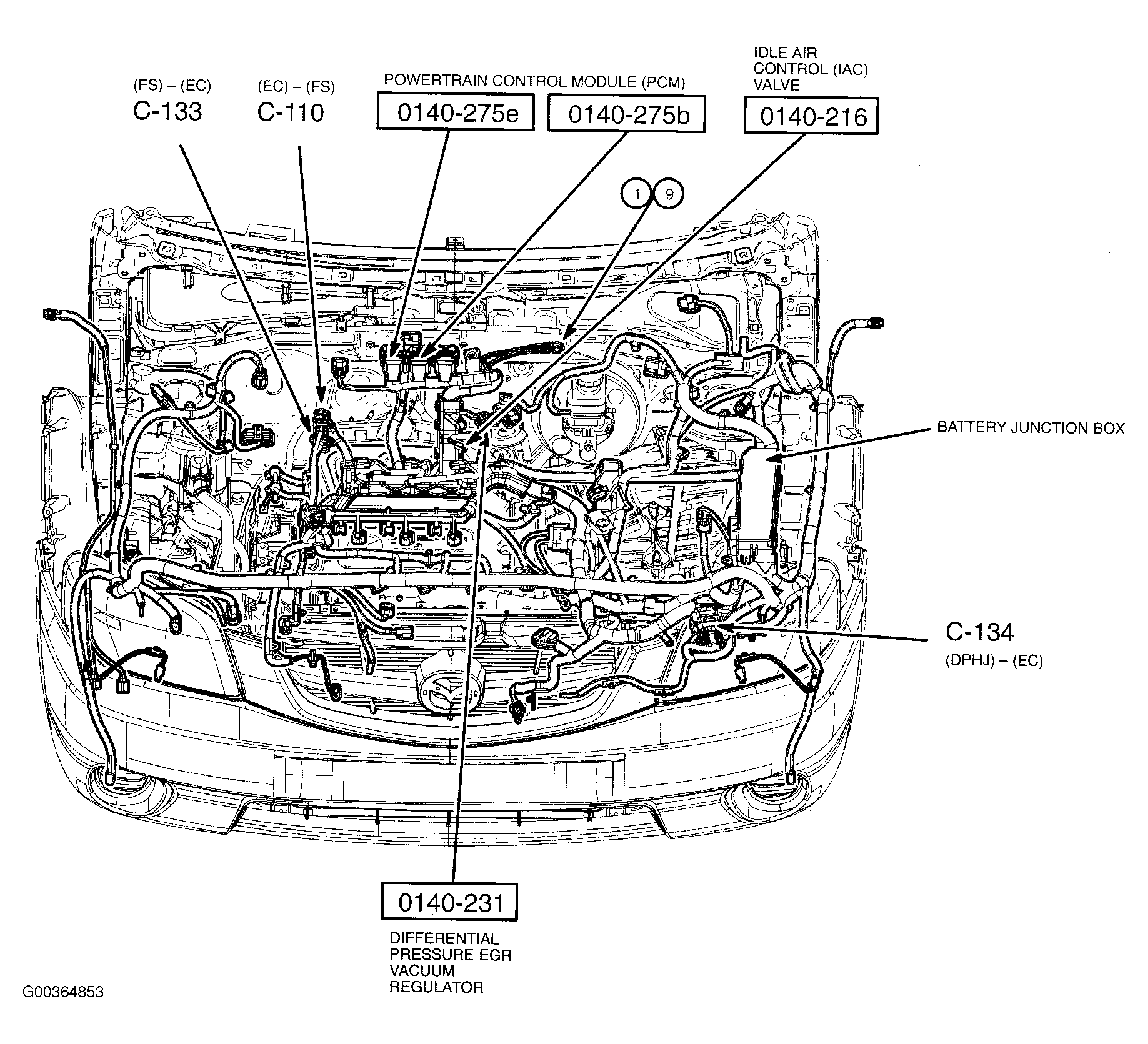

Fig 40: Engine Compartment (3.0L)

G00364853

Courtesy of MAZDA MOTORS CORP.

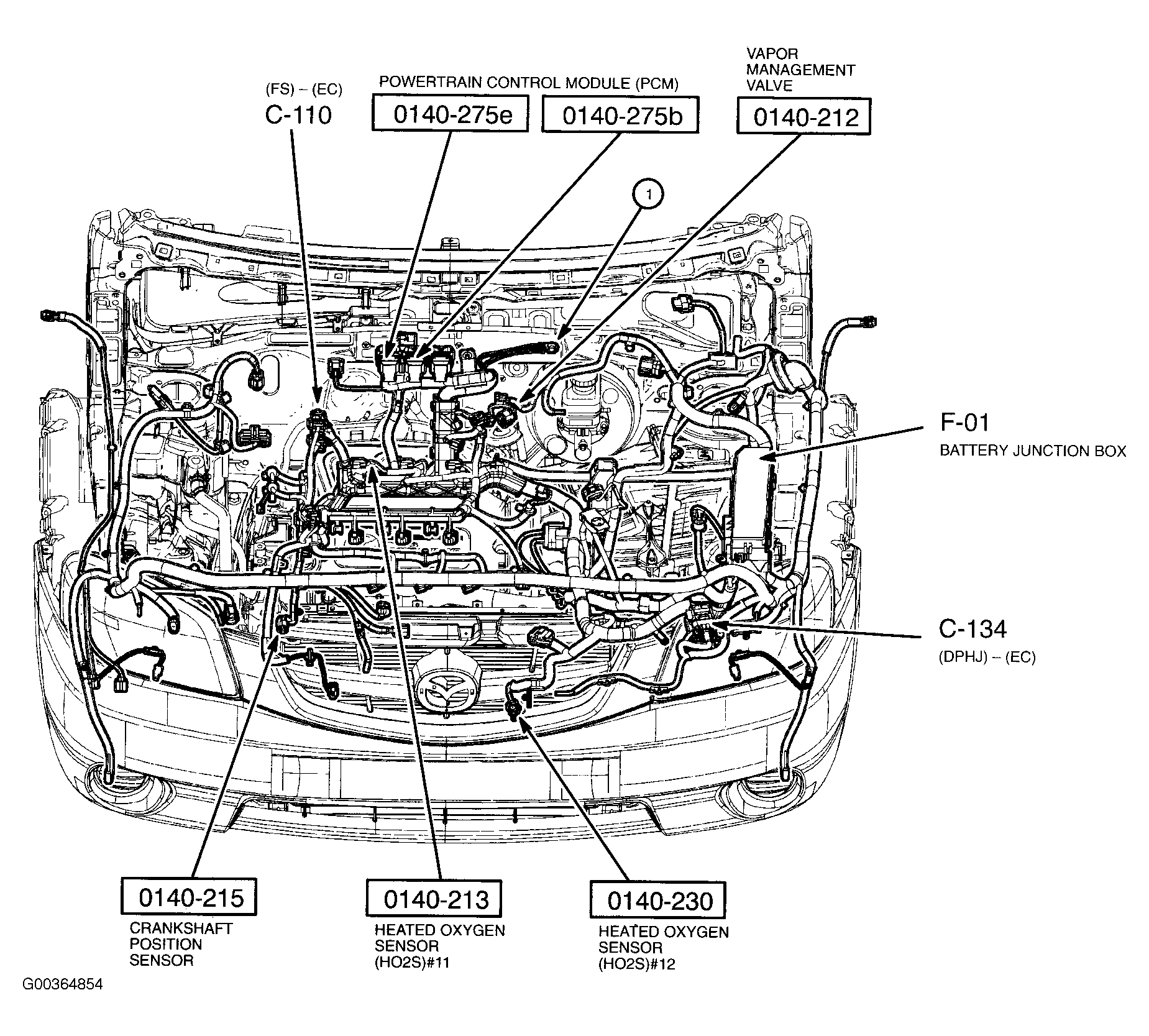

Fig 41: Engine Compartment (3.0L)

G00364854

Courtesy of MAZDA MOTORS CORP.

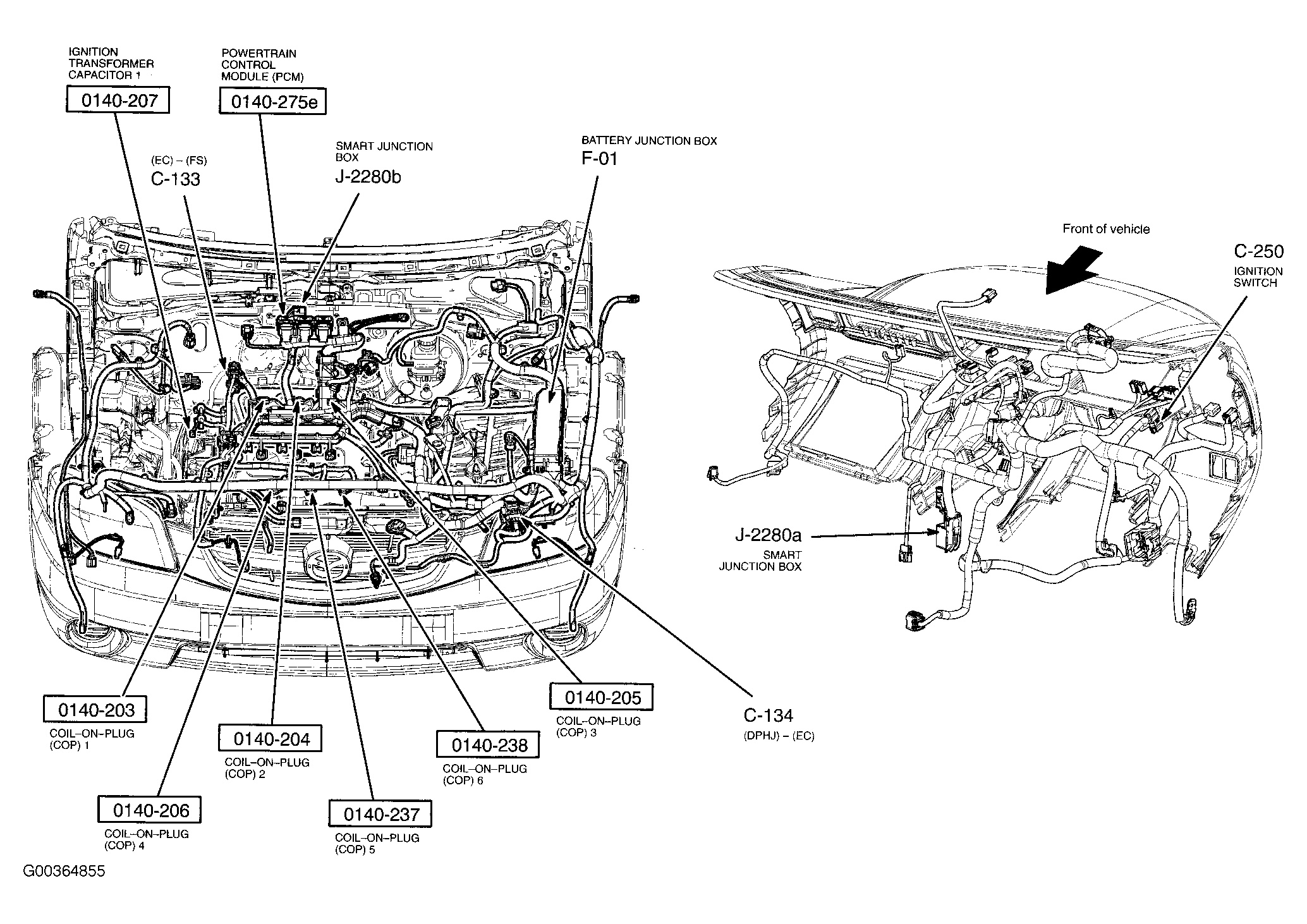

Fig 42: Engine Compartment (3.0L)

G00364855

Courtesy of MAZDA MOTORS CORP.

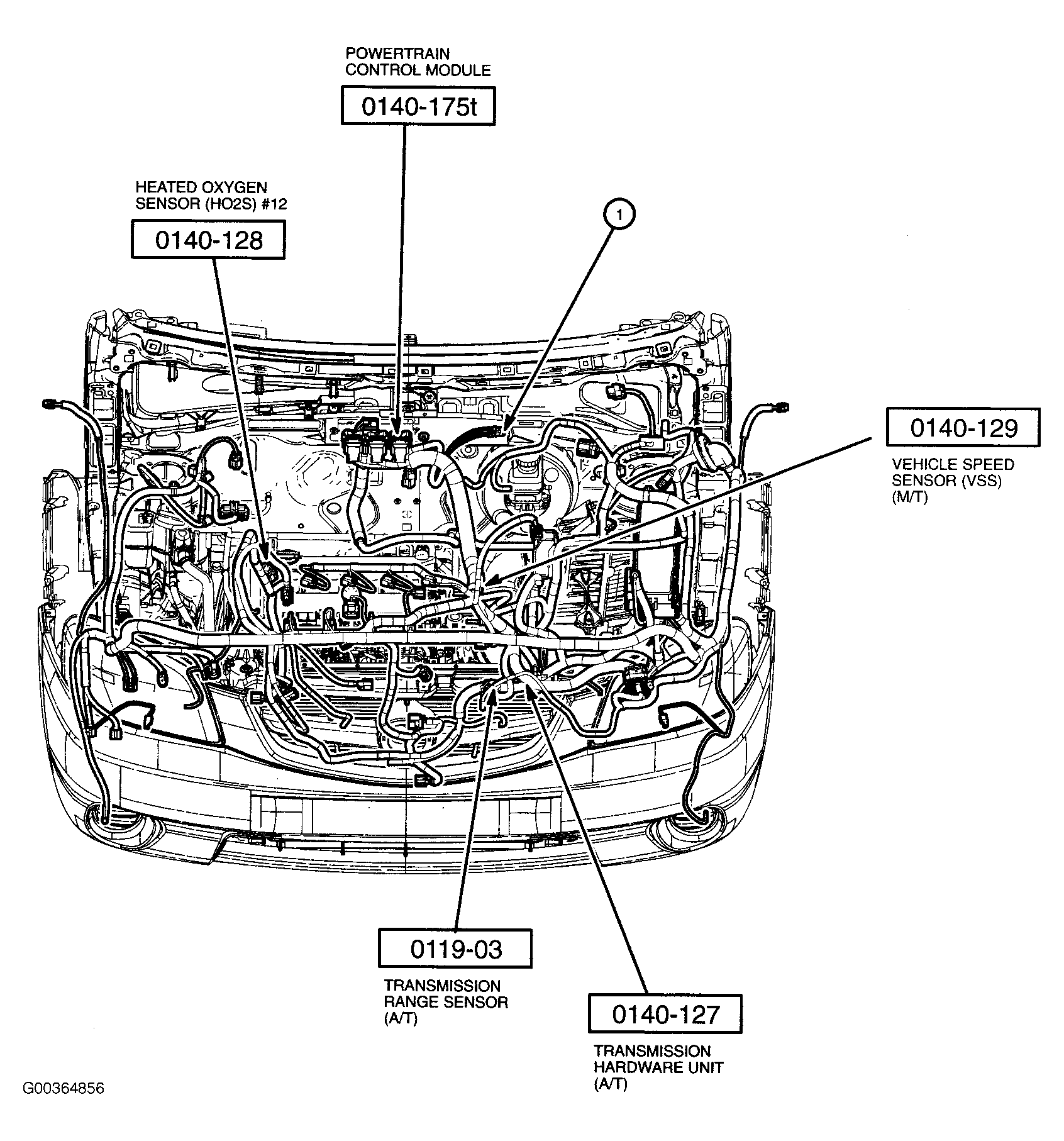

Fig 43: Engine Compartment

G00364856

Courtesy of MAZDA MOTORS CORP.

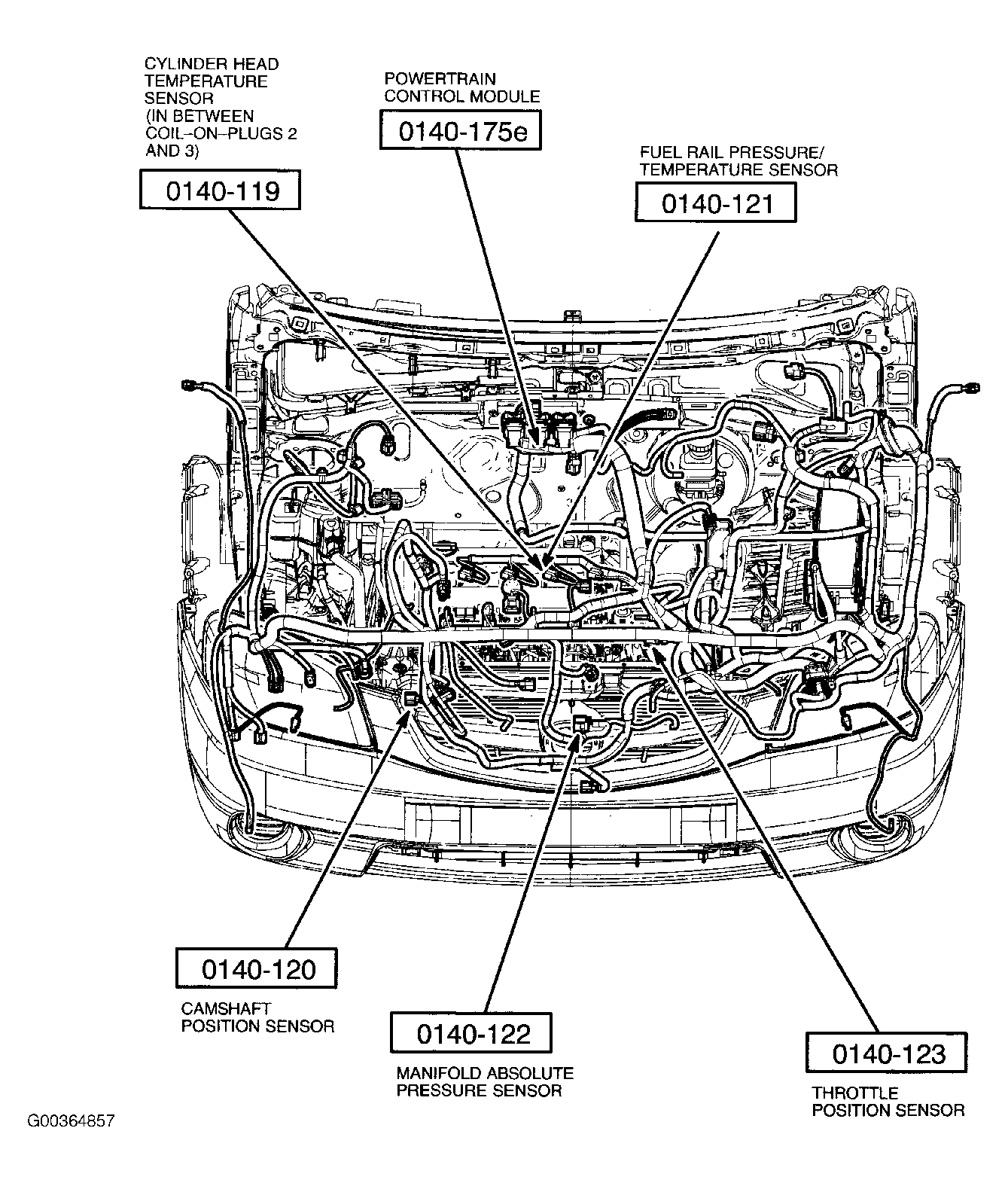

Fig 44: Engine Compartment (2.3L)

G00364857

Courtesy of MAZDA MOTORS CORP.

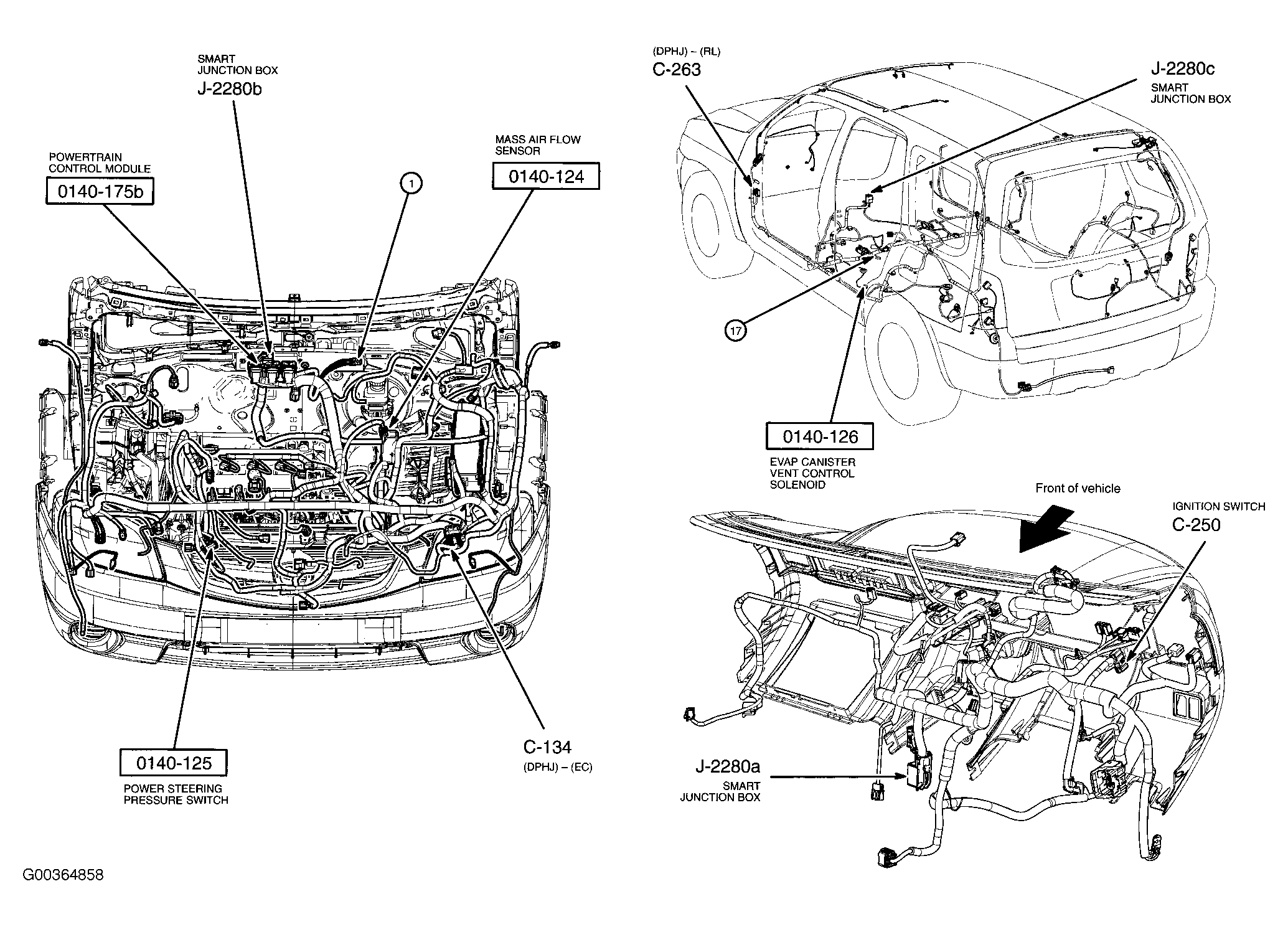

Fig 45: Vehicle Overview (2.3L)

G00364858

Courtesy of MAZDA MOTORS CORP.

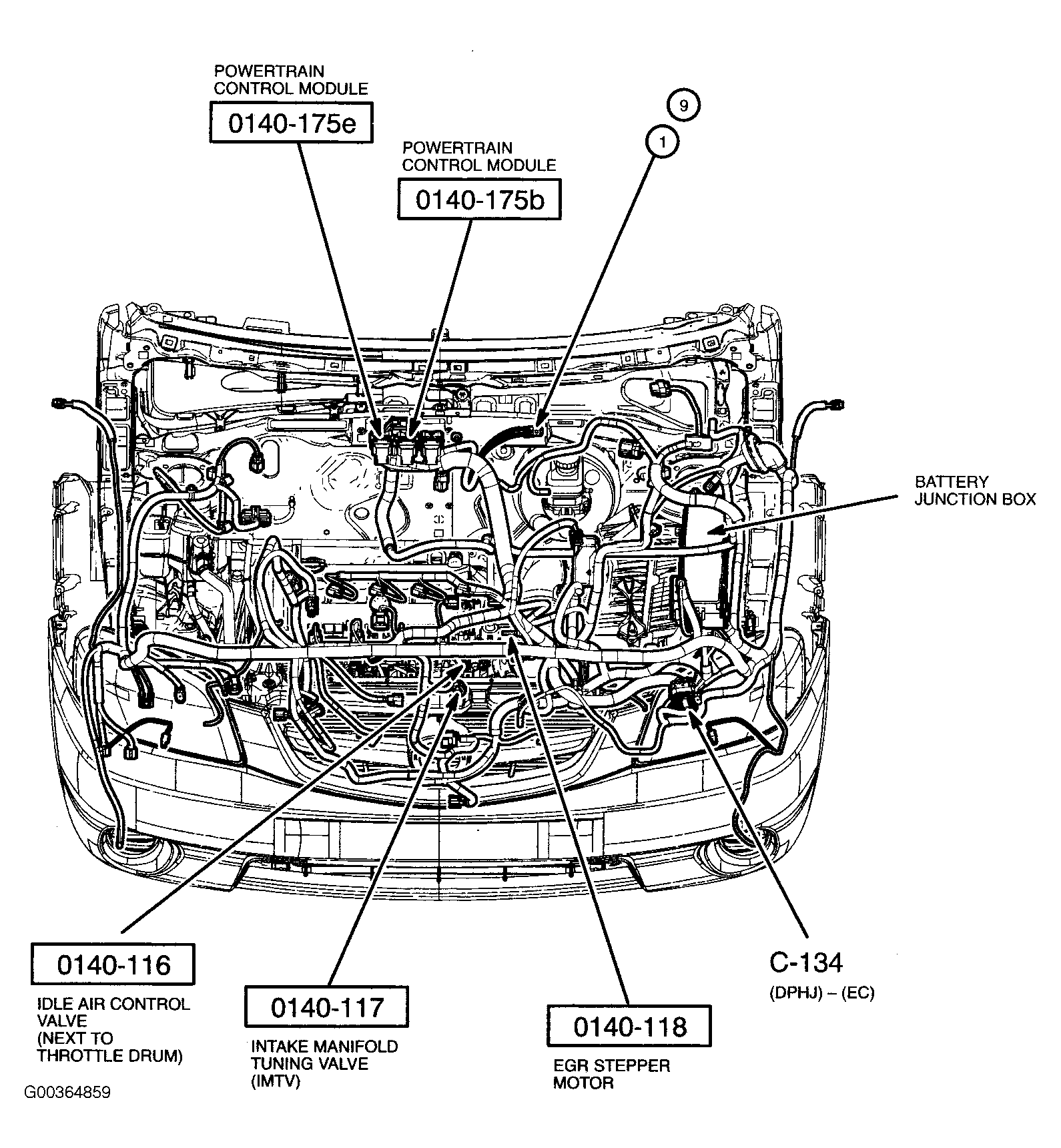

Fig 46: Engine Compartment (2.3L)

G00364859

Courtesy of MAZDA MOTORS CORP.

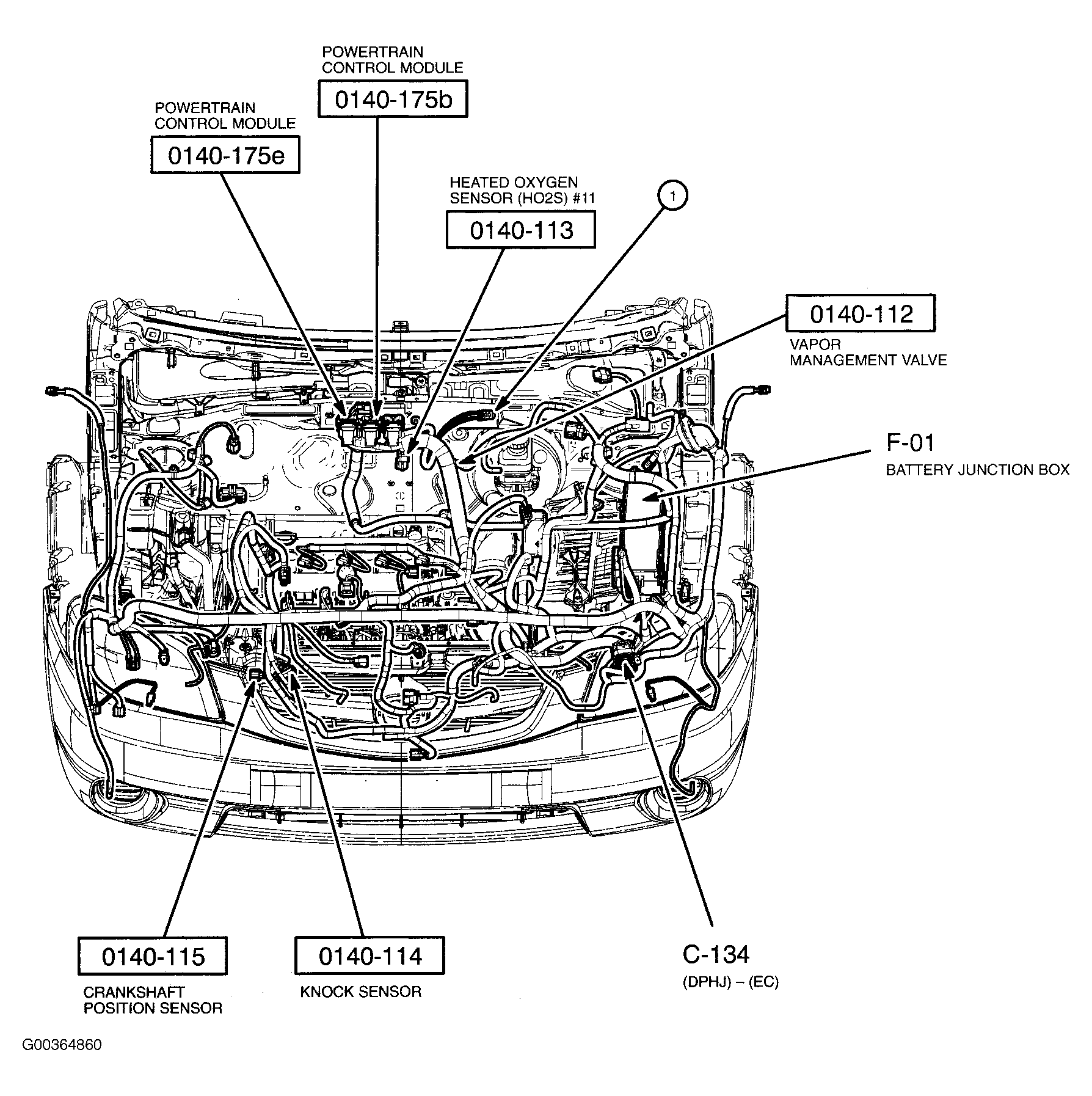

Fig 47: Engine Compartment (2.3L)

G00364860

Courtesy of MAZDA MOTORS CORP.

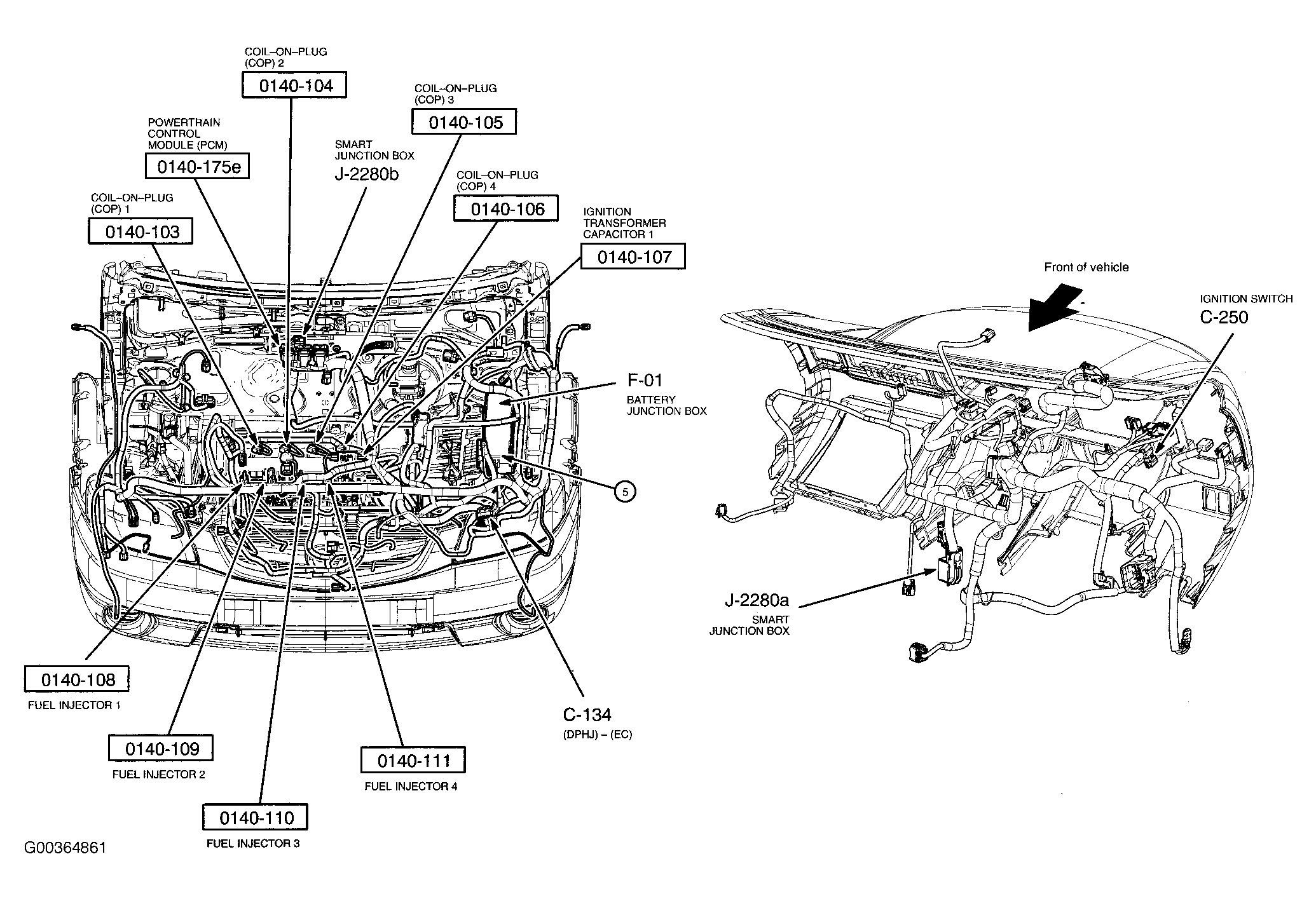

Fig 48: Engine Compartment (2.3L)

G00364861

Courtesy of MAZDA MOTORS CORP.

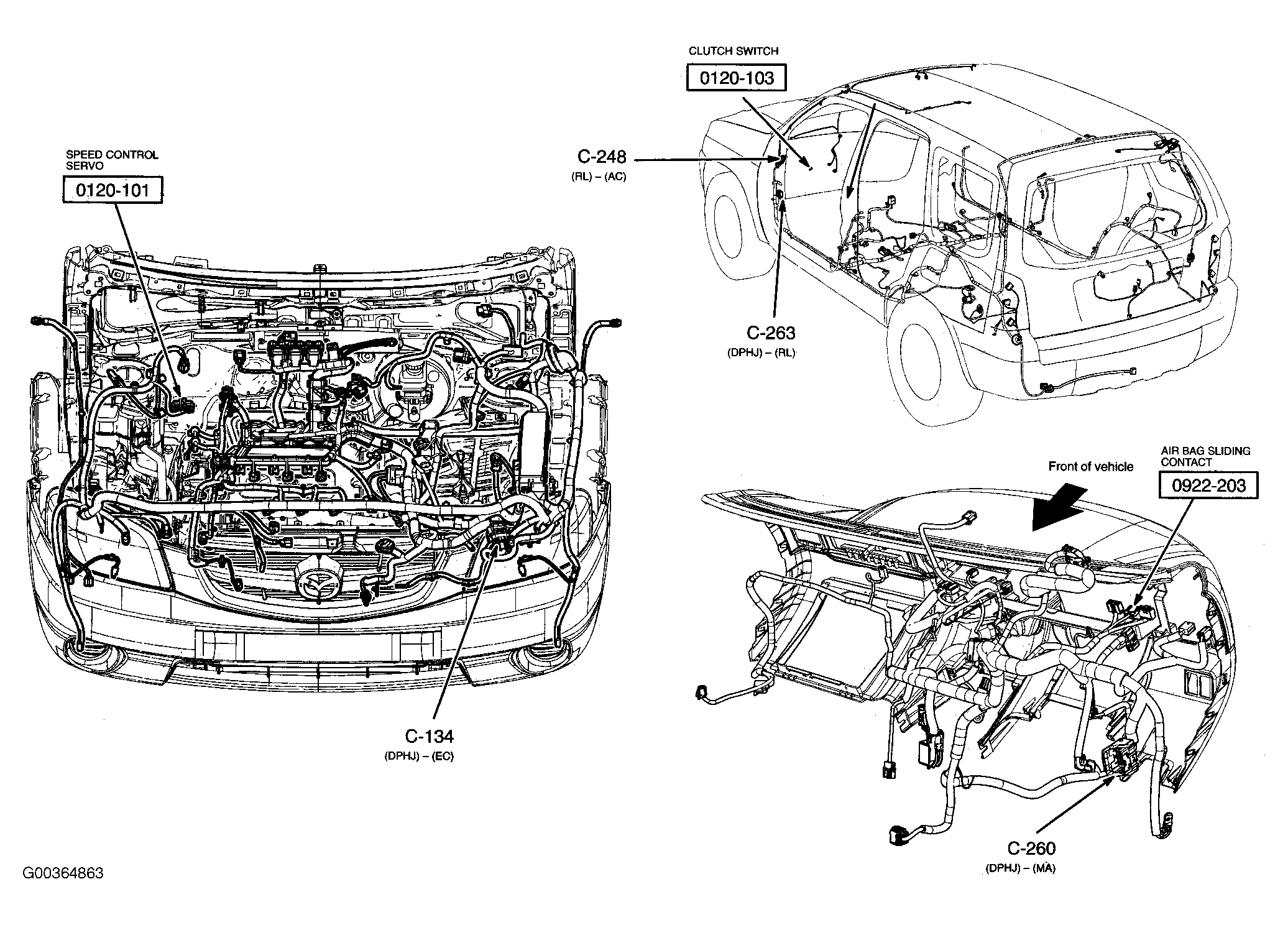

Fig 49: Vehicle Overview (3.0L)

G00364863

Courtesy of MAZDA MOTORS CORP.

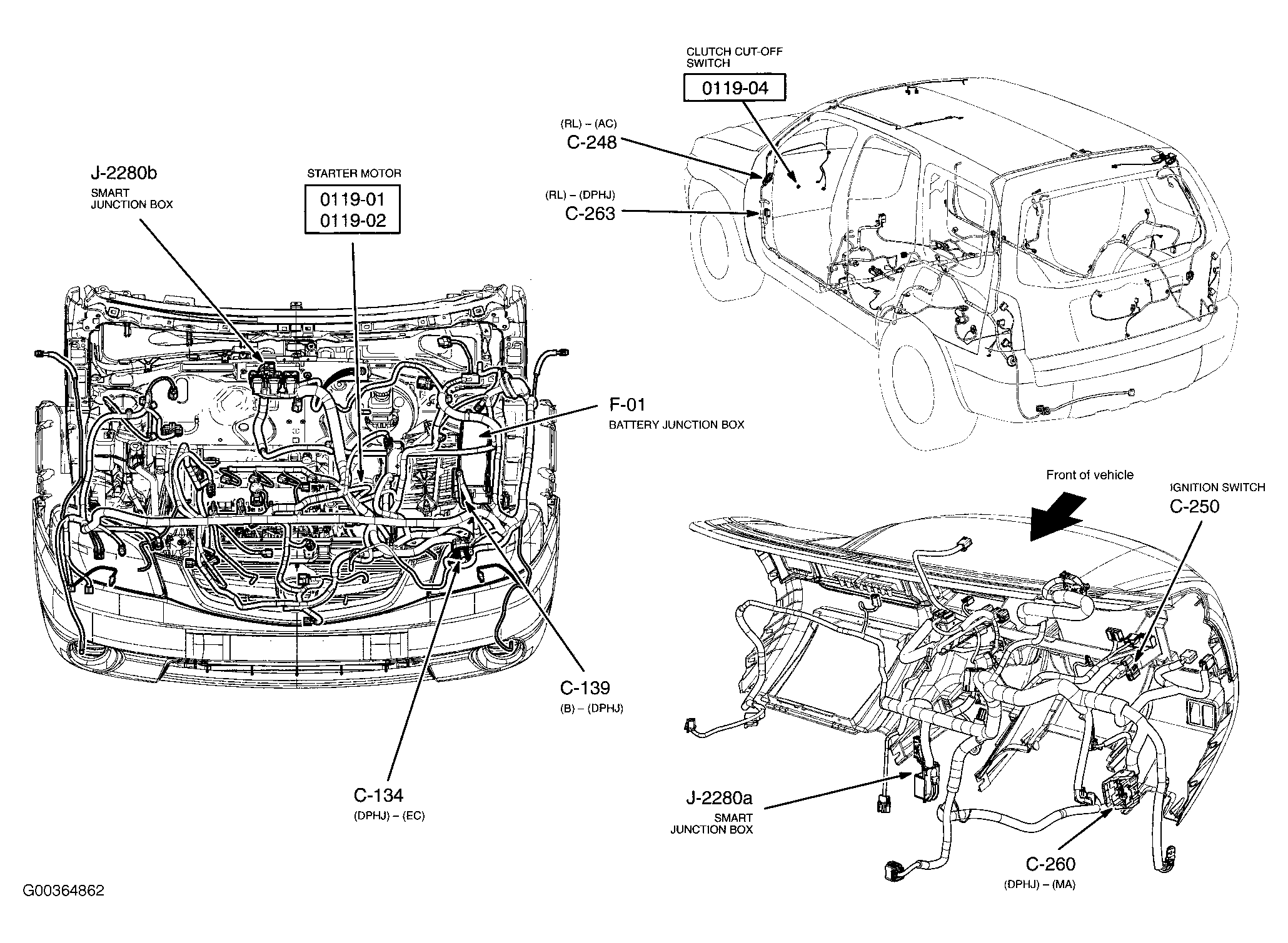

Fig 50: Vehicle Overview (2.3L)

G00364862

Courtesy of MAZDA MOTORS CORP.

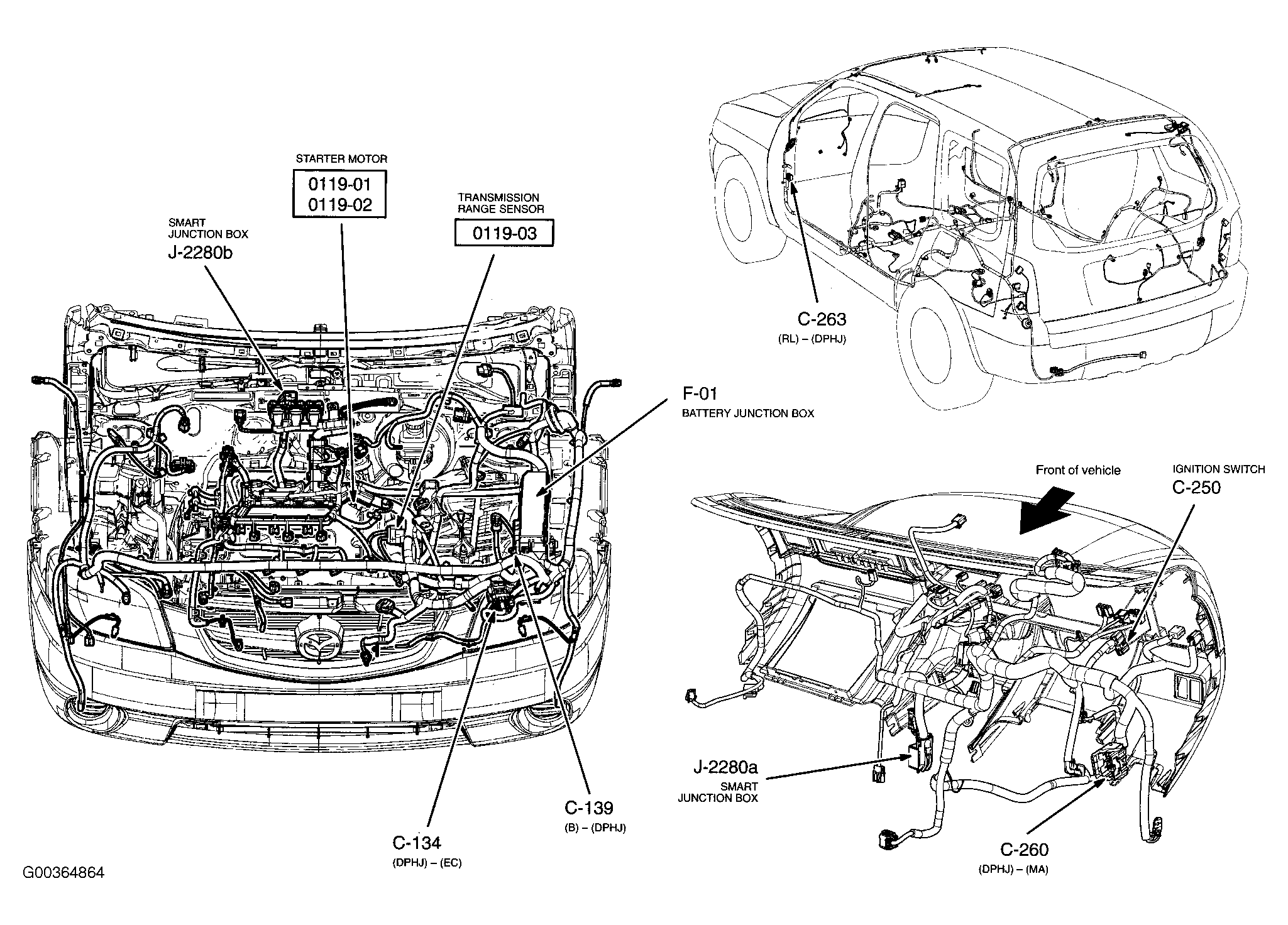

Fig 51: Vehicle Overview (3.0L)

G00364864

Courtesy of MAZDA MOTORS CORP.

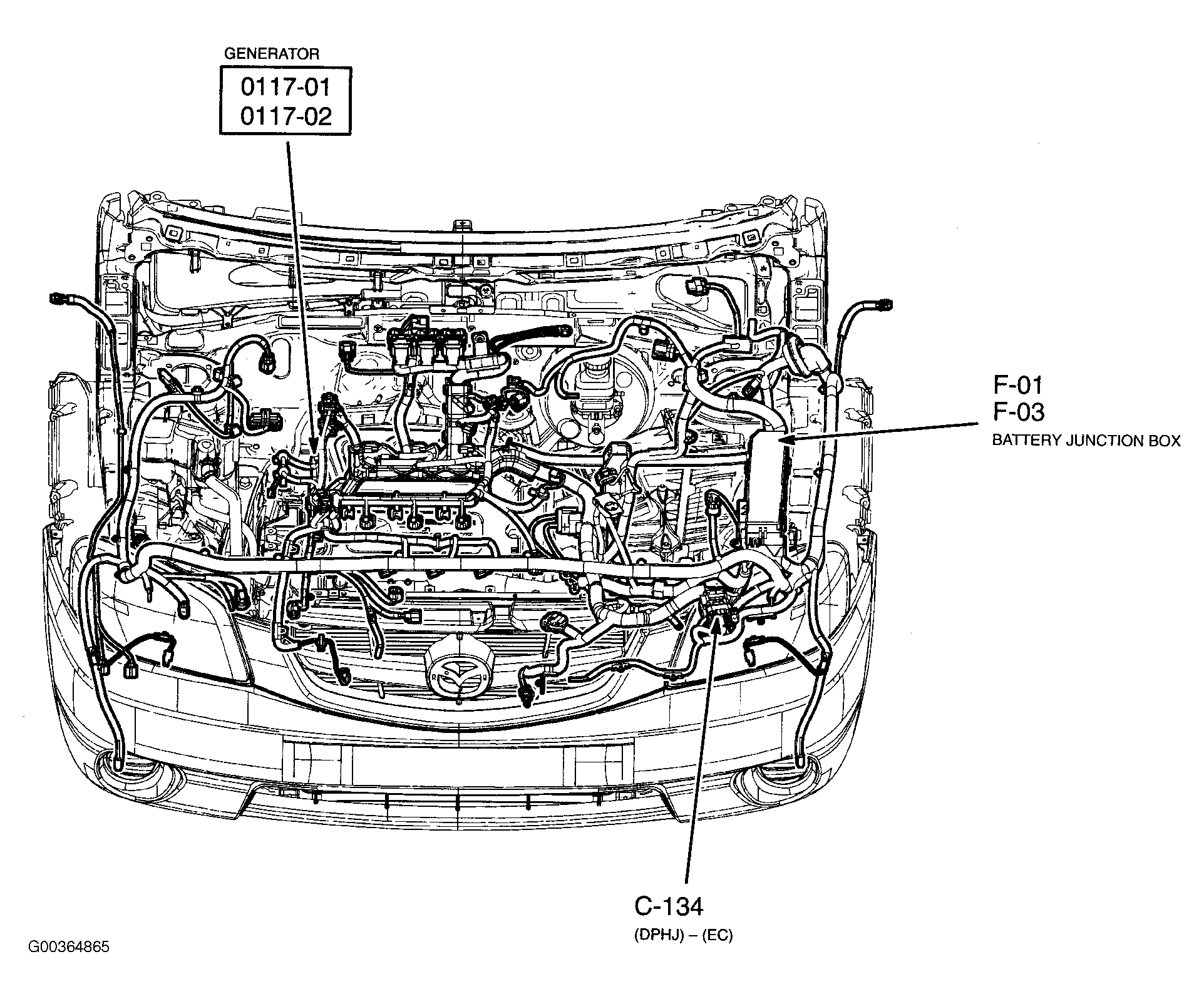

Fig 52: Engine Compartment (3.0L)

G00364865

Courtesy of MAZDA MOTORS CORP.

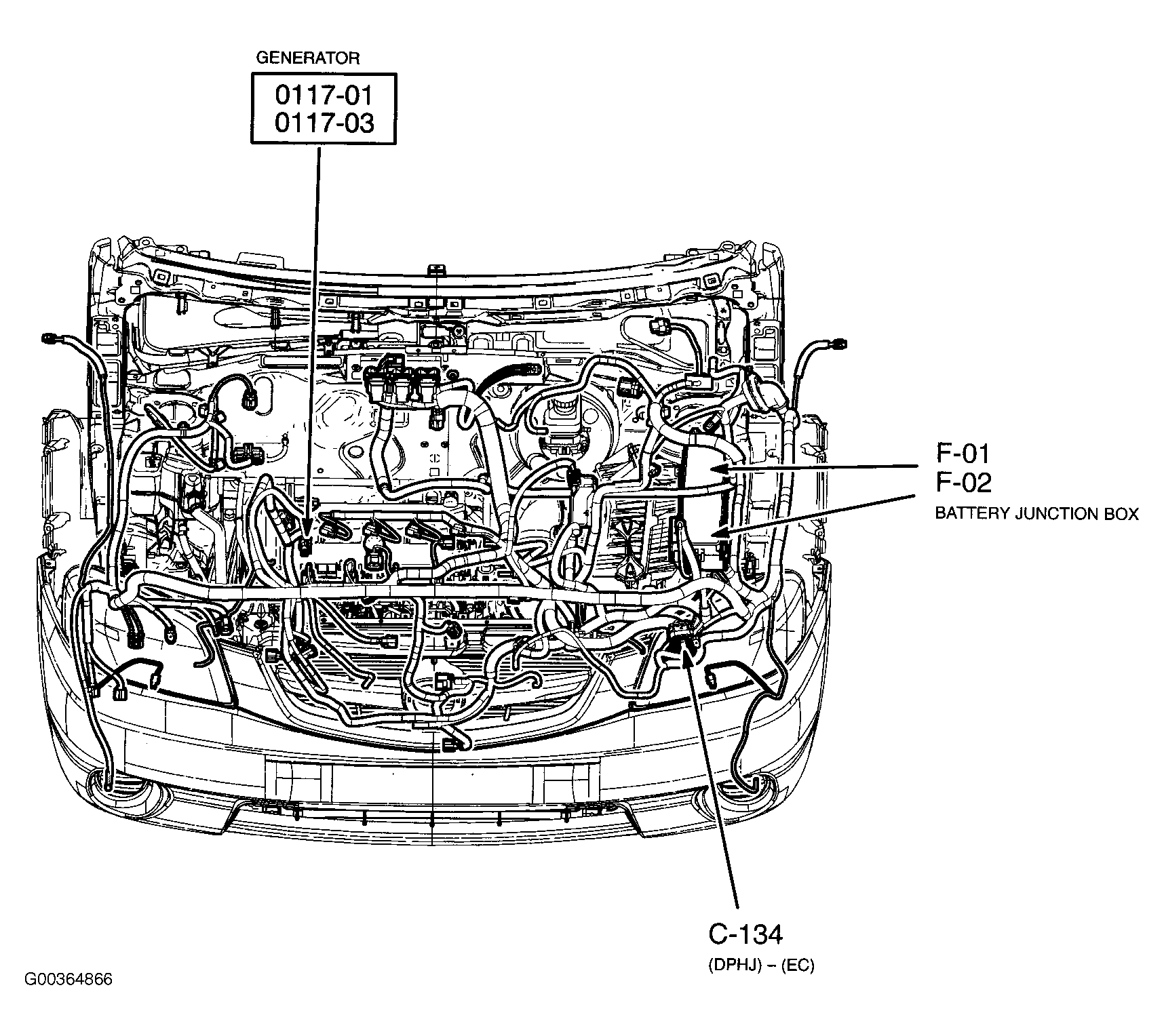

Fig 53: Engine Compartment (2.3L)

G00364866

Courtesy of MAZDA MOTORS CORP.

Fig 54: Vehicle Overview (3.0L)

G00364867

Courtesy of MAZDA MOTORS CORP.

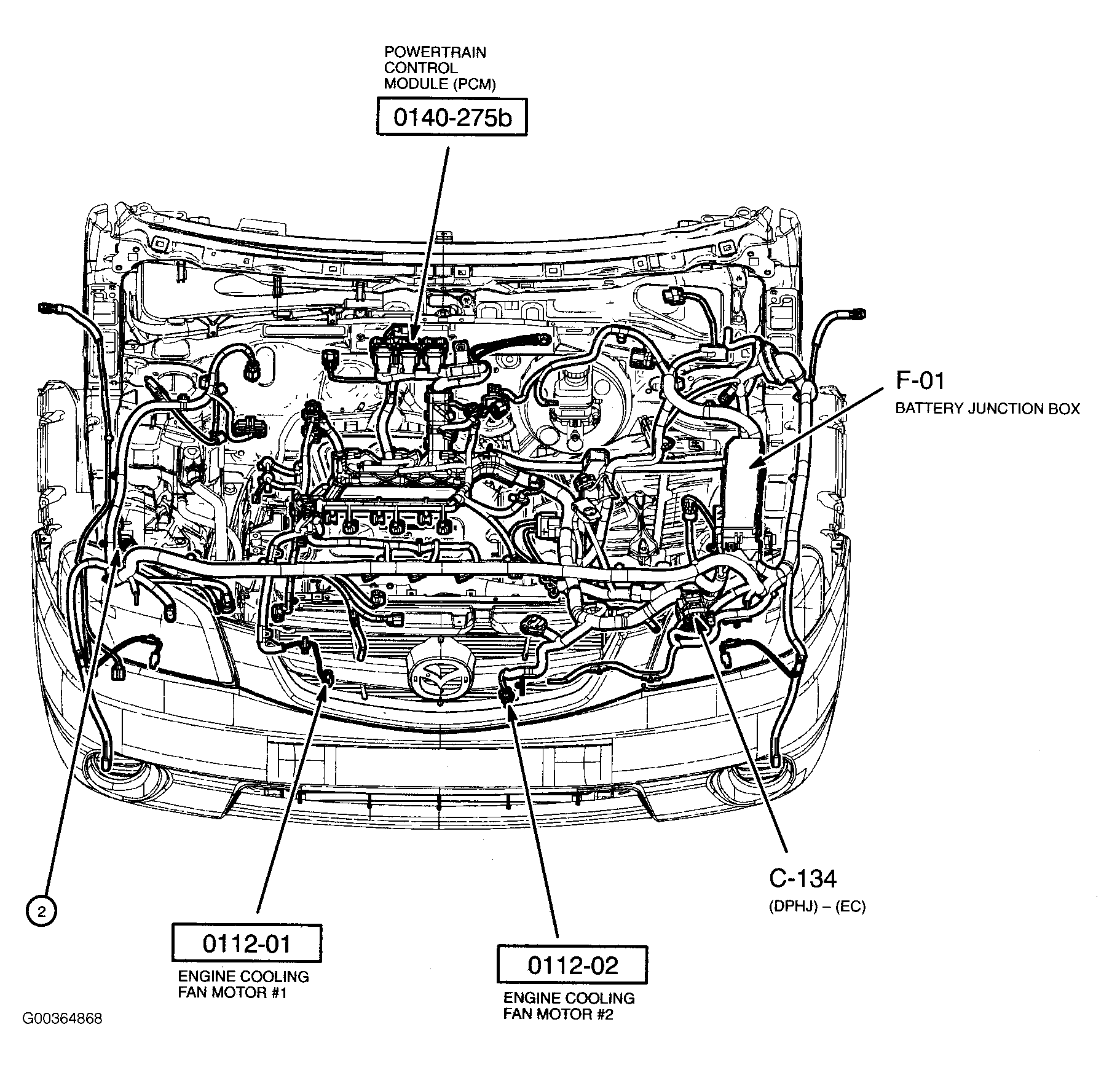

Fig 55: Engine Compartment (3.0L)

G00364868

Courtesy of MAZDA MOTORS CORP.

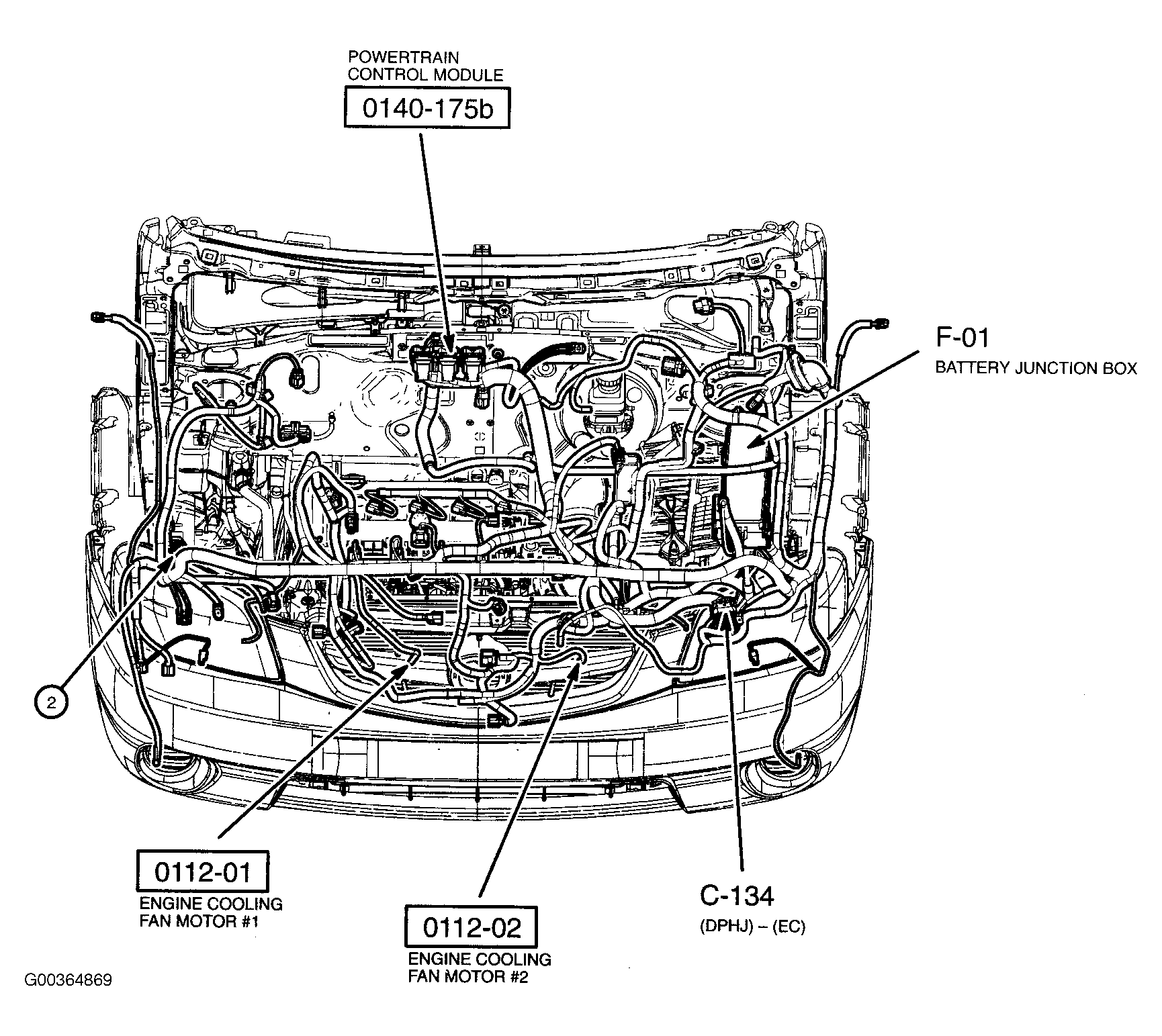

Fig 56: Engine Compartment (2.3L)

G00364869

Courtesy of MAZDA MOTORS CORP.

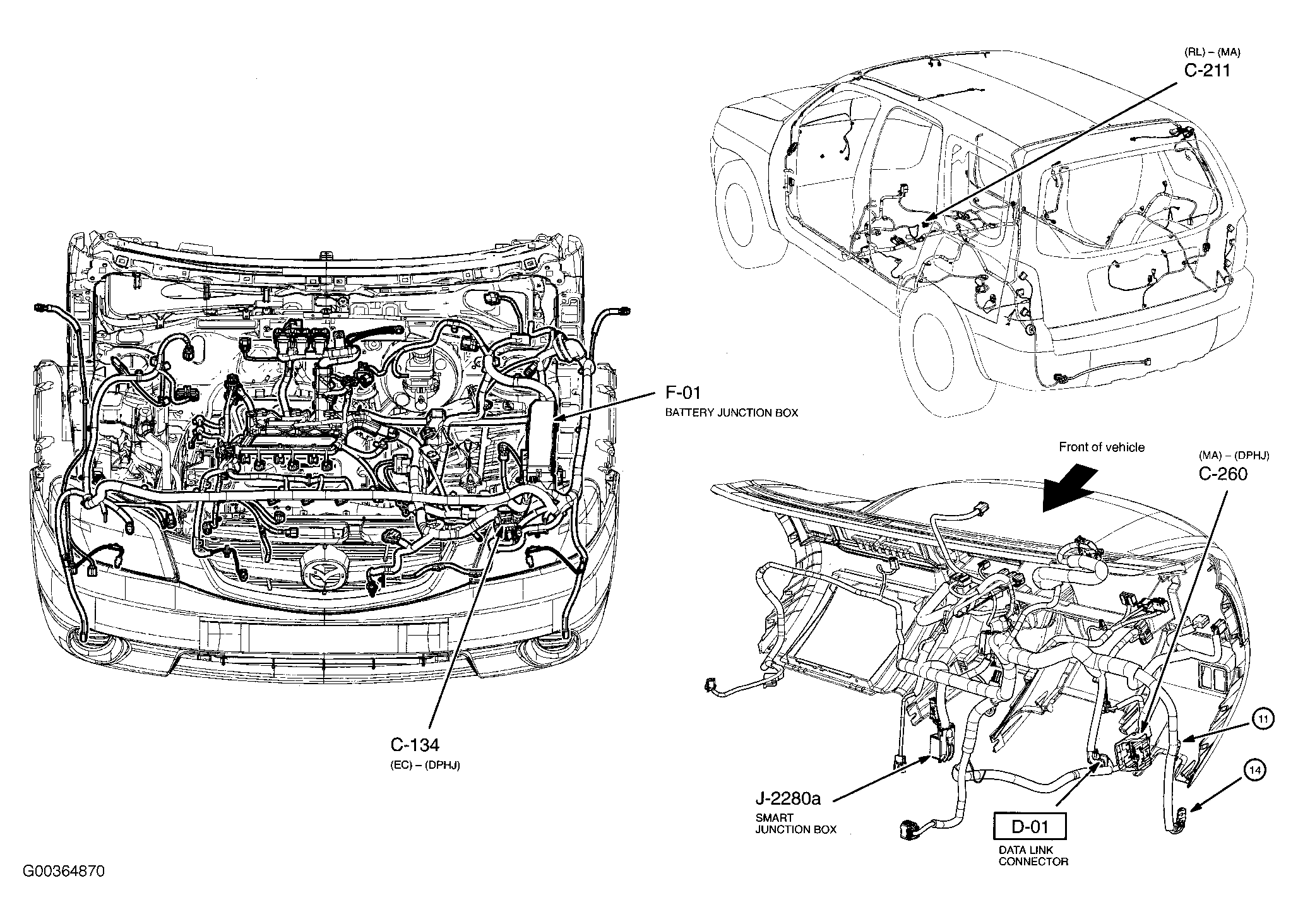

Fig 57: Vehicle Overview (3.0L)

G00364870

Courtesy of MAZDA MOTORS CORP.

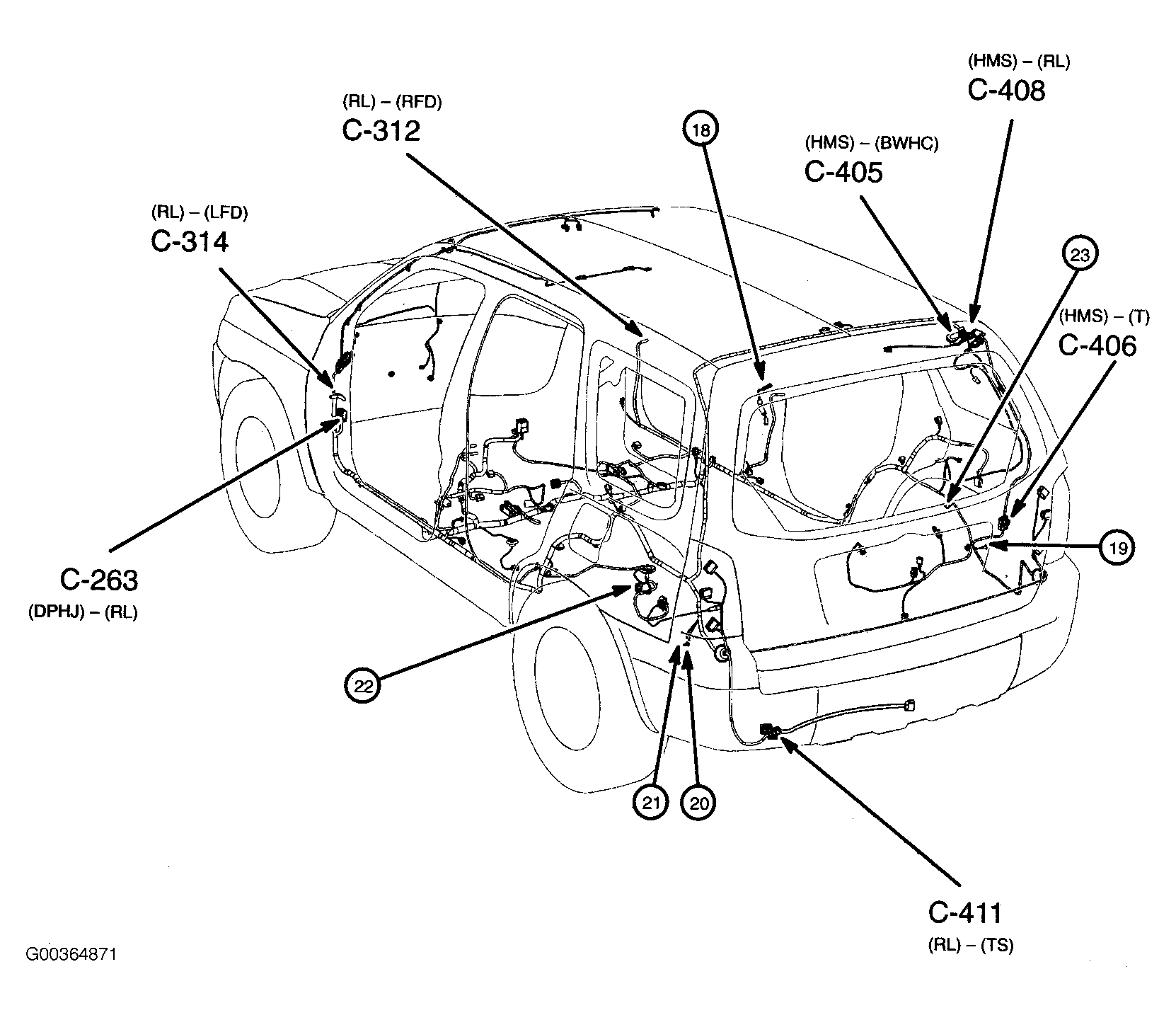

Fig 58: Vehicle Overview

G00364871

Courtesy of MAZDA MOTORS CORP.

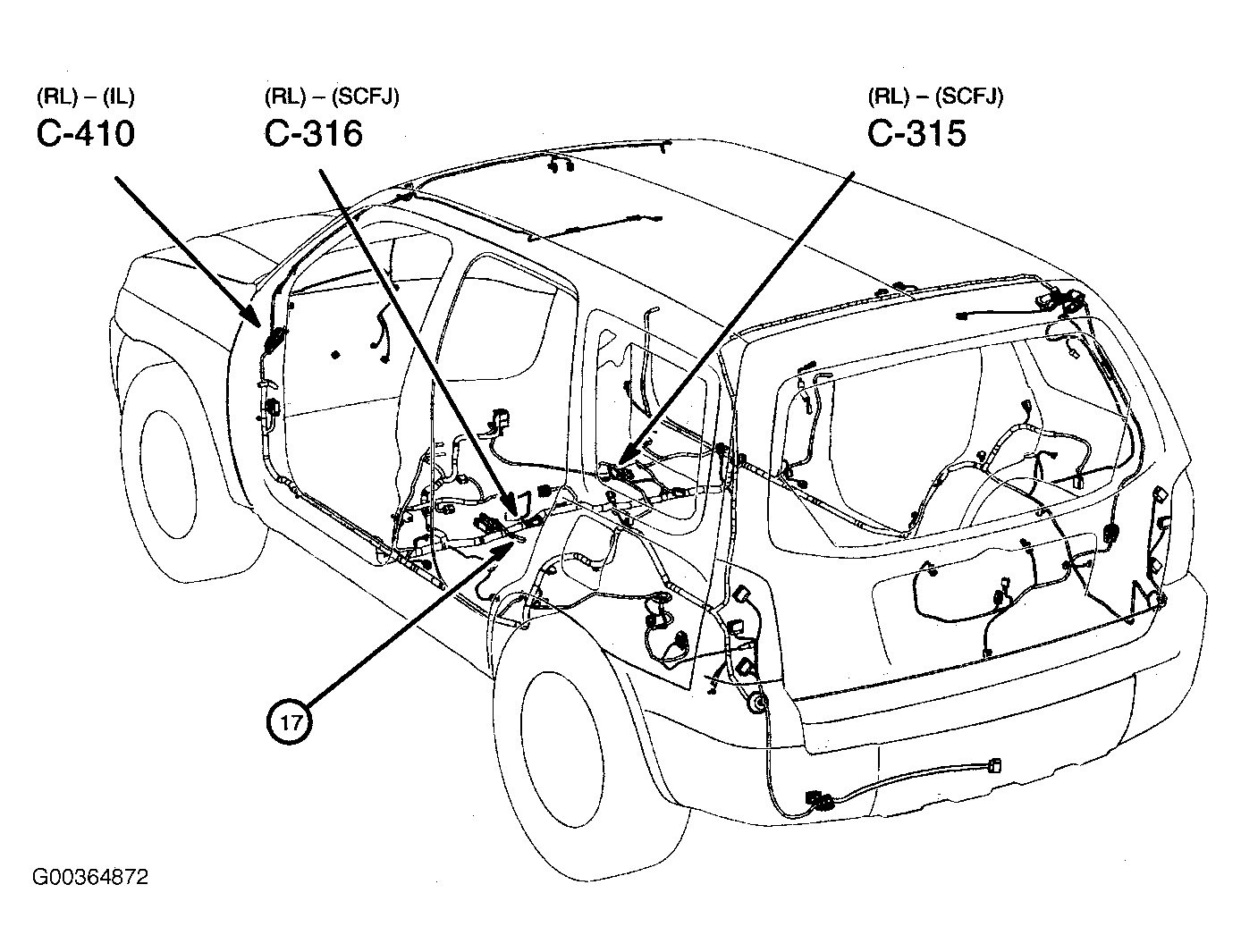

Fig 59: Vehicle Overview

G00364872

Courtesy of MAZDA MOTORS CORP.

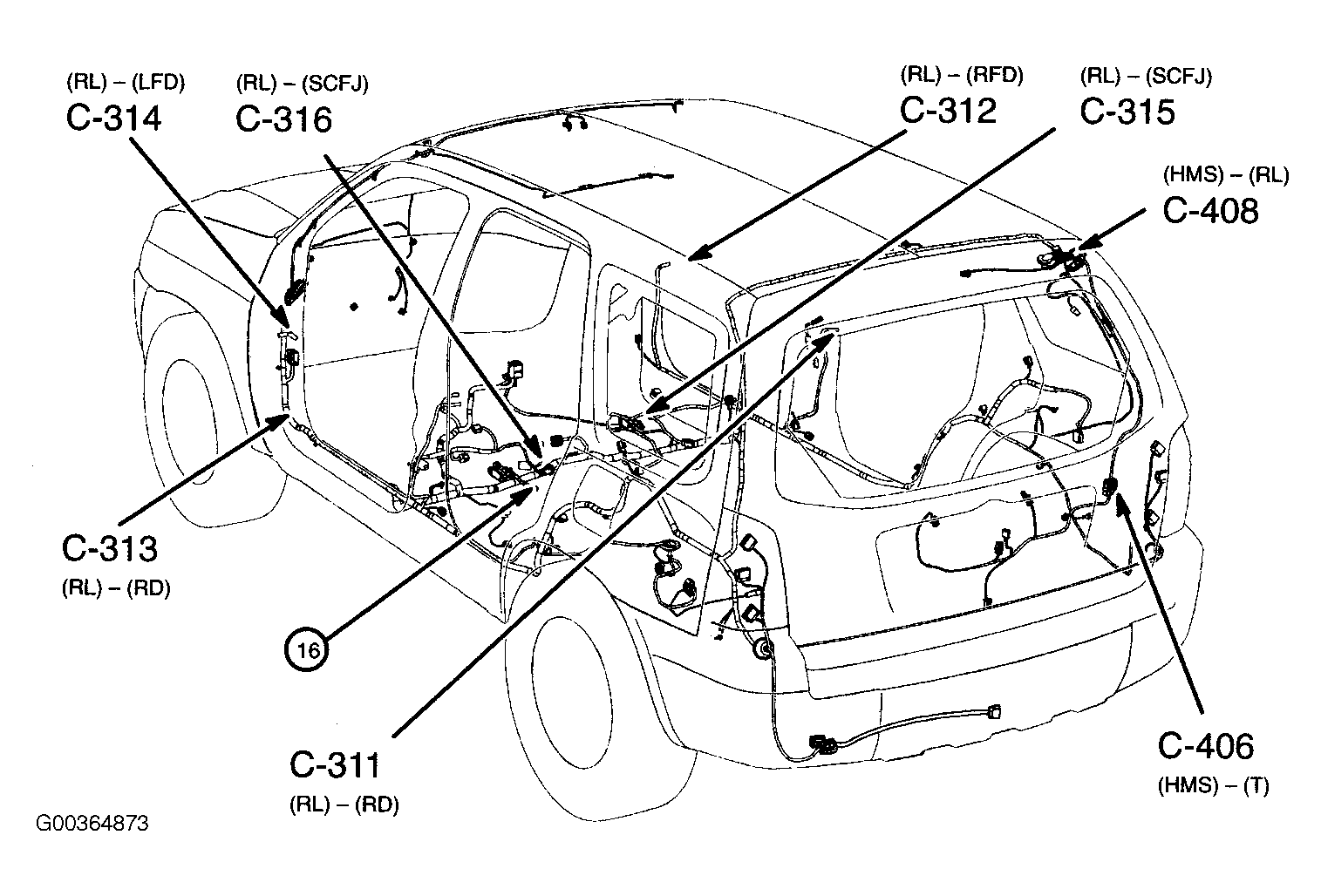

Fig 60: Vehicle Overview

G00364873

Courtesy of MAZDA MOTORS CORP.

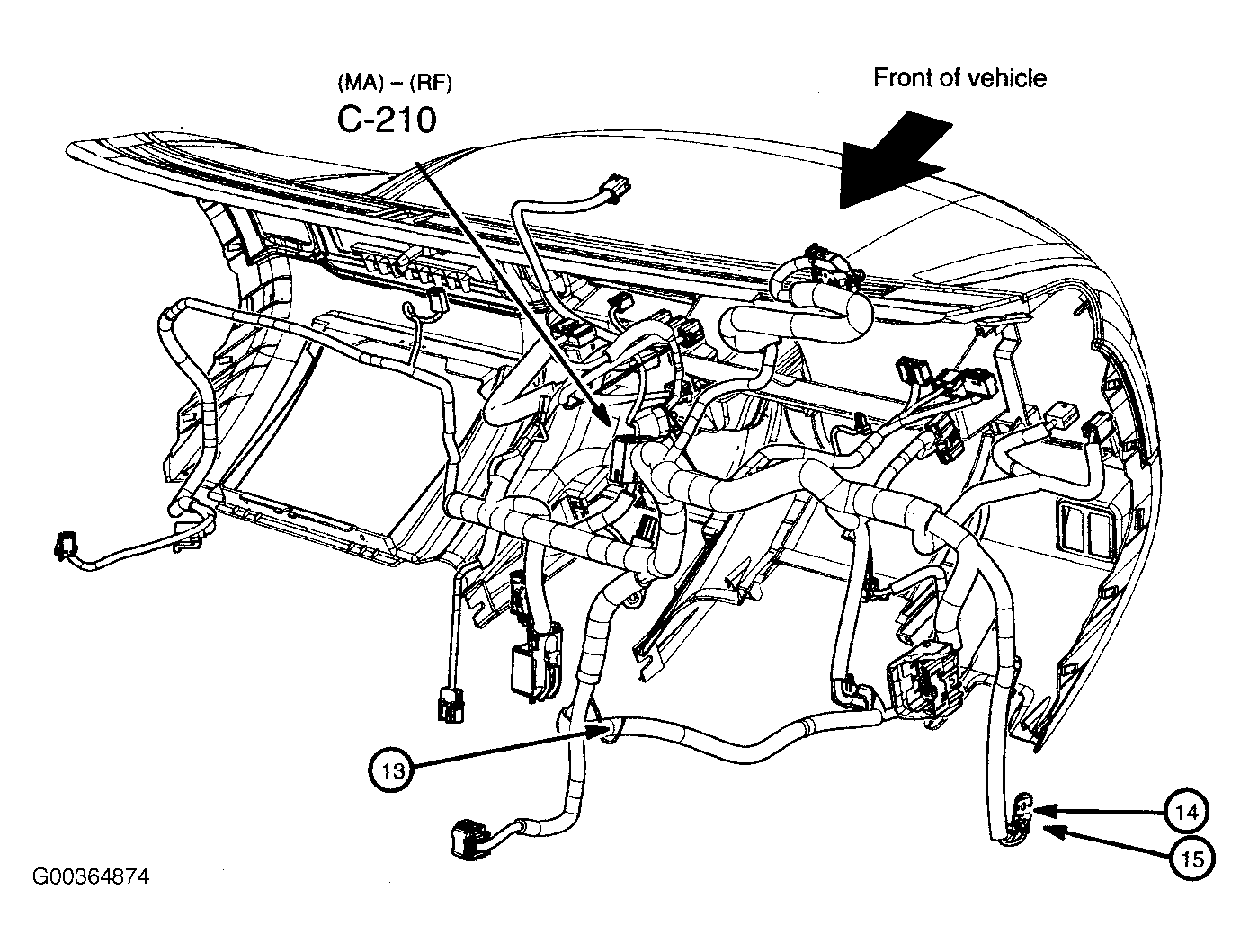

Fig 61: Dash

G00364874

Courtesy of MAZDA MOTORS CORP.

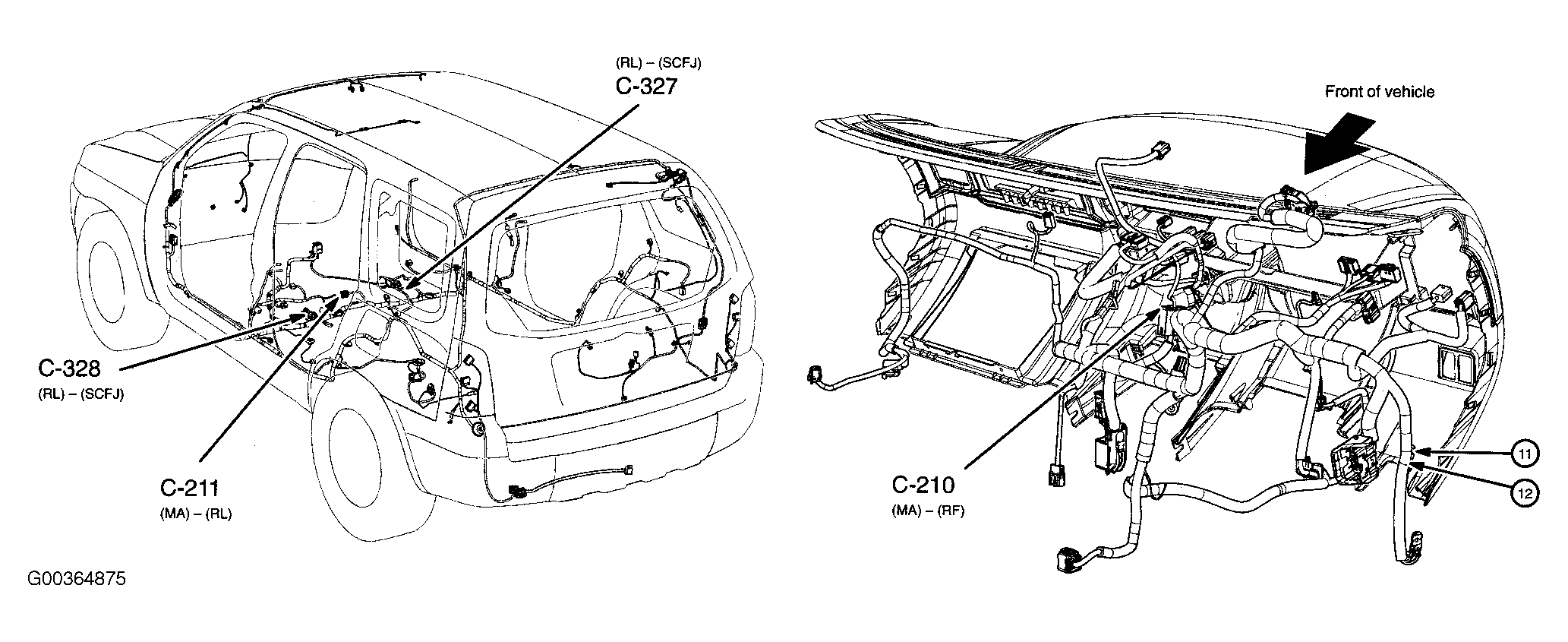

Fig 62: Vehicle Overview

G00364875

Courtesy of MAZDA MOTORS CORP.

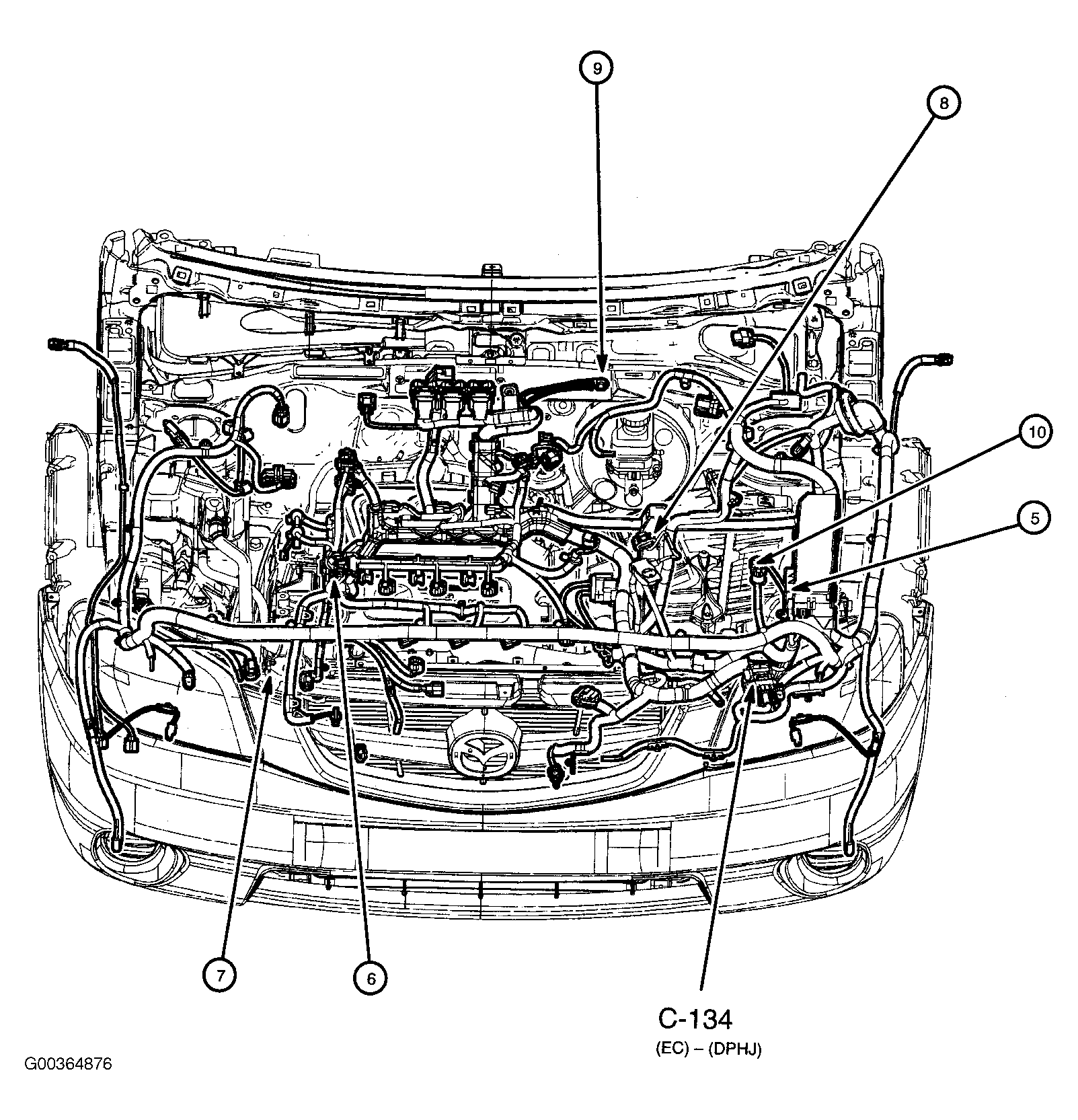

Fig 63: Engine Compartment (3.0L)

G00364876

Courtesy of MAZDA MOTORS CORP.

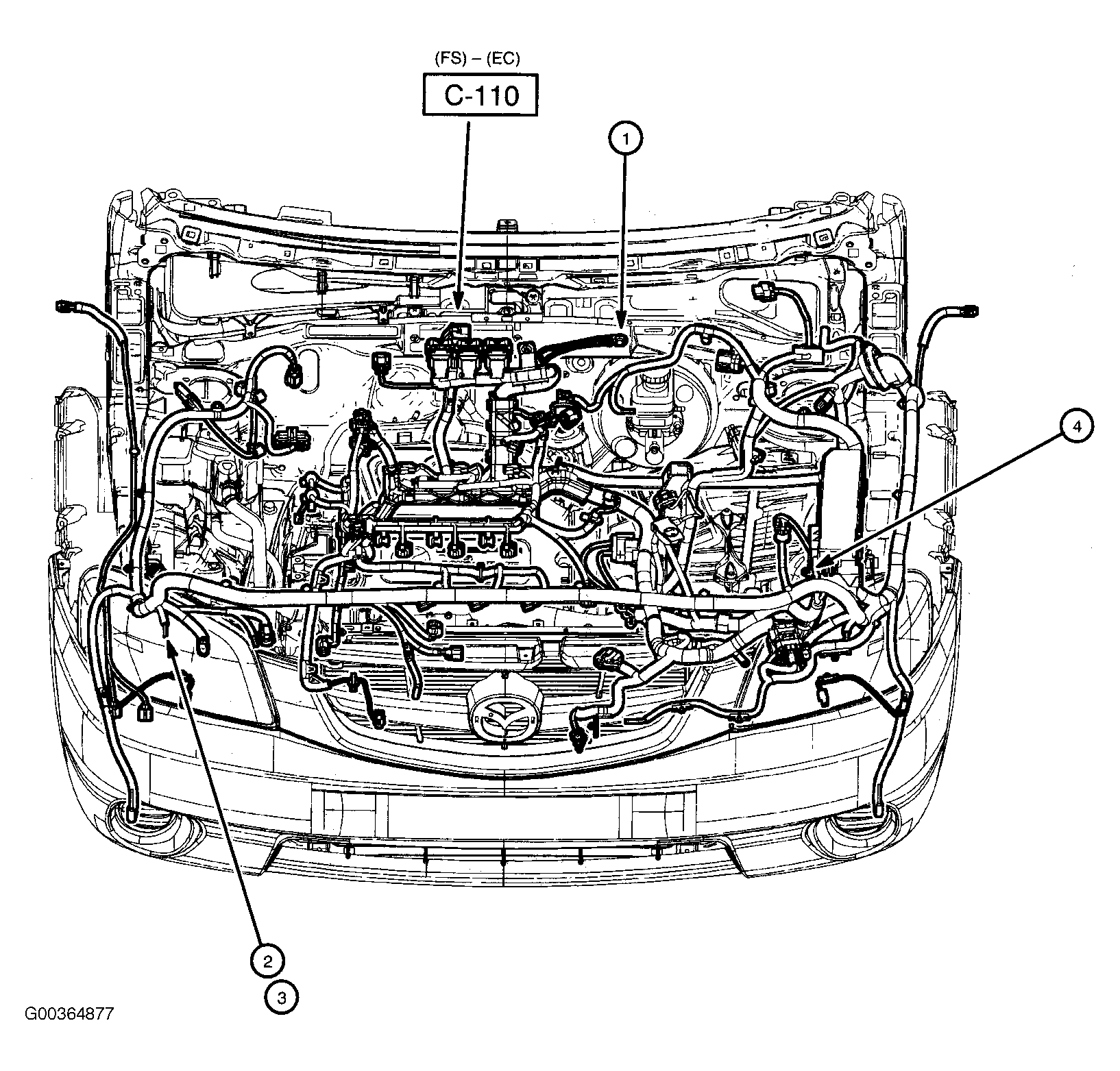

Fig 64: Engine Compartment (3.0L)

G00364877

Courtesy of MAZDA MOTORS CORP.

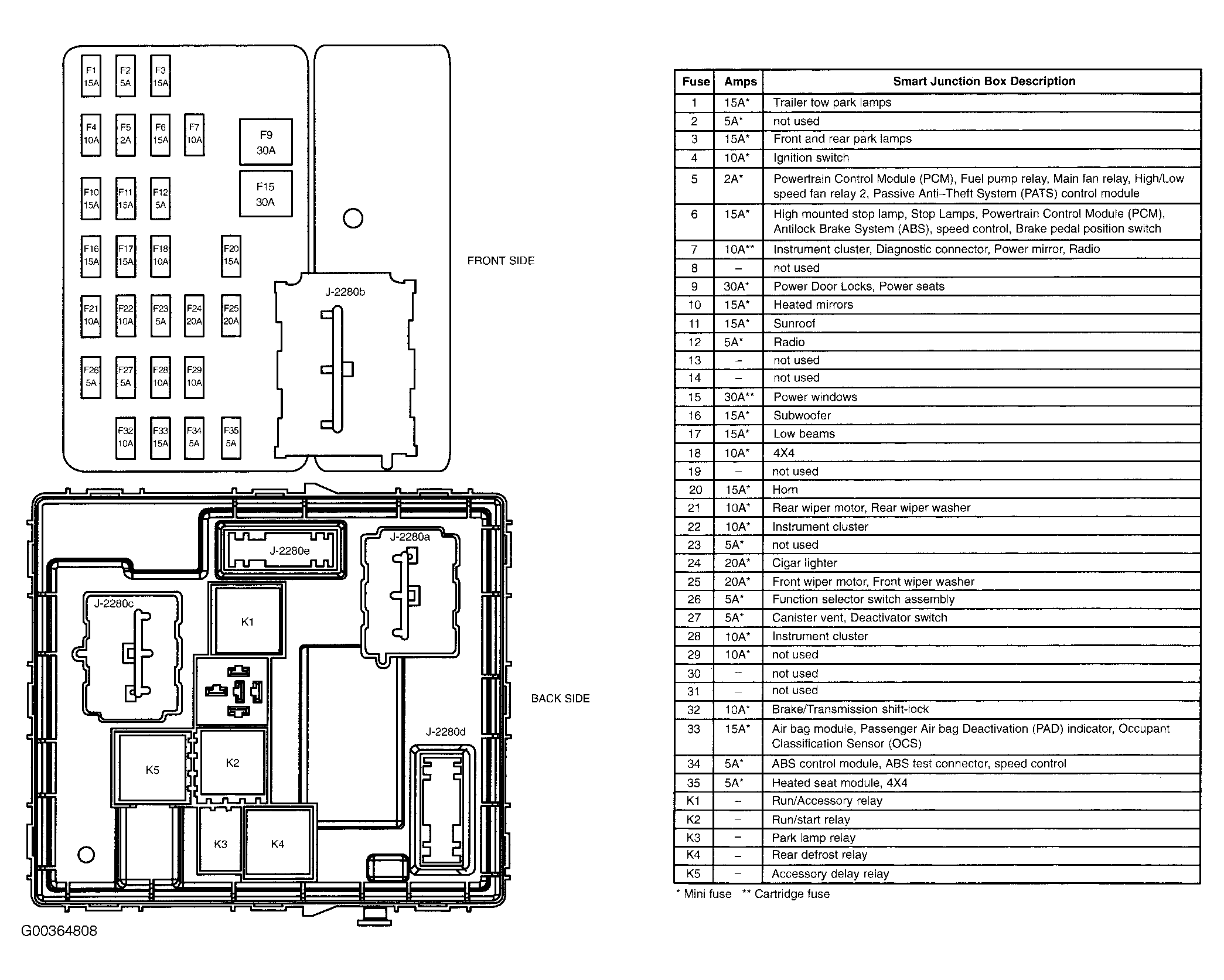

Fig 65: Smart Junction Box

G00364808

Courtesy of MAZDA MOTORS CORP.
