Camshaft Position (CMP) Sensor - 2.3L
>>
Notes
Camshaft Position (CMP) Sensor - 2.3L: Notes

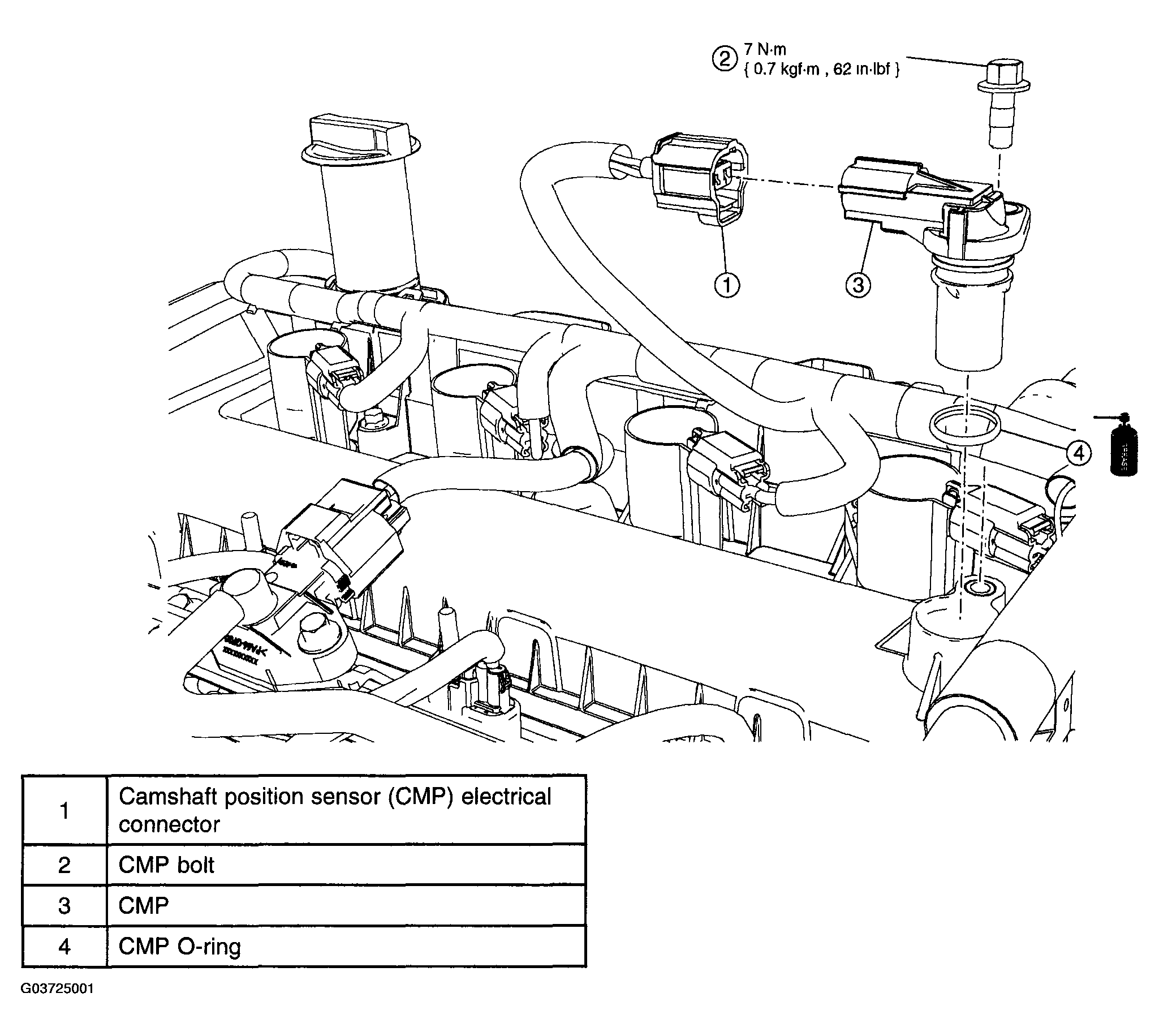

Fig 1: Removing/Installing Camshaft Position Sensor & Torque Specifications - 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
