Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connectors.
  2. Disconnect the APP sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

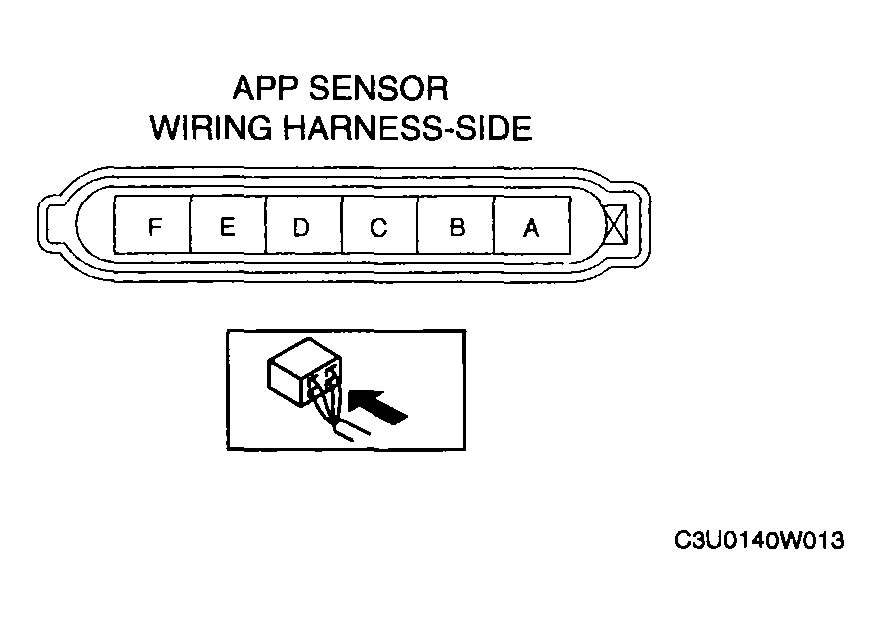

    Fig 1: Identifying APP Sensor Wiring Harness Terminals
    G04313906Courtesy of MAZDA MOTORS CORP.

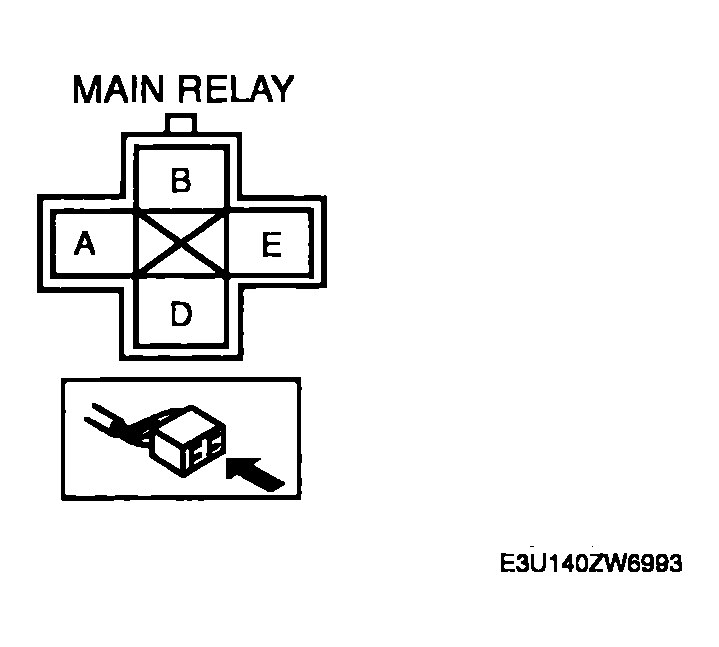

    Fig 2: Identifying Main Relay Connector Terminals
    G04313777Courtesy of MAZDA MOTORS CORP.

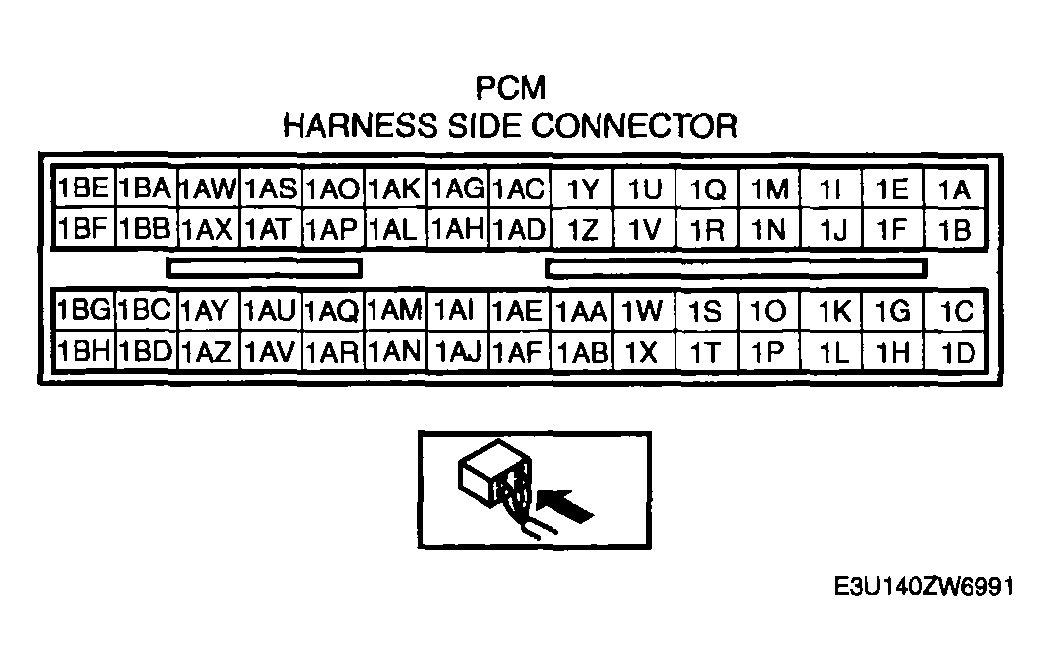

    Fig 3: PCM Connector Terminal Identification
    G04313908Courtesy of MAZDA MOTORS CORP.
