Circuit Open/Short Inspection: Notes
Courtesy of MAZDA MOTORS CORP.
Standard
WATER TEMPERATURE AND RESISTANCE SPECIFICATION CHART
| Water temperature (°C {°F}) |
Resistance (kohm) |
| 20 {68} |
35.48-39.20 |
| 70 {158} |
5.07-5.60 |
| 80 {176} |
3.65-4.02 |
Courtesy of MAZDA MOTORS CORP.

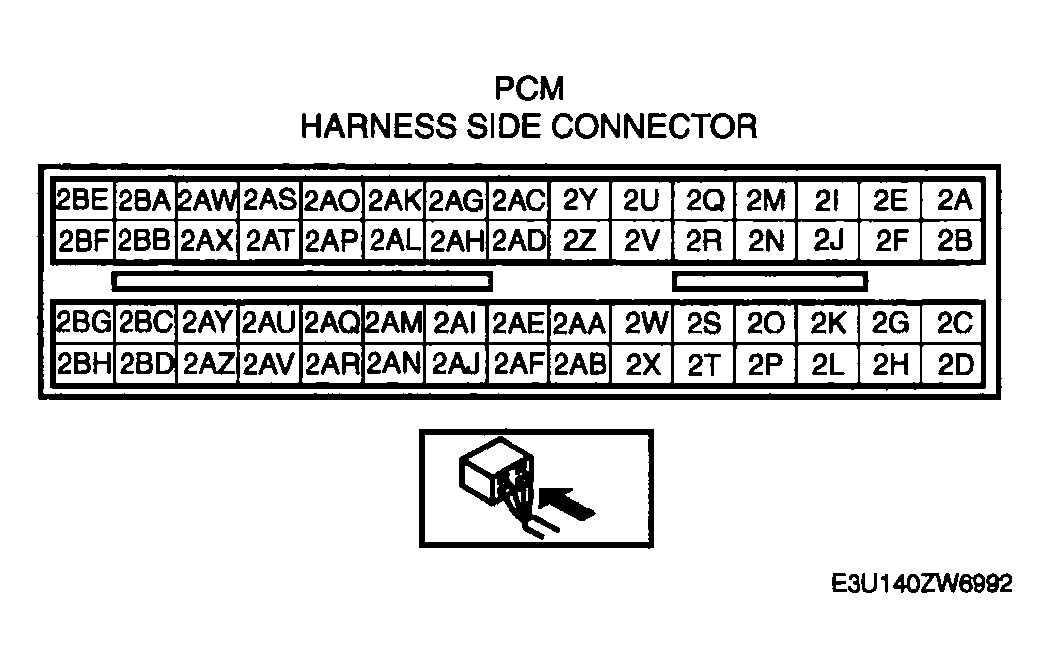

- Disconnect the PCM connector.
- Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
