Home >> Mazda >> 2006 >> 3 i, 2.0 F, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Knock Sensor (KS) Inspection Note >> Circuit Open/Short Inspection >> Notes

Circuit Open/Short Inspection: Notes

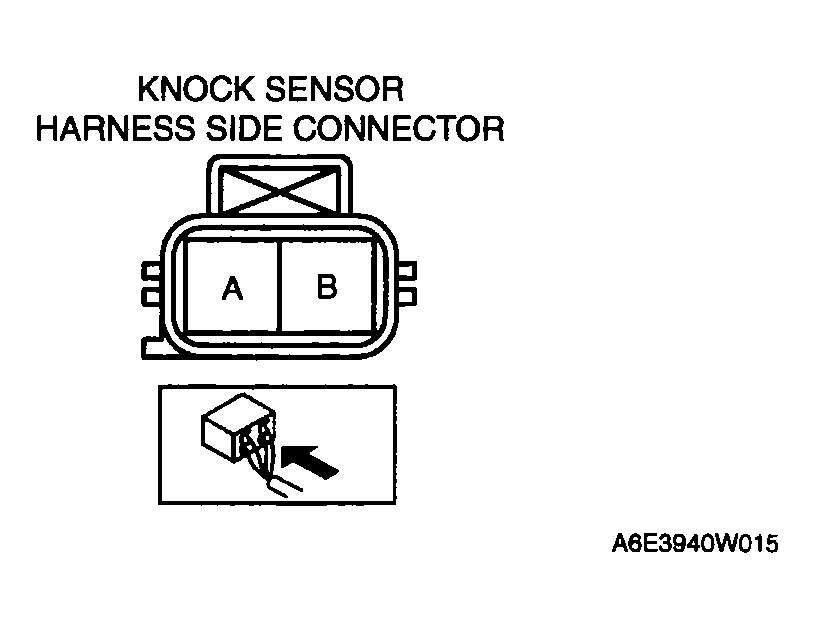

Fig 1: Identifying KS Connector Terminals
G04313944Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
