Circuit Open/Short Inspection: Notes

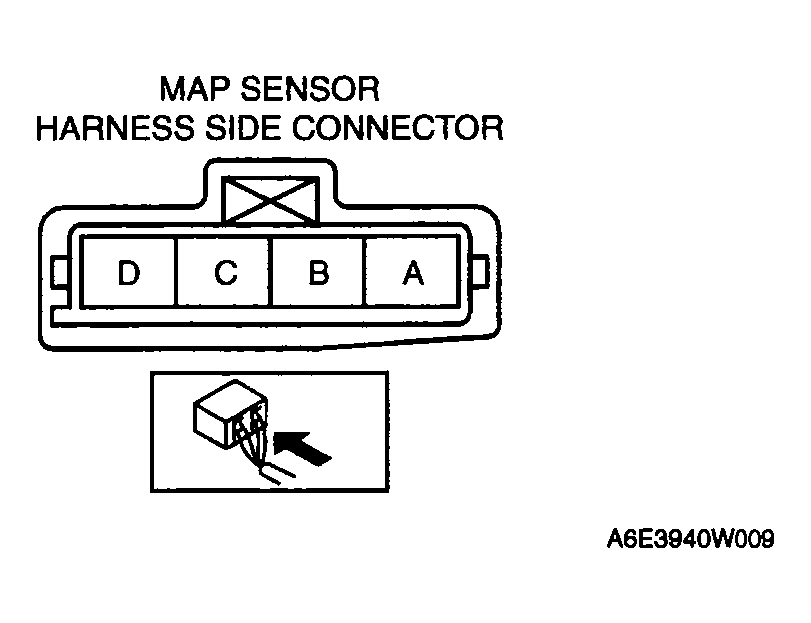

Fig 1: Identifying MAP Sensor Connector Terminals
G04313941Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for an open or short circuit. (Continuity inspection)
