Continuity Inspection

Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION ).
Verify that the continuity between neutral switch terminals A and B is as indicated in the table.
- If it can be verified, perform the Circuit Open/Short Inspection .
- If it cannot be verified, replace the neutral switch.

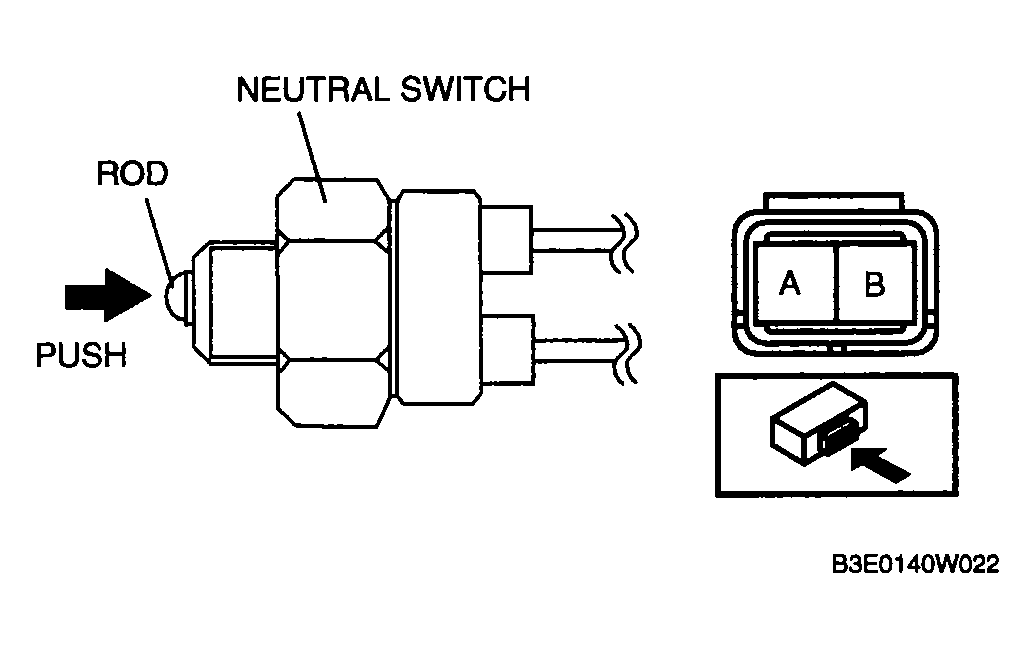

  Fig 1: Identifying Neutral Switch
  Courtesy of MAZDA MOTORS CORP.

MEASURED CONDITION AND CONTINUITY

Measured condition	Continuity
Rod pushed	Continuity detected
Except above	No continuity
