Circuit Open/Short Inspection: Notes

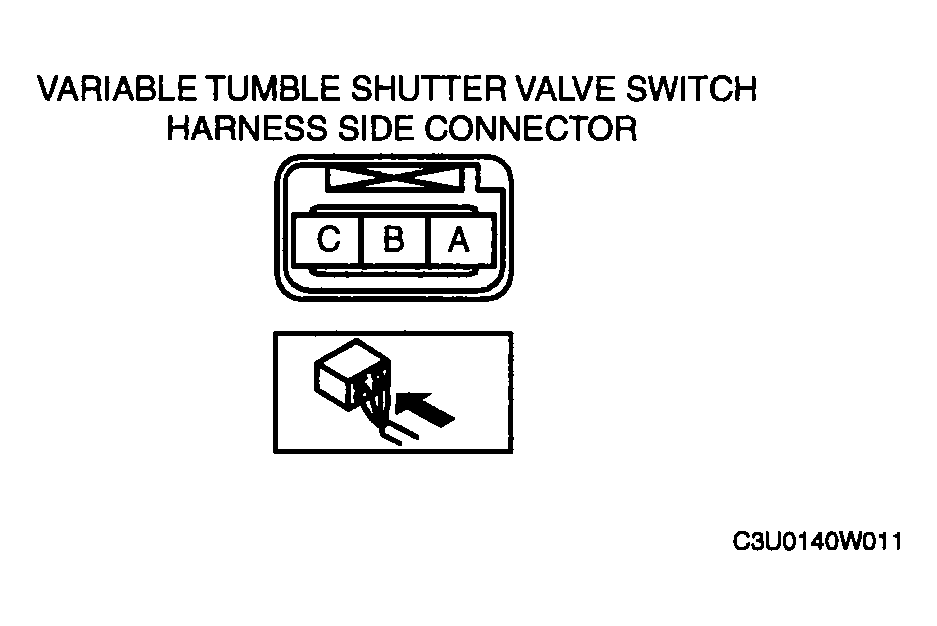

Fig 1: Identifying Variable Tumble Shutter Valve Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector.
2. Inspect the following harness for an open or short wiring. (Continuity inspection)
