Home >> Mazda >> 2006 >> 3 i, 2.0 F, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine Control System) >> Quick Diagnostic Chart

Quick Diagnostic Chart

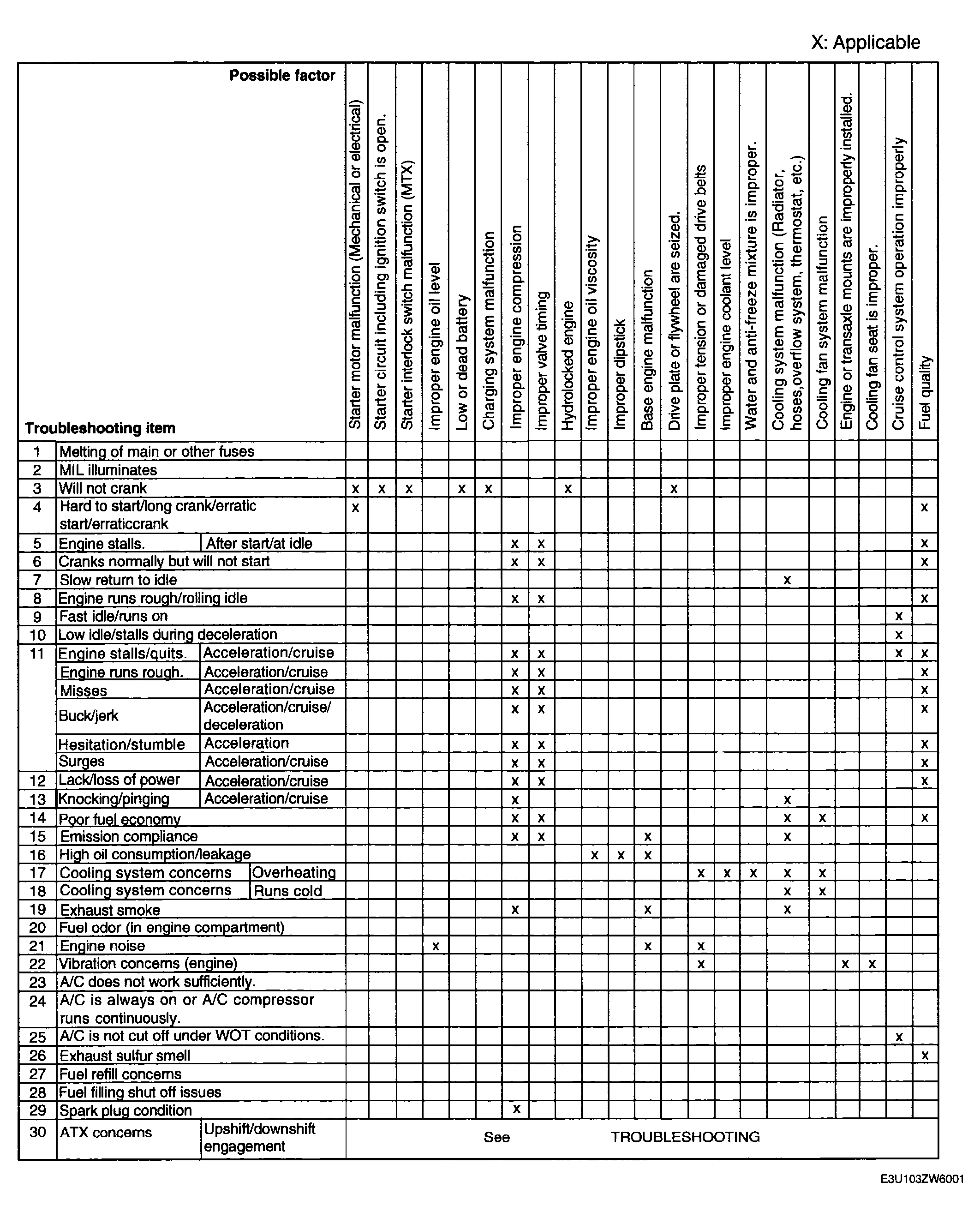

Fig 1: Quick Diagnostic Chart [LF, L3] (1 Of 4)
G04313451Courtesy of MAZDA MOTORS CORP.

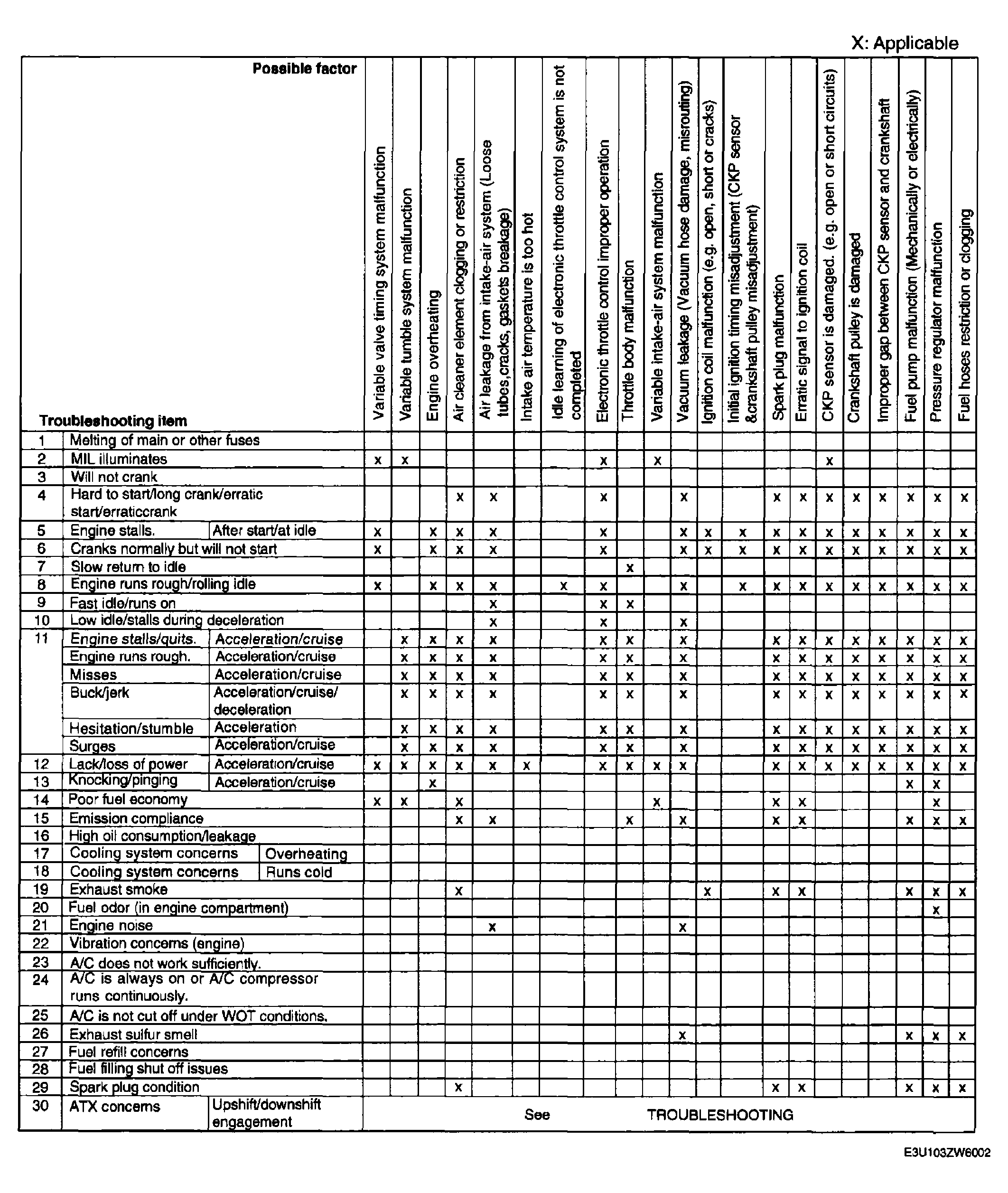

Fig 2: Quick Diagnostic Chart [LF, L3] (2 Of 4)
G04313452Courtesy of MAZDA MOTORS CORP.

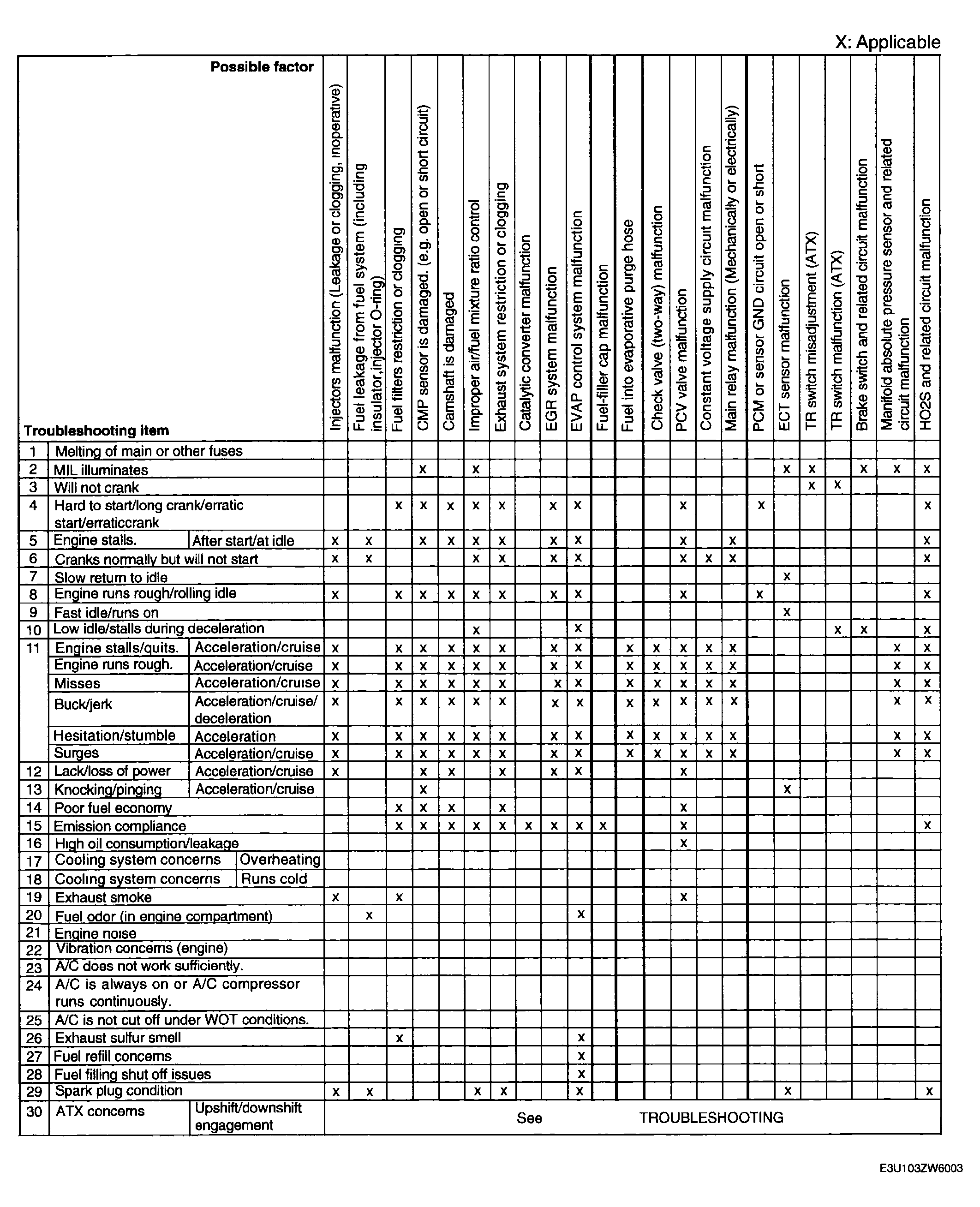

Fig 3: Quick Diagnostic Chart [LF, L3] (3 Of 4)
G04313453Courtesy of MAZDA MOTORS CORP.

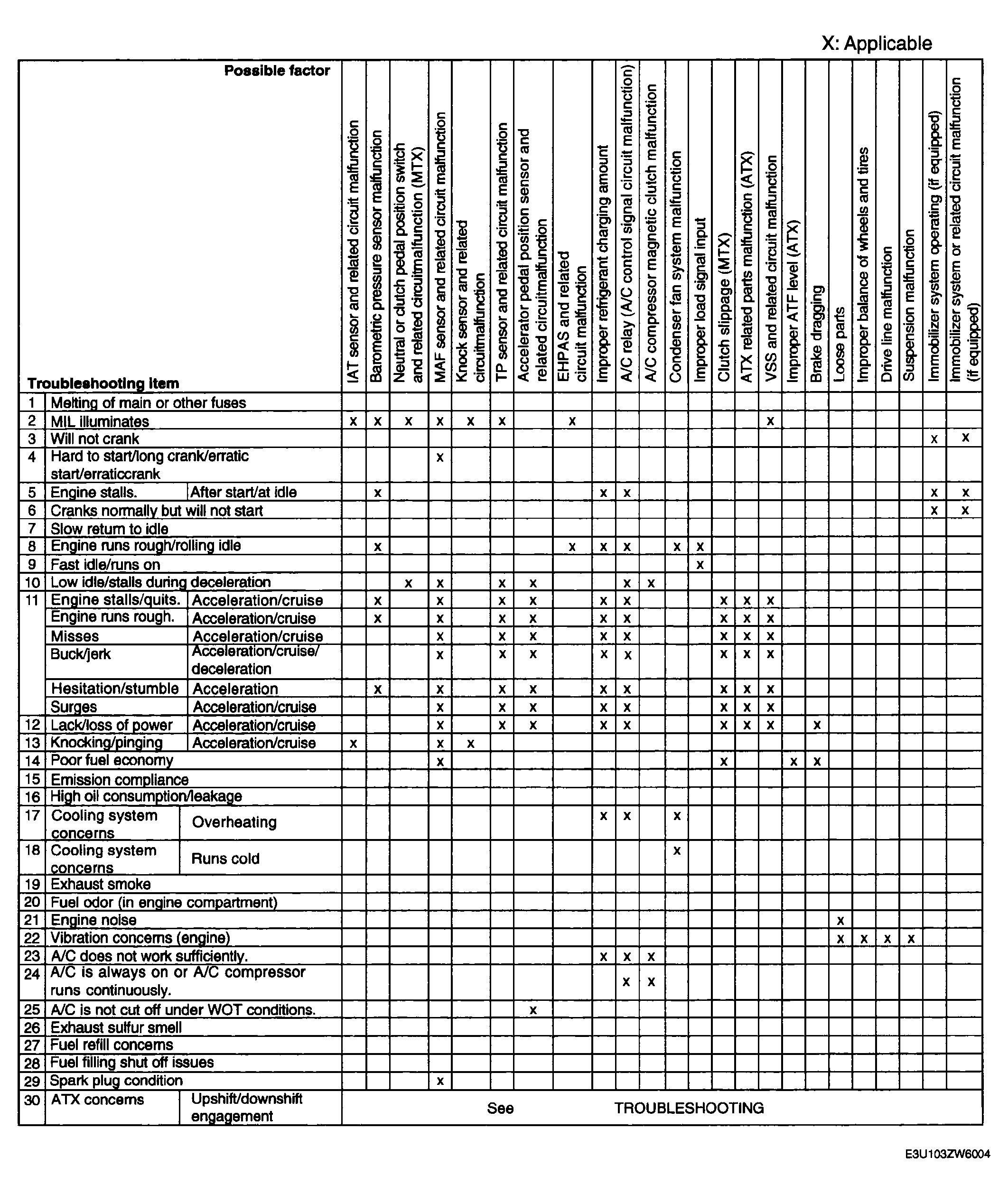

Fig 4: Quick Diagnostic Chart [LF, L3] (4 Of 4)
G04313454Courtesy of MAZDA MOTORS CORP.
