Home >> Mazda >> 2006 >> 6 Mazdaspeed >> Repair and Diagnosis >> Brakes >> Traction Control >> Dynamic Stability Control System >> DSC Off Switch Inspection

DSC Off Switch Inspection

  1. Remove the DSC OFF switch.
  2. Inspect for continuity between the DSC OFF switch terminals using an ohmmeter.

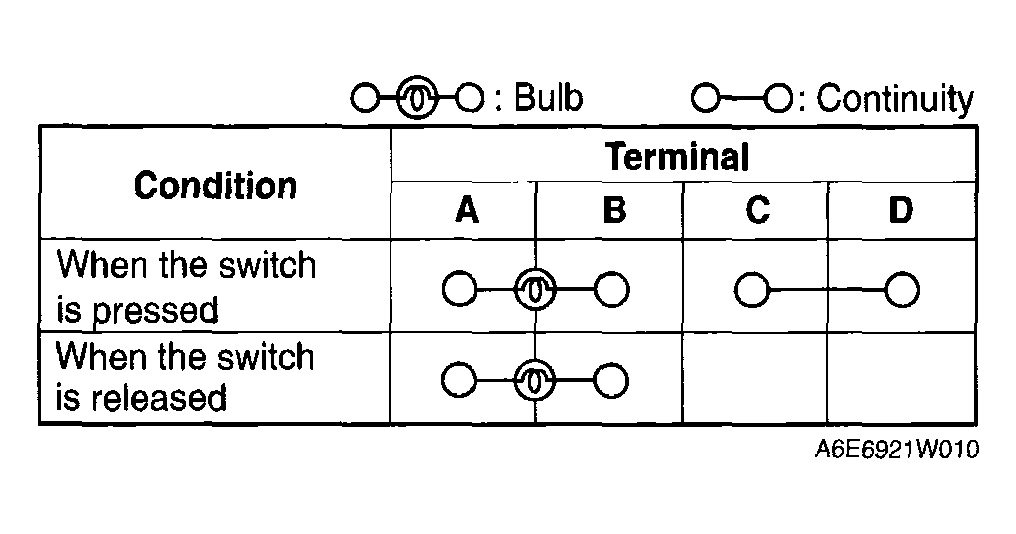

    Fig 1: Continuity Table
    G04325997Courtesy of MAZDA MOTORS CORP.
    • If not within the specification, replace the DSC OFF switch.

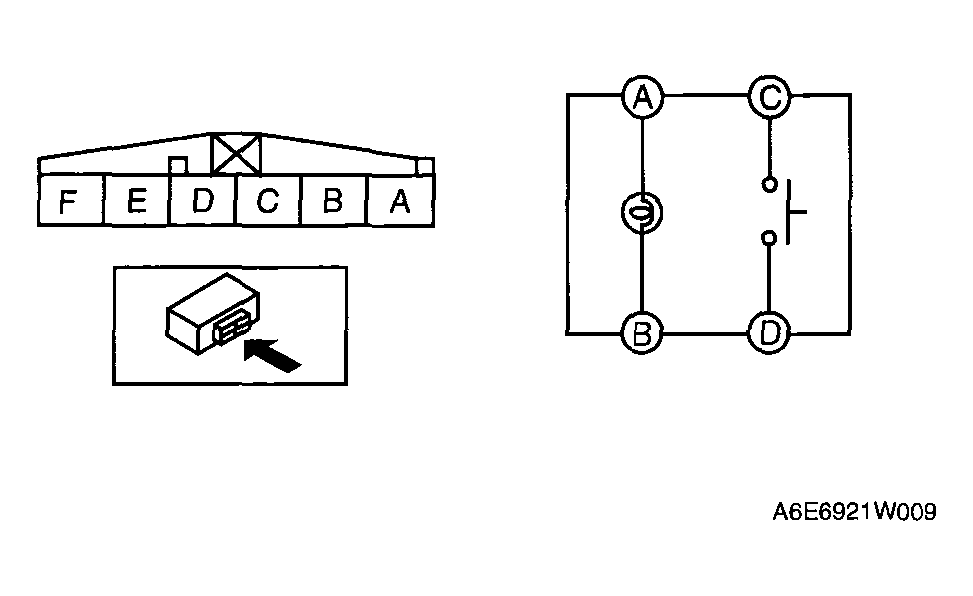

      Fig 2: Inspecting Continuity Between DSC Off Switch Terminals
      G04325998Courtesy of MAZDA MOTORS CORP.
