Injector Driver Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the battery and the battery tray.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

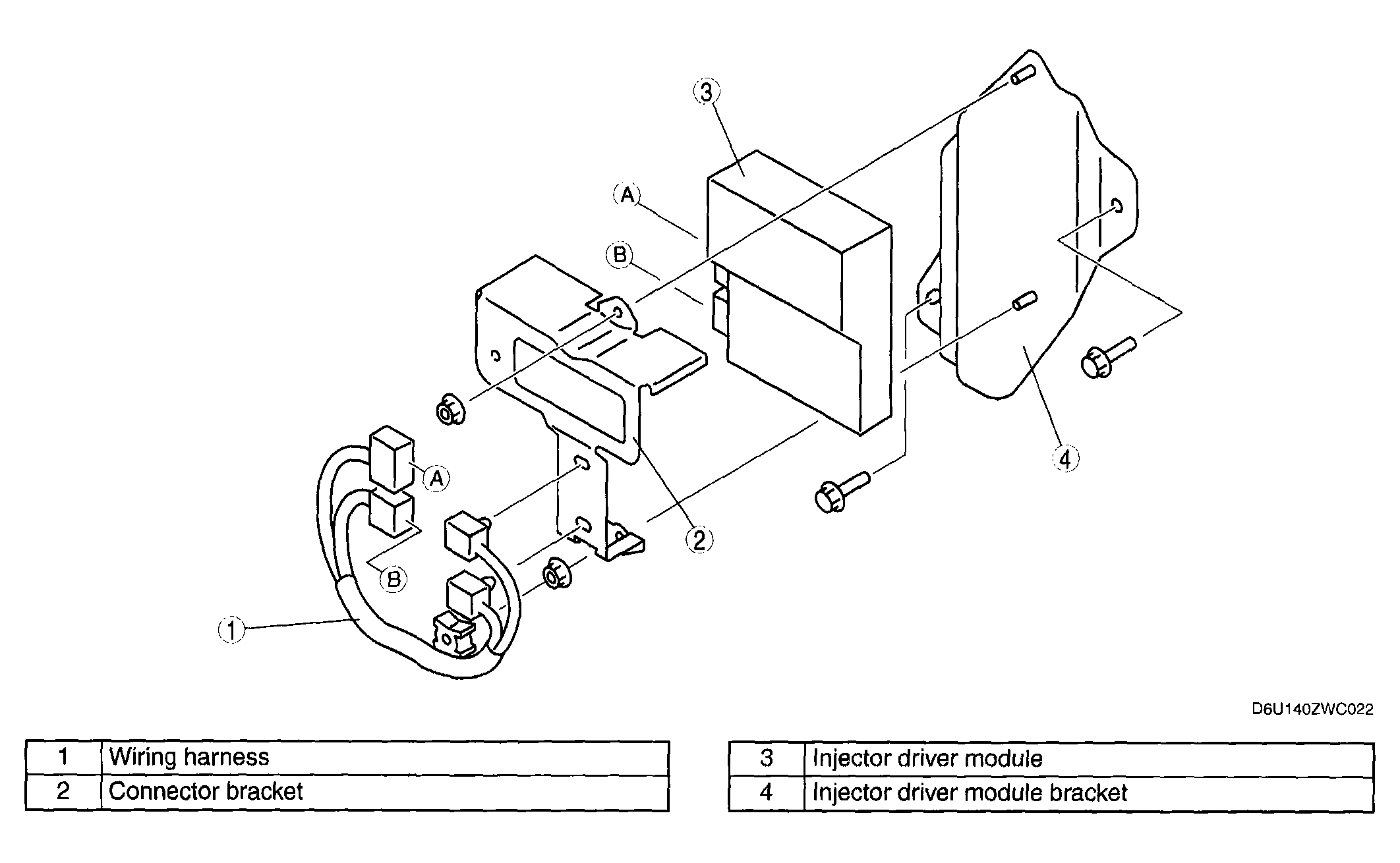

    Fig 1: Locating Injector Driver Module
    G04325219Courtesy of MAZDA MOTORS CORP.
