Electrical System: Connectors: Inspection

CAUTION:

To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.

When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

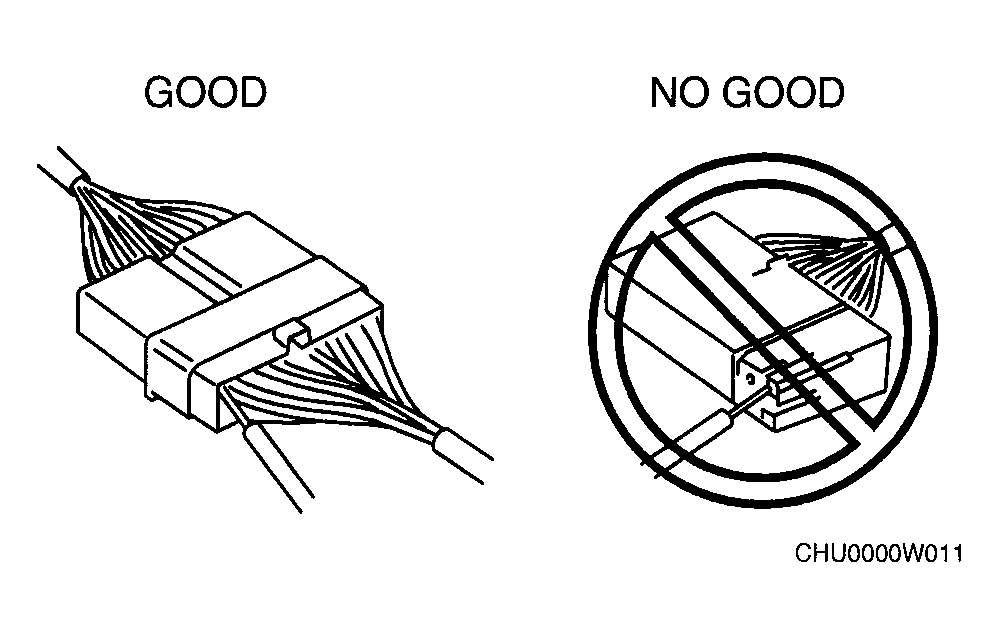

Fig 1: View Of Proper And Improper Terminal Probe Methods
Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

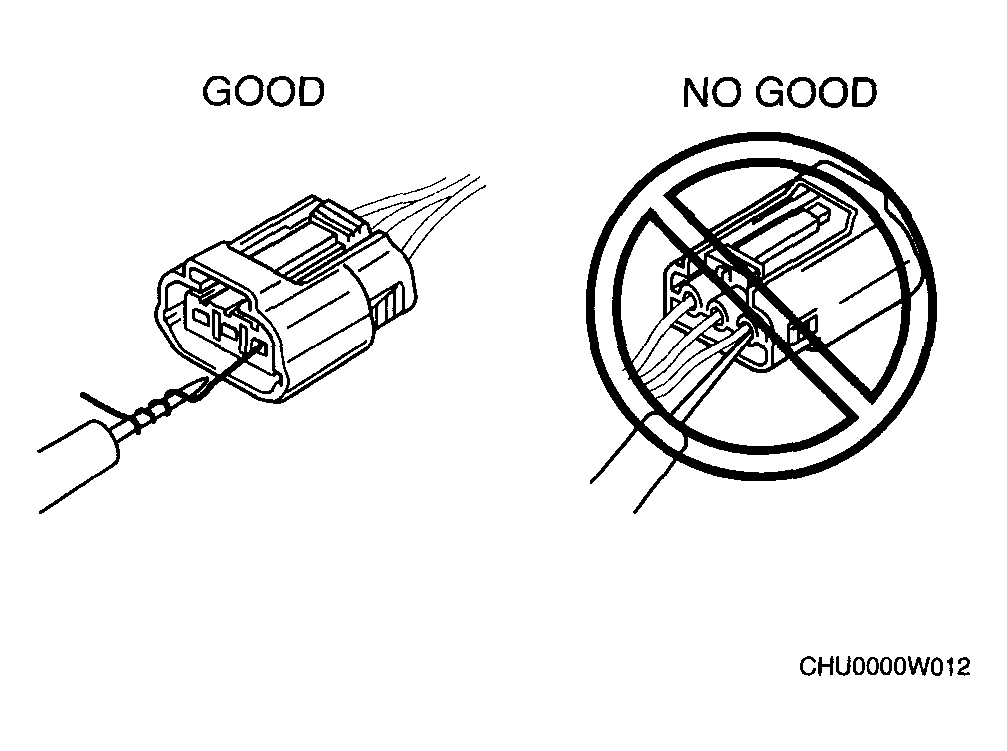

Fig 2: View Of Proper And Improper Terminal Probe Methods
