Steering Column MULTIFUNCTION Switch
>>
Notes
Steering Column MULTIFUNCTION Switch: Notes

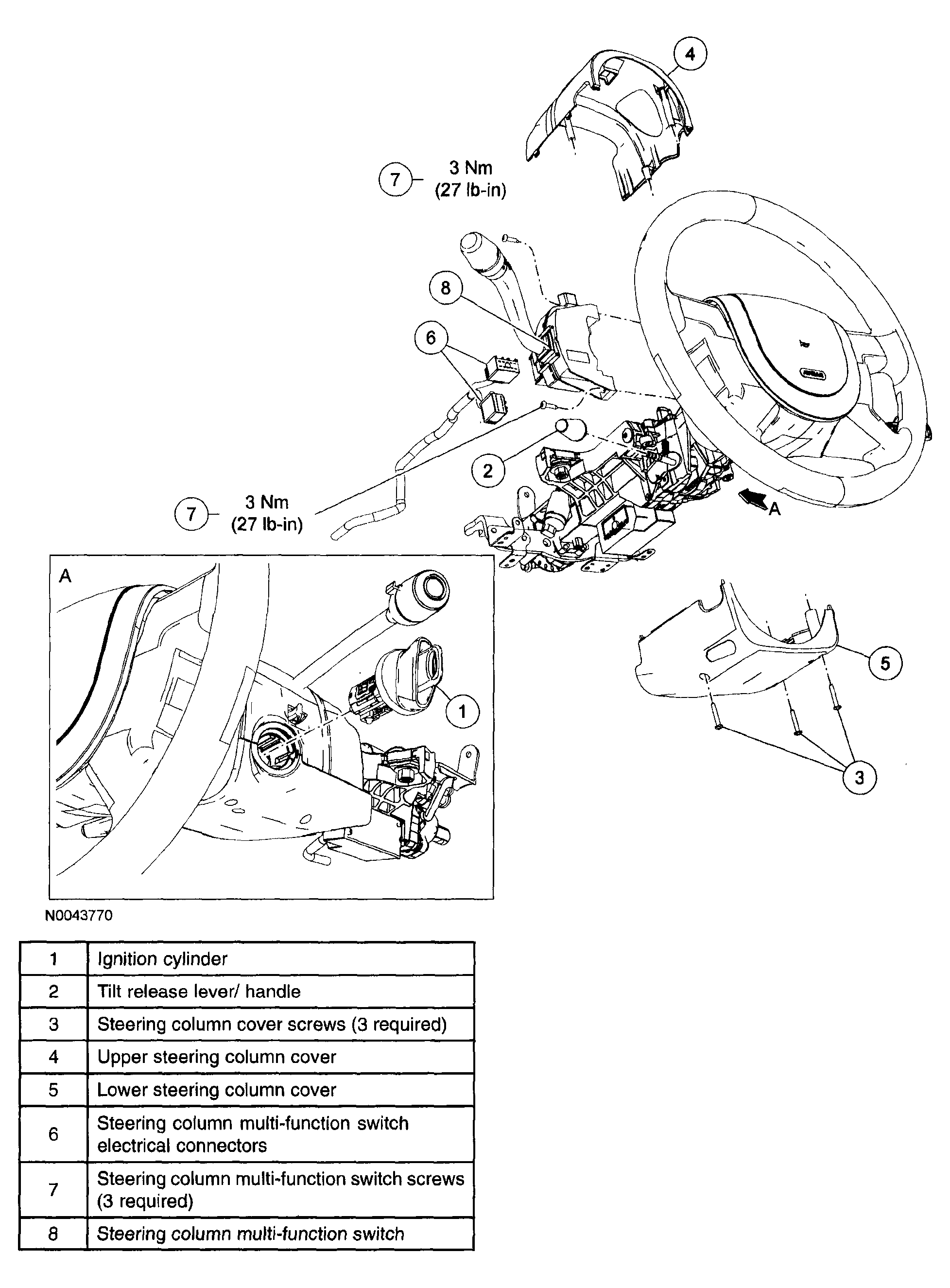

Fig 1: Exploded View - Steering Column Multifunction Switch With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
