Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Base Removal

Base Removal

  1. Remove the rear view mirror.
  2. Wind each end of a wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST  (piano wire) to prevent it from breaking.
  3. Saw through the sealant to remove the base.

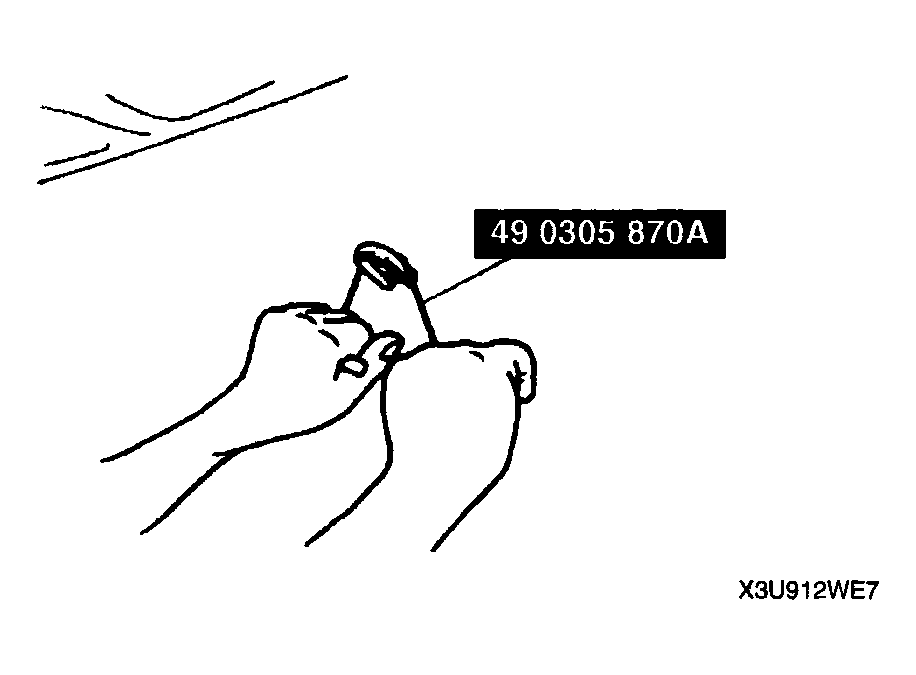

    Fig 1: Removing Rear View Mirror Base
    G04329473Courtesy of MAZDA MOTORS CORP.
