Power Outside Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Partially peel off the door screen.
  5. Disconnect the connector.
  6. Remove the nuts, and then remove the power outside mirror.
  7. Install in the reverse order of removal.

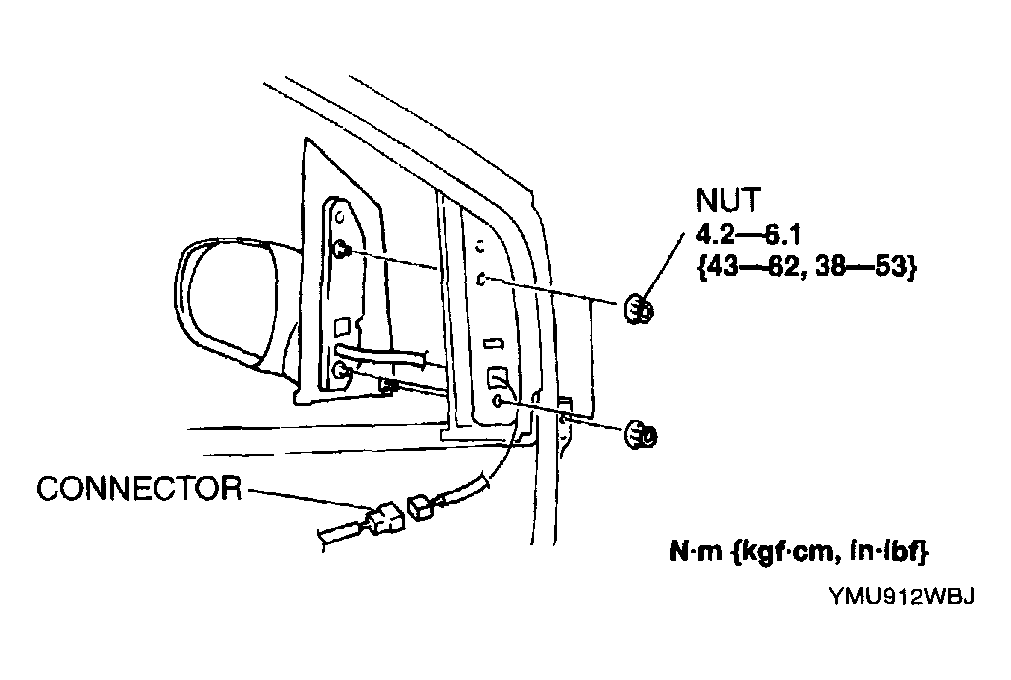

    Fig 1: Power Outside Mirror With Torque Specifications
    G04329461Courtesy of MAZDA MOTORS CORP.
