Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Power Window Sub-Switch Inspection >> Rear

Power Window Sub-Switch Inspection: Rear

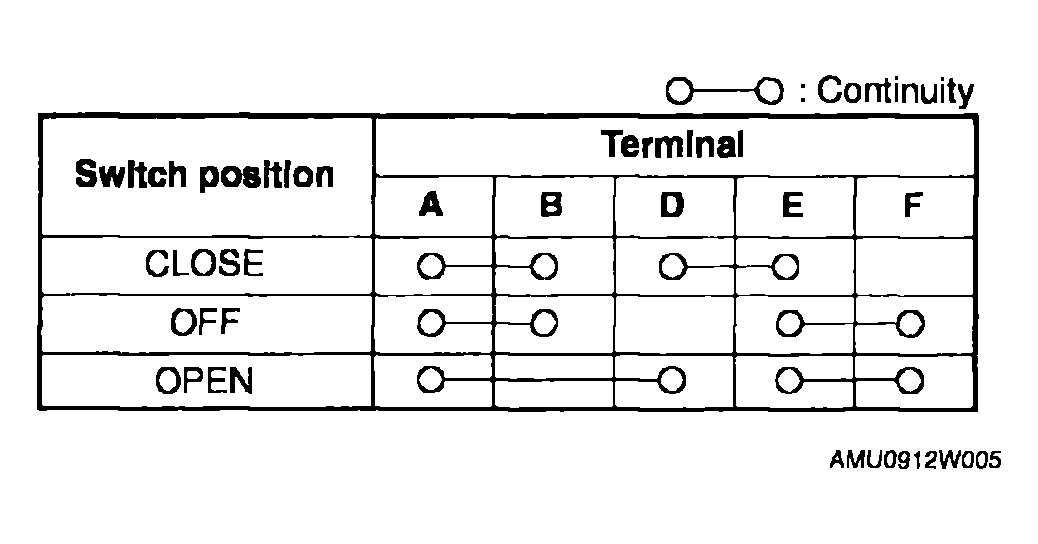

Fig 1: Power Window Sub-Switch Continuity Chart - Rear

G04329422

Courtesy of MAZDA MOTORS CORP.
