TCS Off Switch Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.

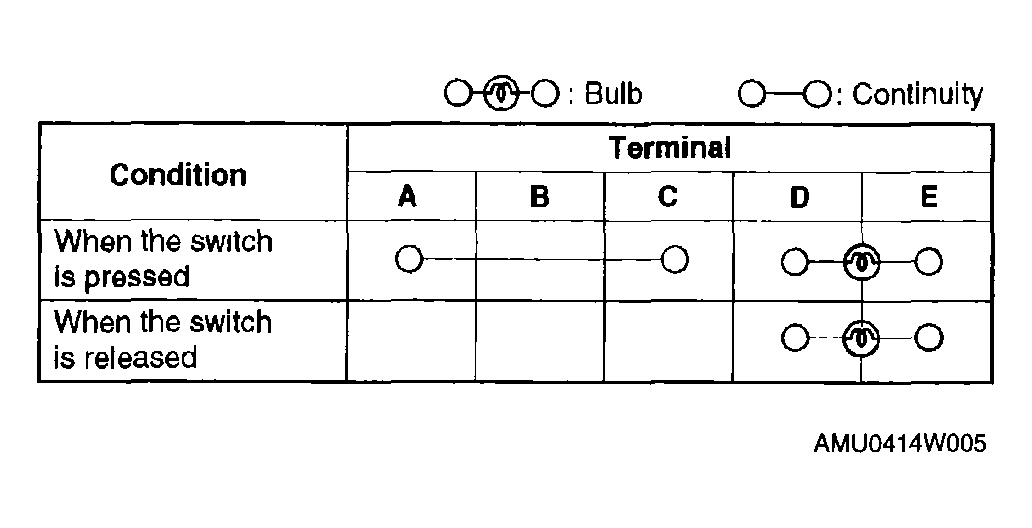

Fig 1: TCS Off Switch Continuity Chart
G04328673Courtesy of MAZDA MOTORS CORP.

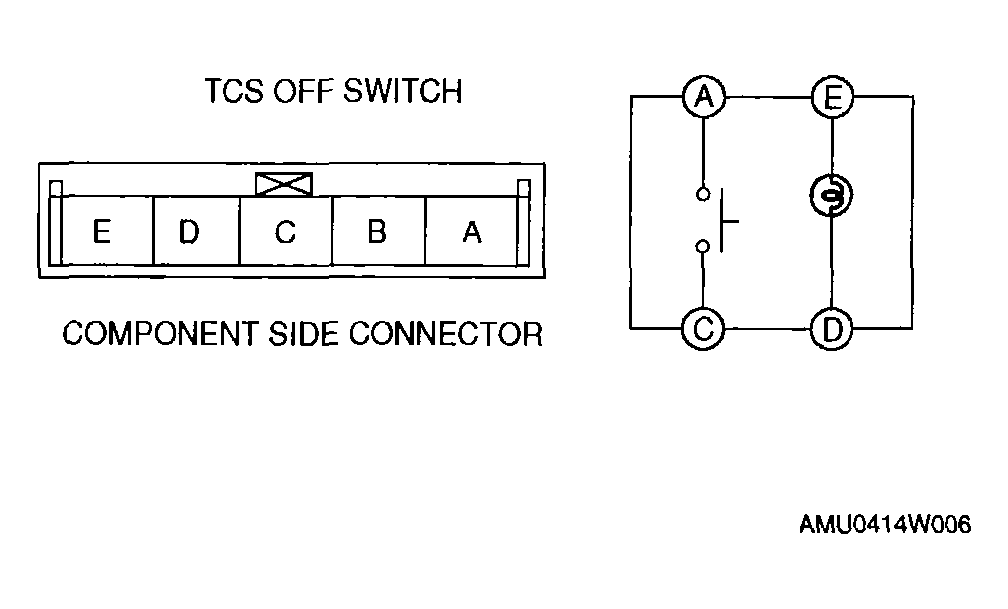

Fig 2: TCS Off Switch Connector Terminals
G04328674Courtesy of MAZDA MOTORS CORP.
