Key Reminder Switch Inspection

  1. Disconnect the key reminder switch connector.
  2. Inspect for continuity between the key reminder switch terminals using an ohmmeter.
    • If not as specified, replace the key reminder switch.

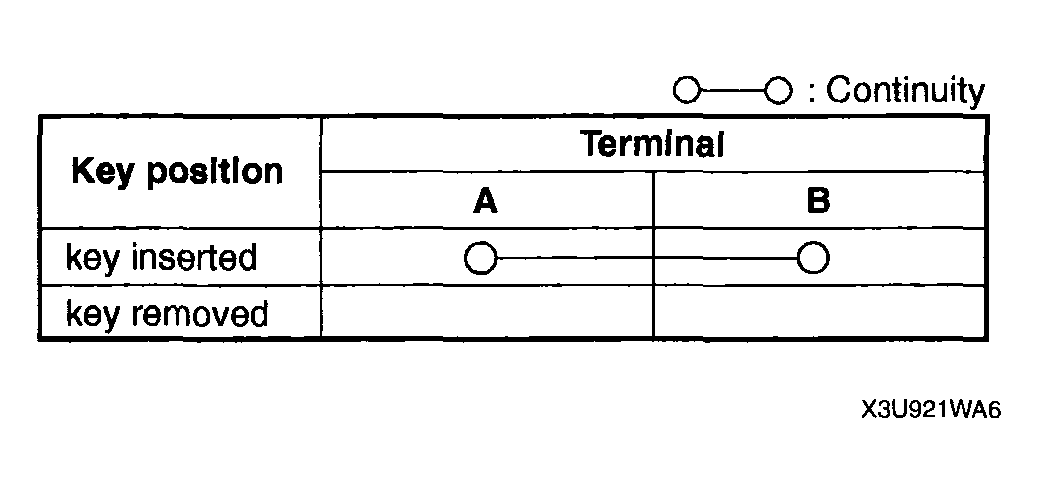

Fig 1: Key Reminder Switch Continuity Table
G04329826Courtesy of MAZDA MOTORS CORP.

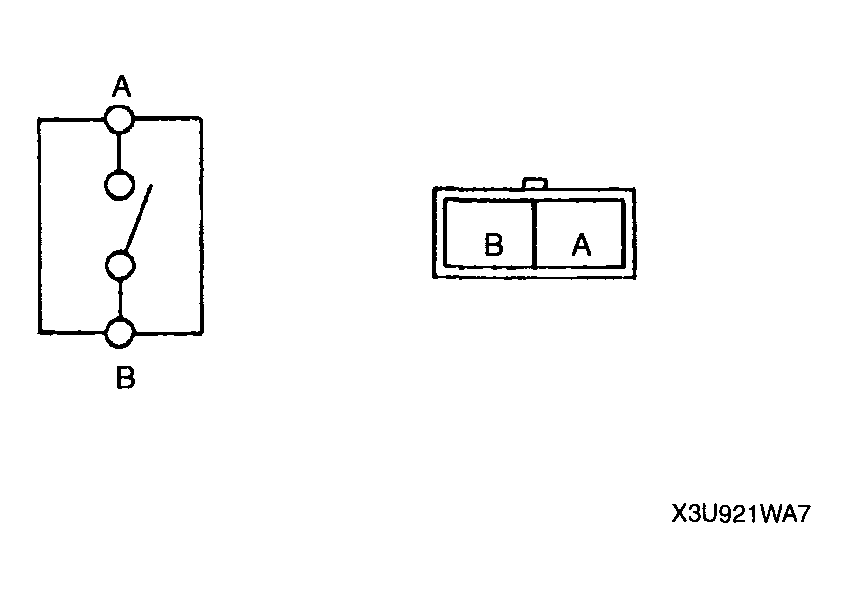

Fig 2: Key Reminder Switch Connector Terminals
G04329827Courtesy of MAZDA MOTORS CORP.
