Key Reminder Switch Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the key reminder switch connector.
4. Remove the key reminder switch.
5. Install in the reverse order of removal.

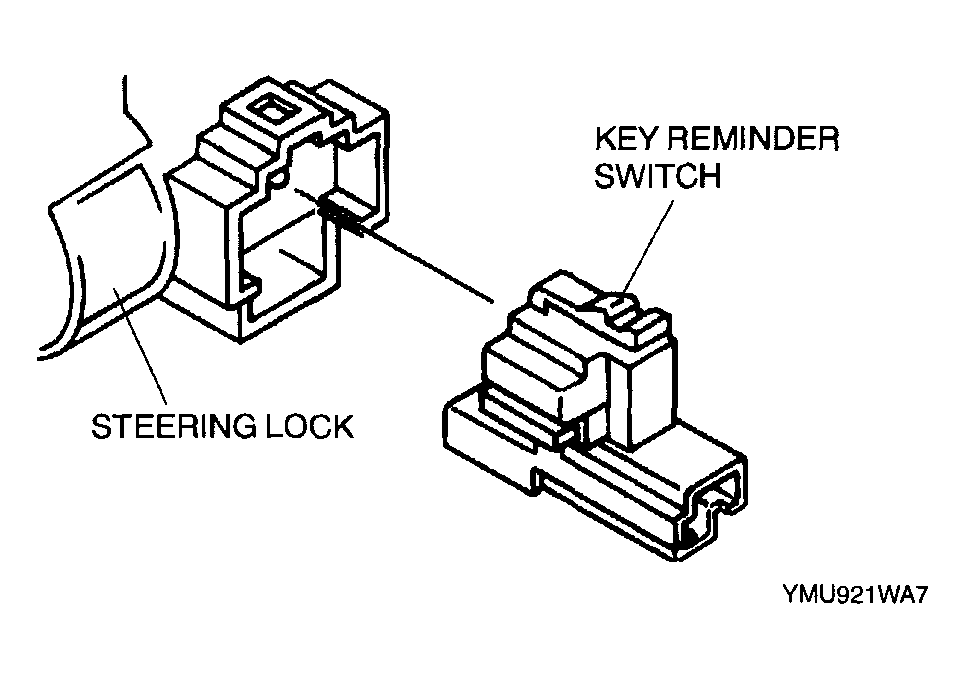

Fig 1: Identifying Key Reminder Switch

Courtesy of MAZDA MOTORS CORP.
