Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

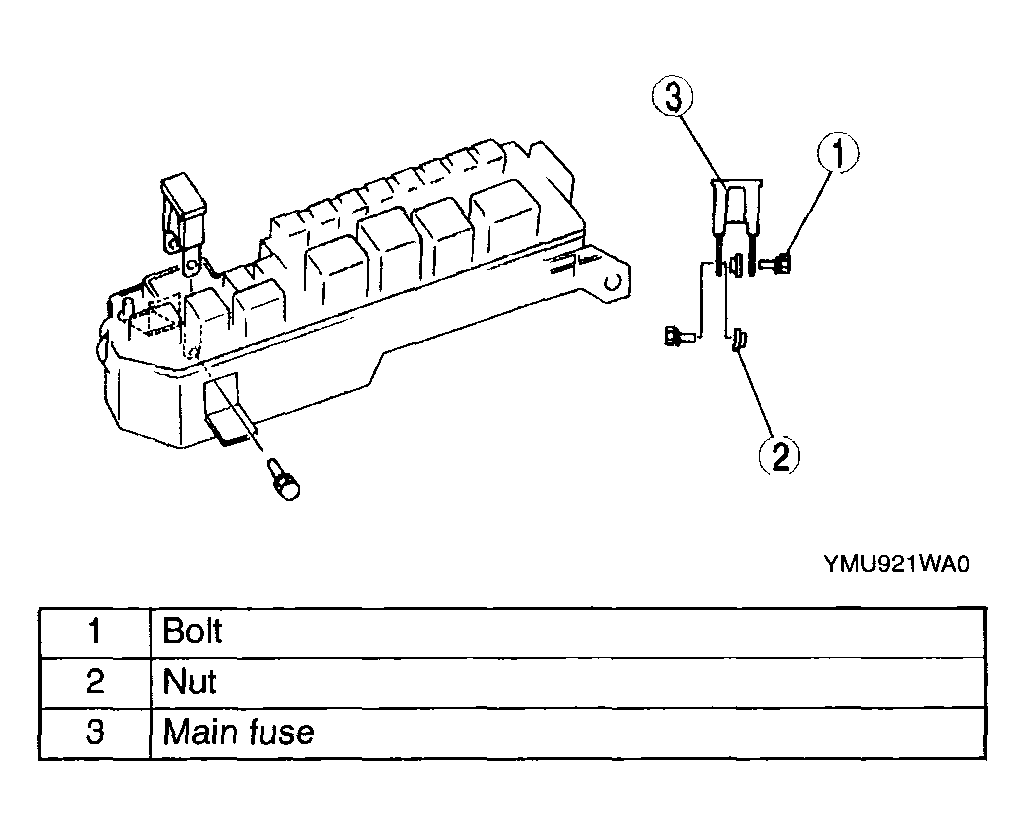

Fig 1: Identifying Main Fuse
G04329819Courtesy of MAZDA MOTORS CORP.
