Instrument Cluster Disassembly/Assembly

CAUTION:

• If the instrument cluster is dropped or the print plate is damaged, the system will not work properly and it may be the cause of trouble or malfunctions.

1. Disassemble in the order indicated in Fig 1.
2. Assemble in the reverse order of disassembly.

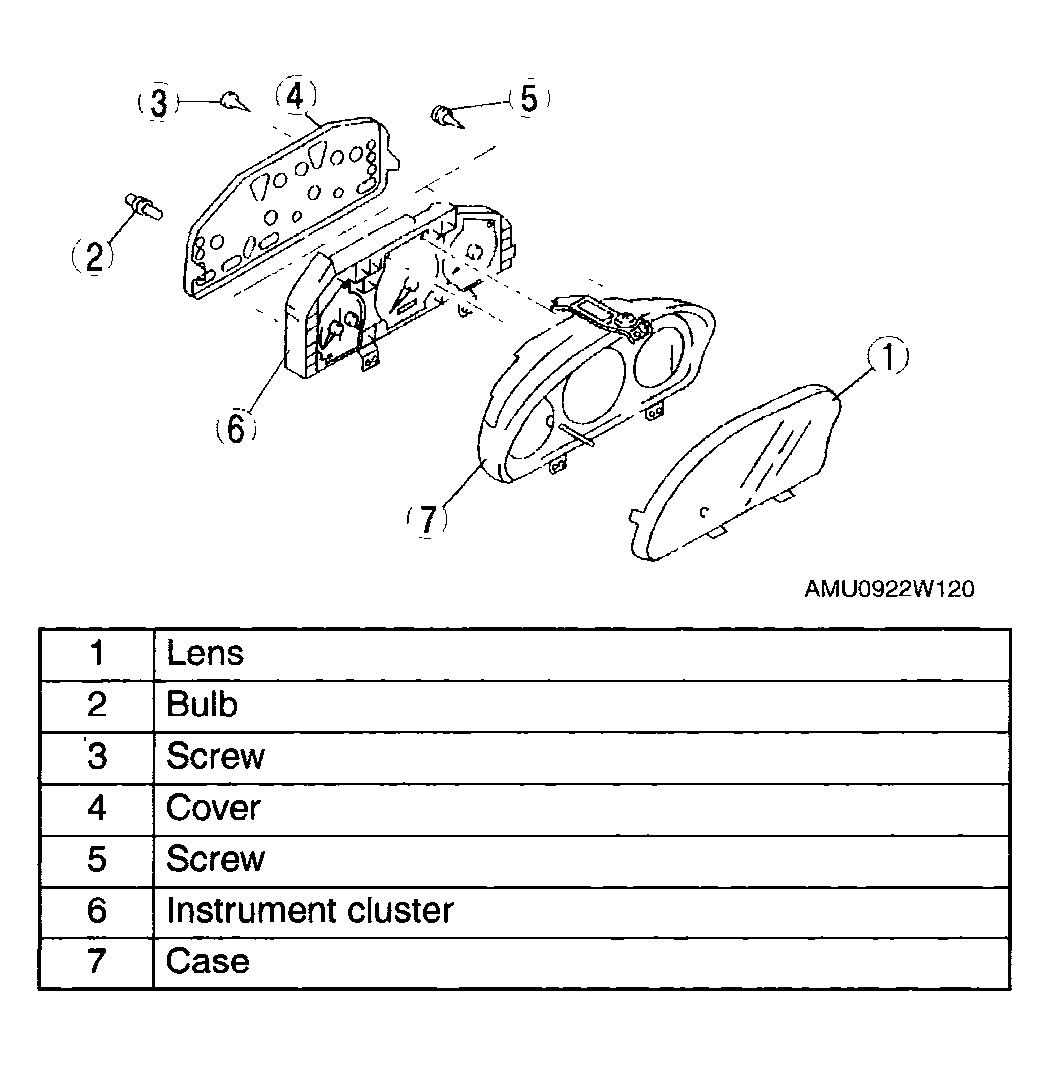

Fig 1: Identifying Instrument Cluster Components

Courtesy of MAZDA MOTORS CORP.
