Instrument Cluster Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
3. Remove the meter hood.
4. Pull down the selector lever to the D range position.
5. Remove in the order indicated in Fig 1.
6. Install in the reverse order of removal.

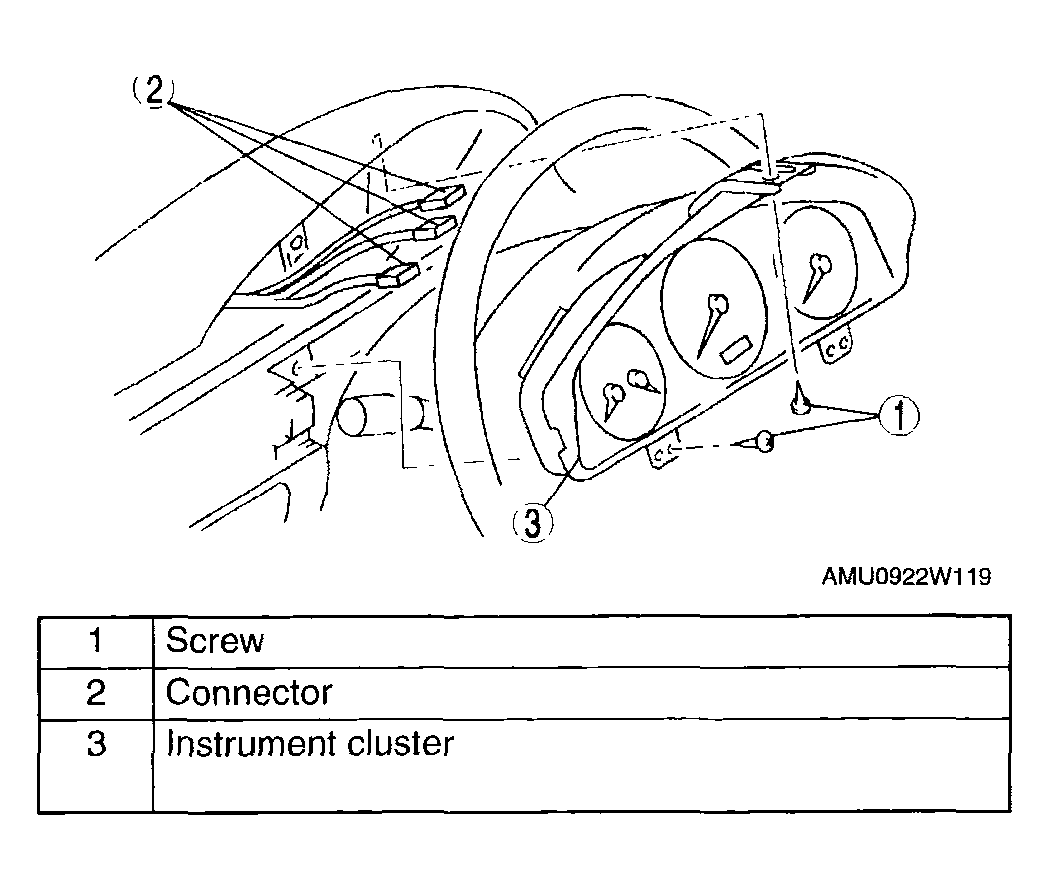

Fig 1: Removing Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
