Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Exhaust System Removal/Installation >> Notes

Exhaust System Removal/Installation: Notes

WARNING:
  • When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

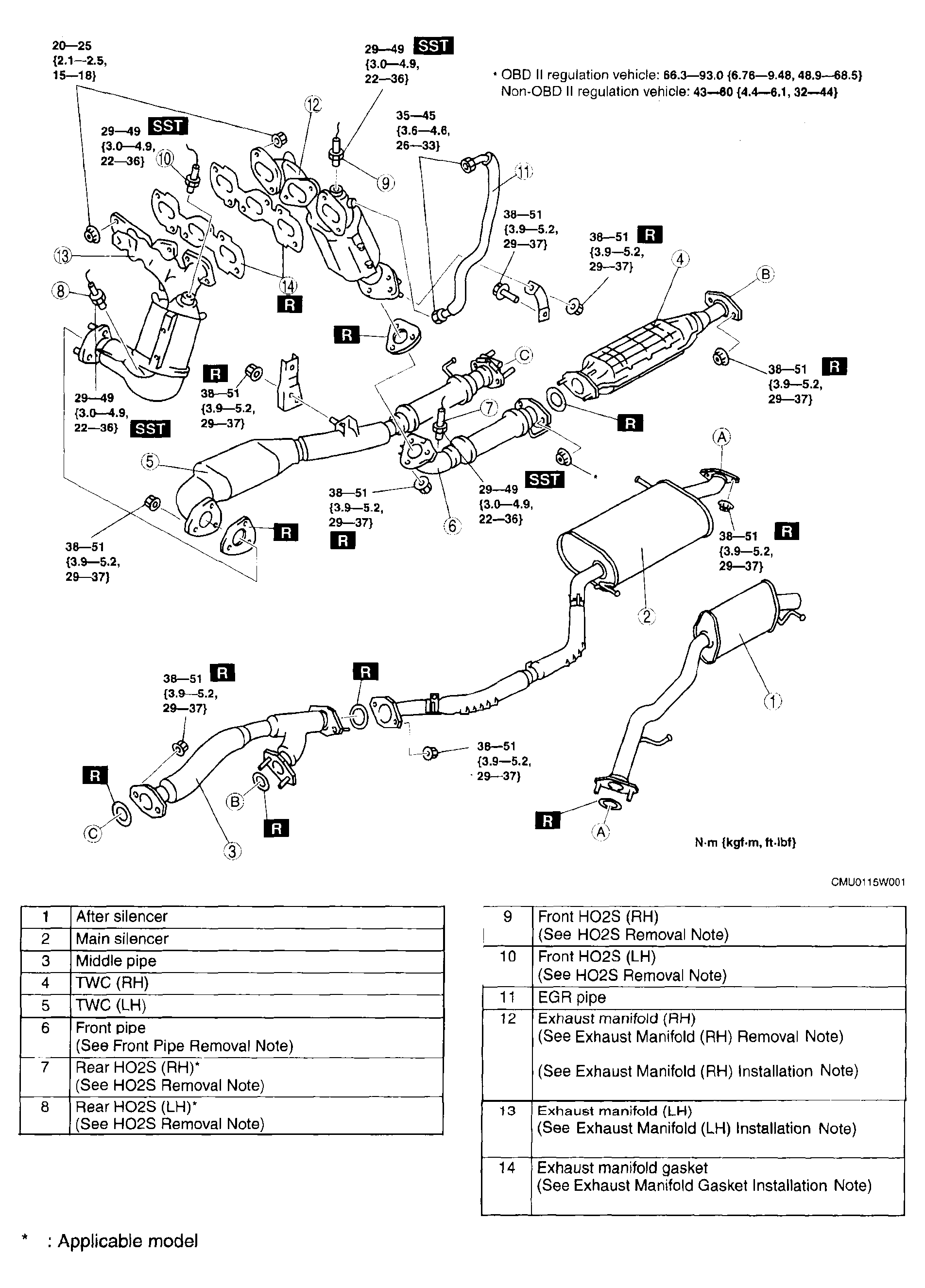

Fig 1: Exploded View Of Exhaust System With Torque Specification
G04328185Courtesy of MAZDA MOTORS CORP.
