Electrical System: Fuse: Replacement

• When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse fails again, the circuit probably has a short and the wiring should be inspected.

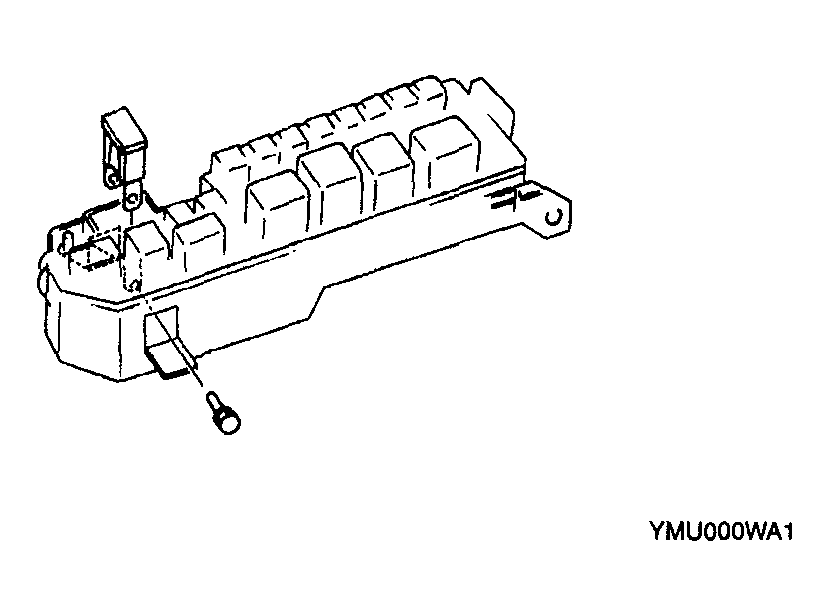

Fig 1: Removing Fuse

Courtesy of MAZDA MOTORS CORP.

• Be sure the negative battery terminal is disconnected before replacing a main fuse.
• When replacing a pullout fuse, use the fuse puller.

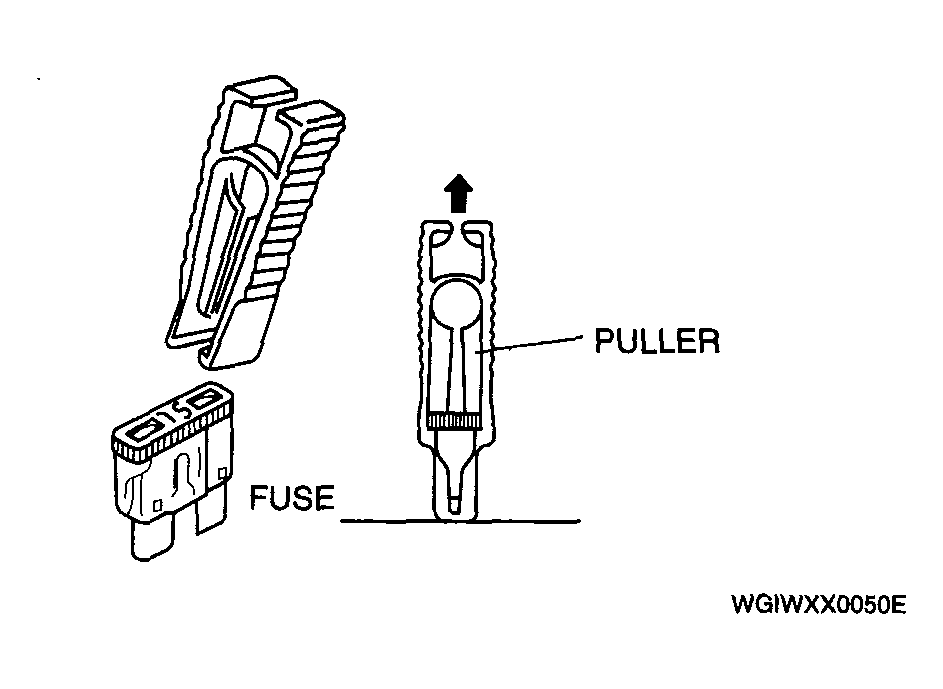

Fig 2: Identifying Fuse Puller

Courtesy of MAZDA MOTORS CORP.
