OEM General Information: Towing: Notes

CAUTION:

• Do not tow the vehicle pointed backward with driving wheels on the ground. This may cause internal damage to the transaxle.

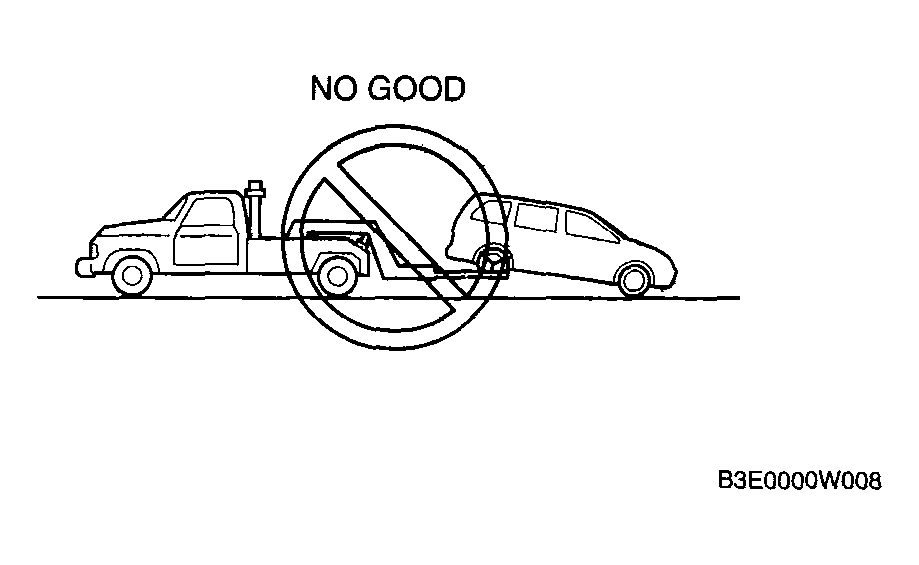

Fig 1: Identifying Wrong Lifting And Towing Procedure (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• Do not tow with sling-type equipment. This could damage your vehicle. Use wheel-lift or flatbed equipment.

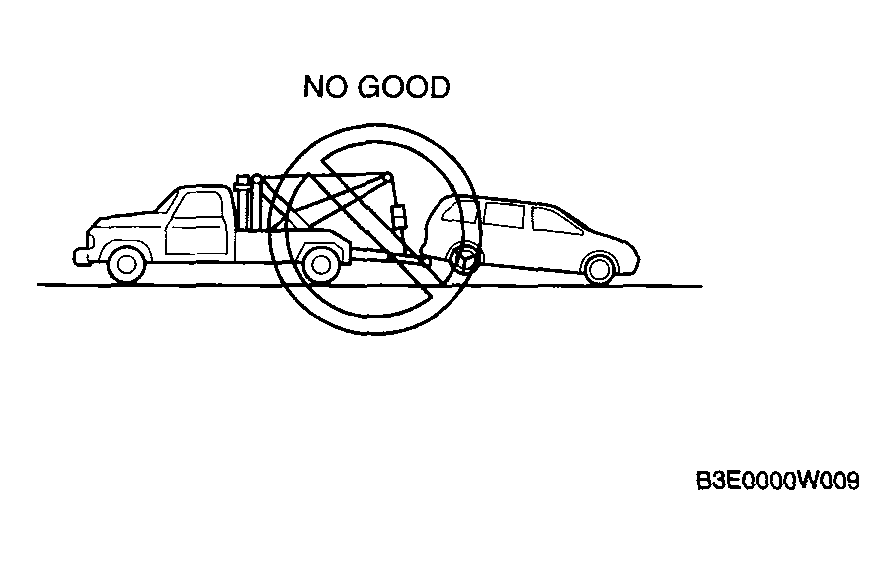

Fig 2: Identifying Wrong Lifting And Towing Procedure (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

• Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.
• A towed vehicle usually should have its front wheels off the ground. If excessive damage or other conditions prevent this, use wheel dollies.
• When towing with the rear wheels on the ground, release the parking brake.

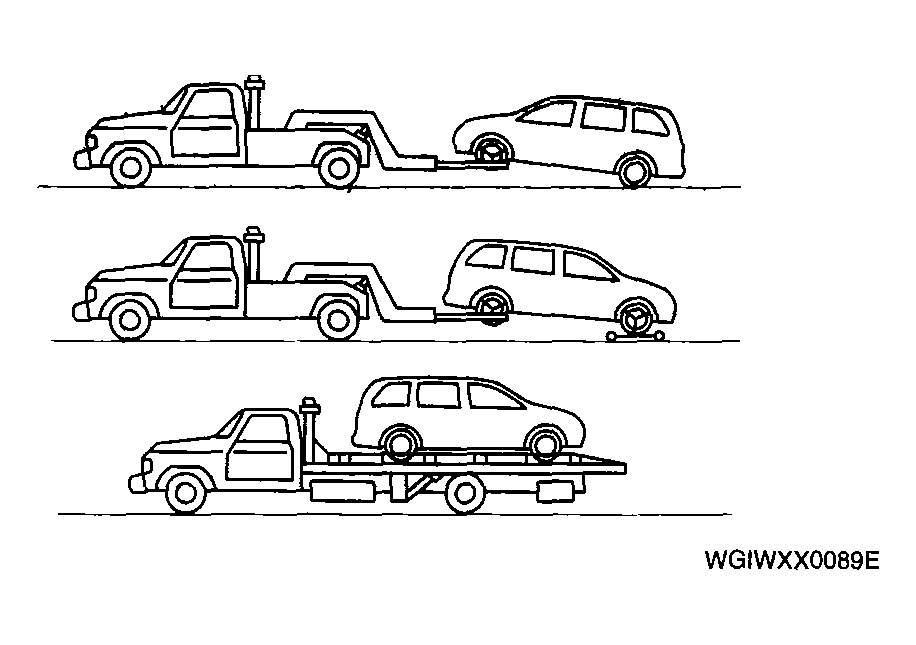

Fig 3: Identifying Proper Lifting And Towing Procedure

Courtesy of MAZDA MOTORS CORP.
