Electrical System: Terminals: Replacement

• Use the appropriate tools to remove a terminal as shown. When installing a terminal, be sure to insert it until it locks securely.
• Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down, pull the terminal out from the connector.

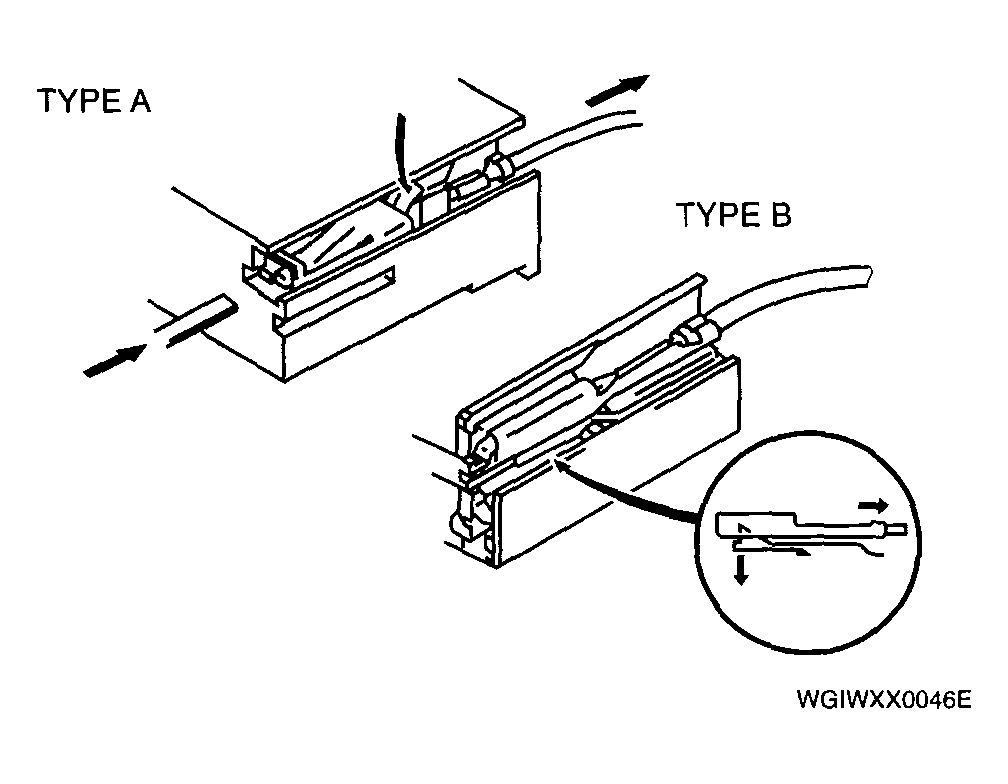

Fig 1: Using Appropriate Tools To Remove Terminal

Courtesy of MAZDA MOTORS CORP.
