Power Window Regulator Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the door unit. (See DOOR UNIT REMOVAL/INSTALLATION .)
  5. Remove the door glass. (See DOOR GLASS REMOVAL/INSTALLATION  .)
  6. Remove the nuts.

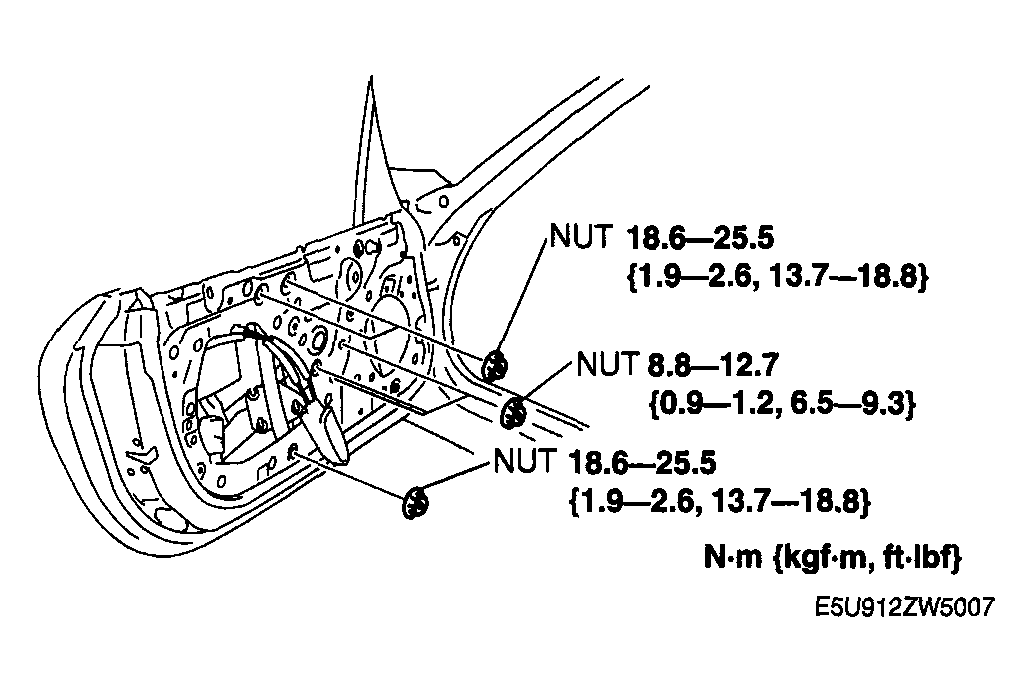

    Fig 1: Removing Regulator Nuts With Torque Specifications
    G04323439Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window regulator.
  8. Install in the reverse order of removal.

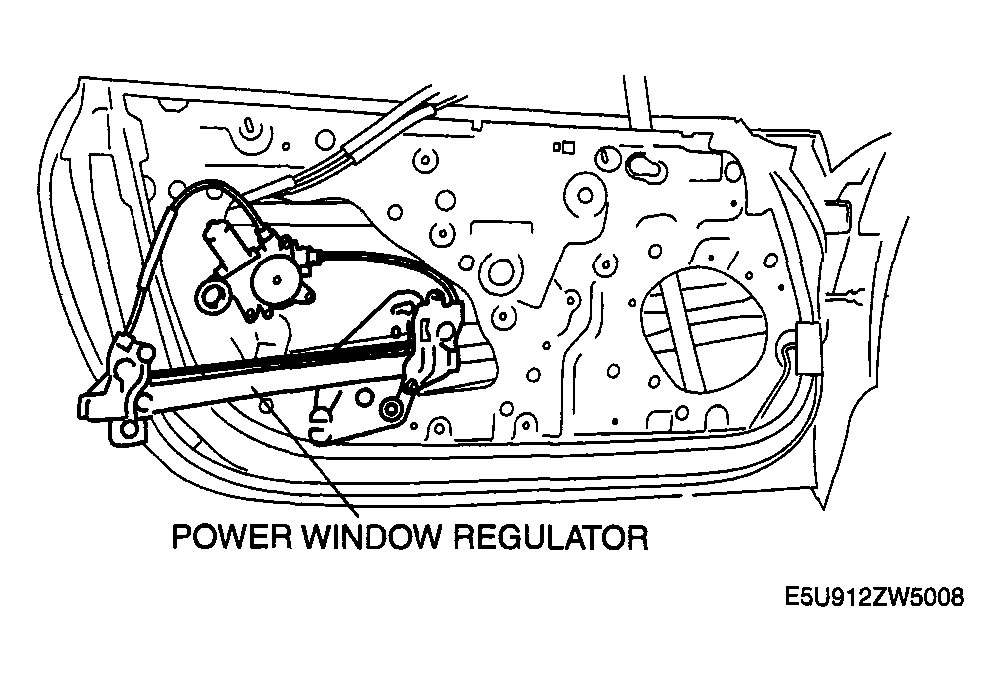

    Fig 2: Removing Power Window Regulator
    G04323440Courtesy of MAZDA MOTORS CORP.
