Abs HU/Cm Removal/Installation: Notes

CAUTION:

When replacing the DSC HU/CM with a new one, configuration procedure must be performed before removing the DSC HU/CM. If configuration is not completed before removing the DSC HU/CM, DTC B2477 will be detected.
The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

Perform ABS configuration. (See ABS CONFIGURATION .)
Remove in the order indicated in Fig 1 .
Install in the reverse order of removal.

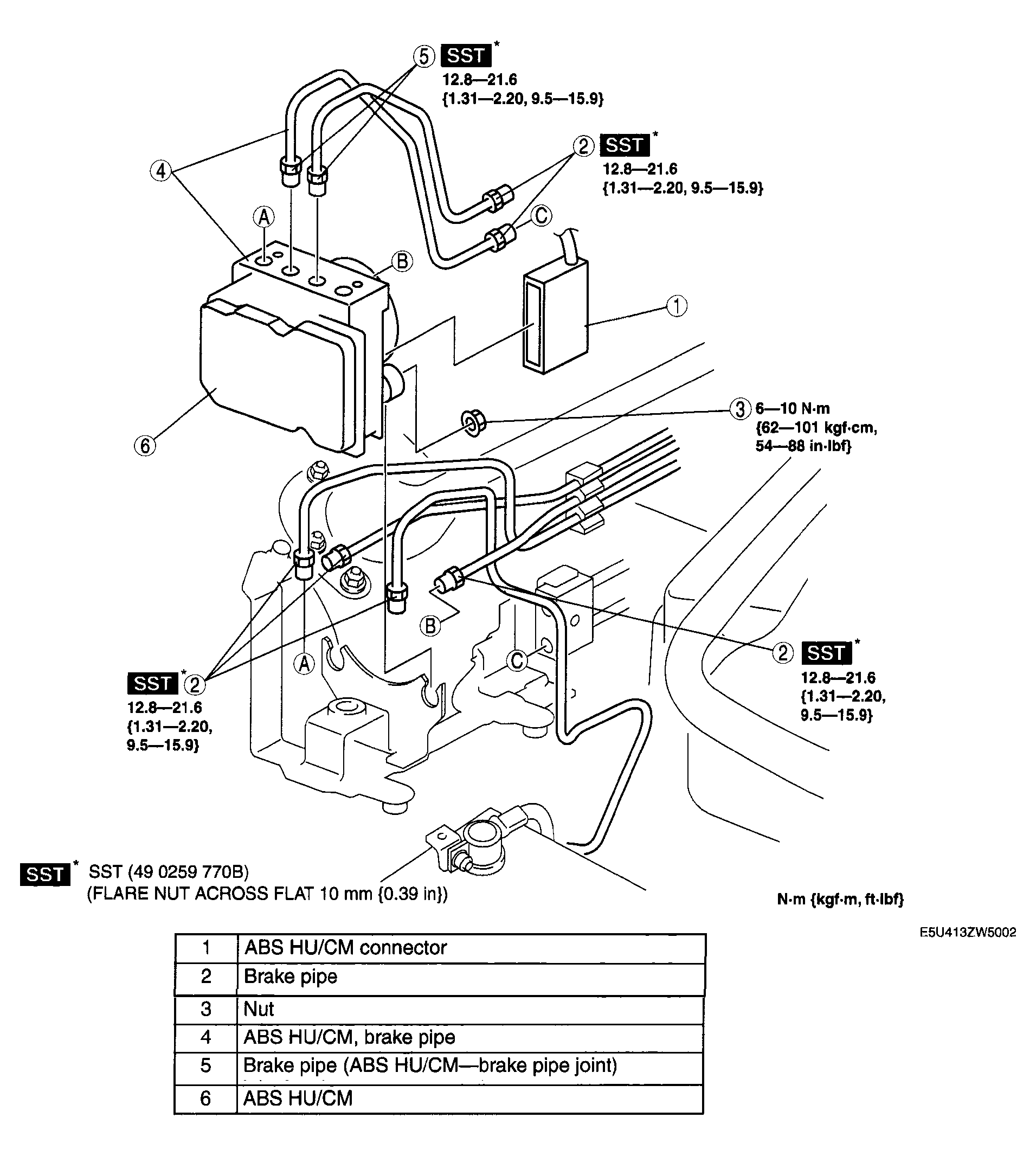

Fig 1: ABS HU/CM Removing/Installing Steps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
