Home >> Mazda >> 2006 >> MX-5 Miata Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Front Abs Wheel-Speed Sensor Removal/Installation

Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mudguard.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

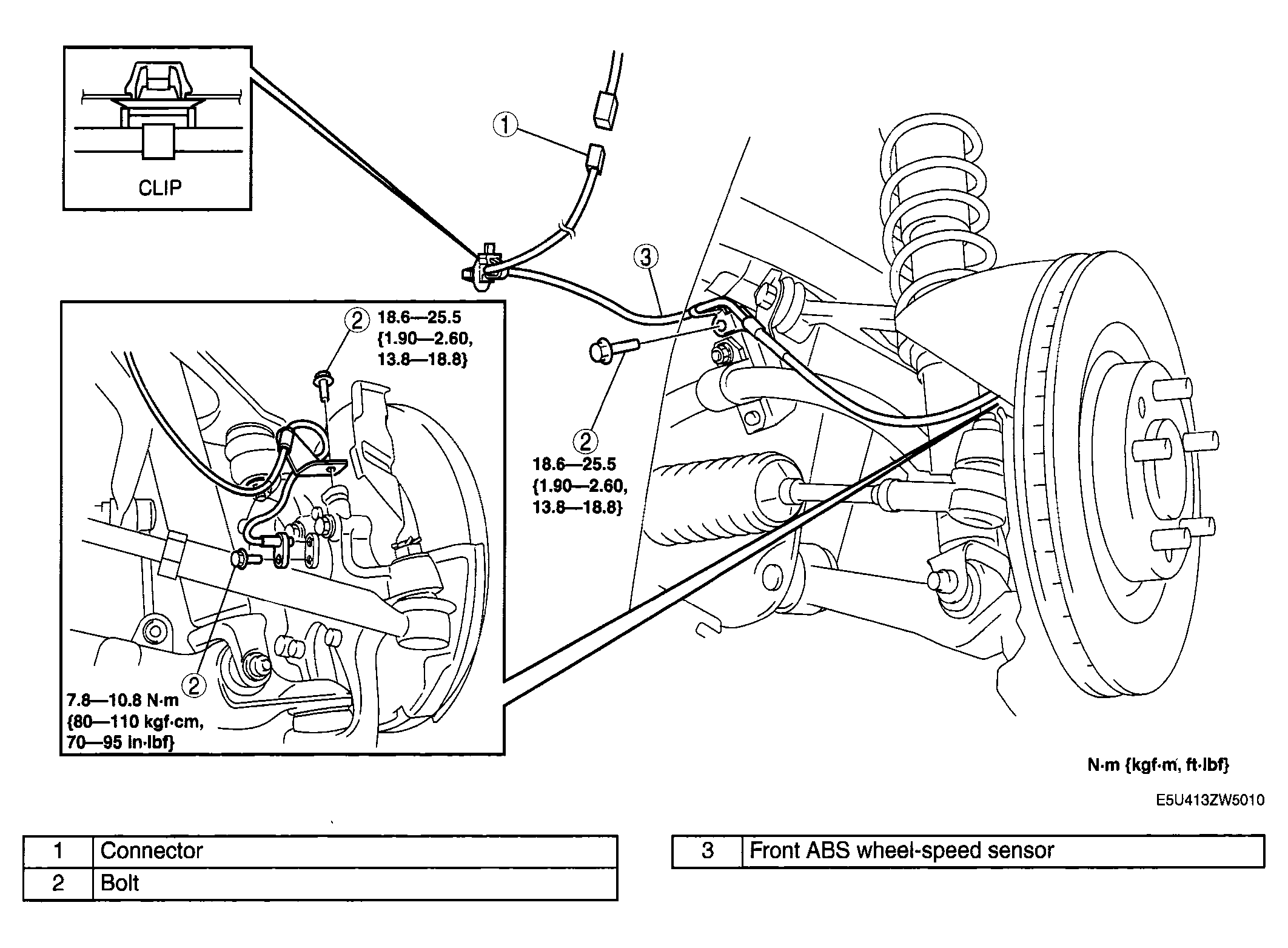

    Fig 1: Front ABS Wheel-Speed Sensor Removing/Installing Steps With Torque Specifications
    G04318425Courtesy of MAZDA MOTORS CORP.
