DSC Off Switch Inspection

  1. Remove the DSC OFF switch.
  2. Verify that the continuity is as indicated in Fig 1 .
    • If not as indicated in Fig 1 replace the DSC OFF switch.

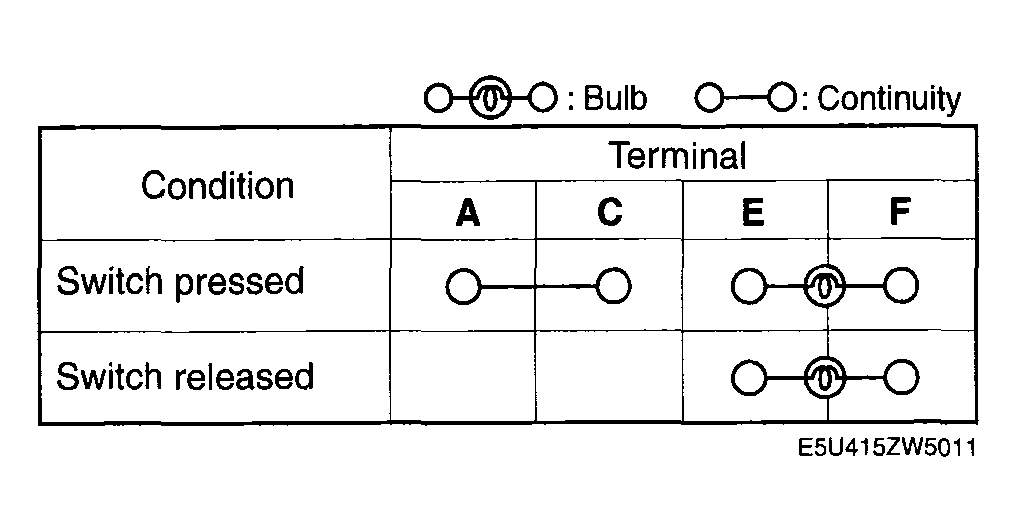

    Fig 1: DSC OFF Switch Continuity Table
    G04318453Courtesy of MAZDA MOTORS CORP.

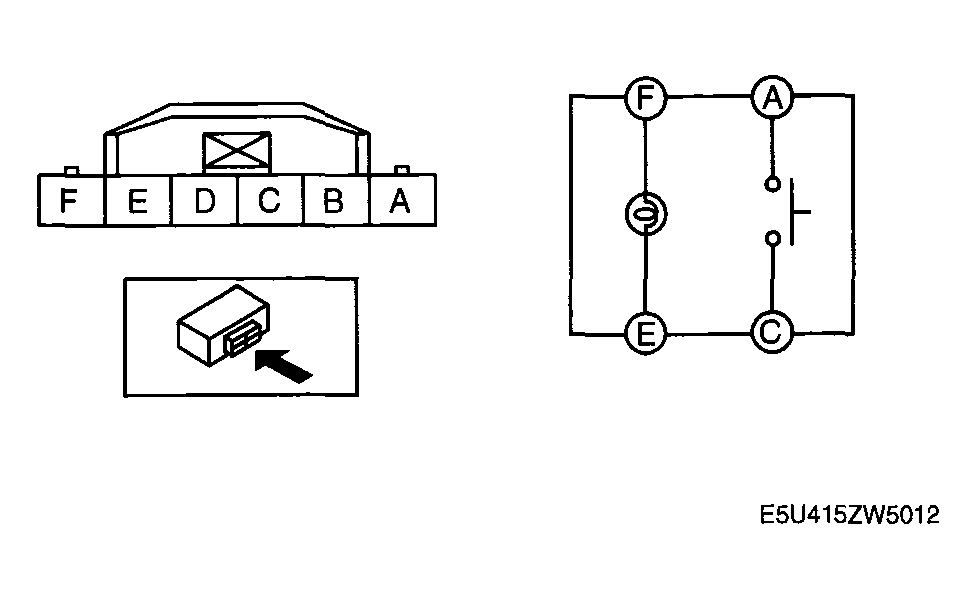

    Fig 2: Identifying DSC OFF Switch Connector Terminals
    G04318454Courtesy of MAZDA MOTORS CORP.
