Ignition Switch Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in Fig 1 .

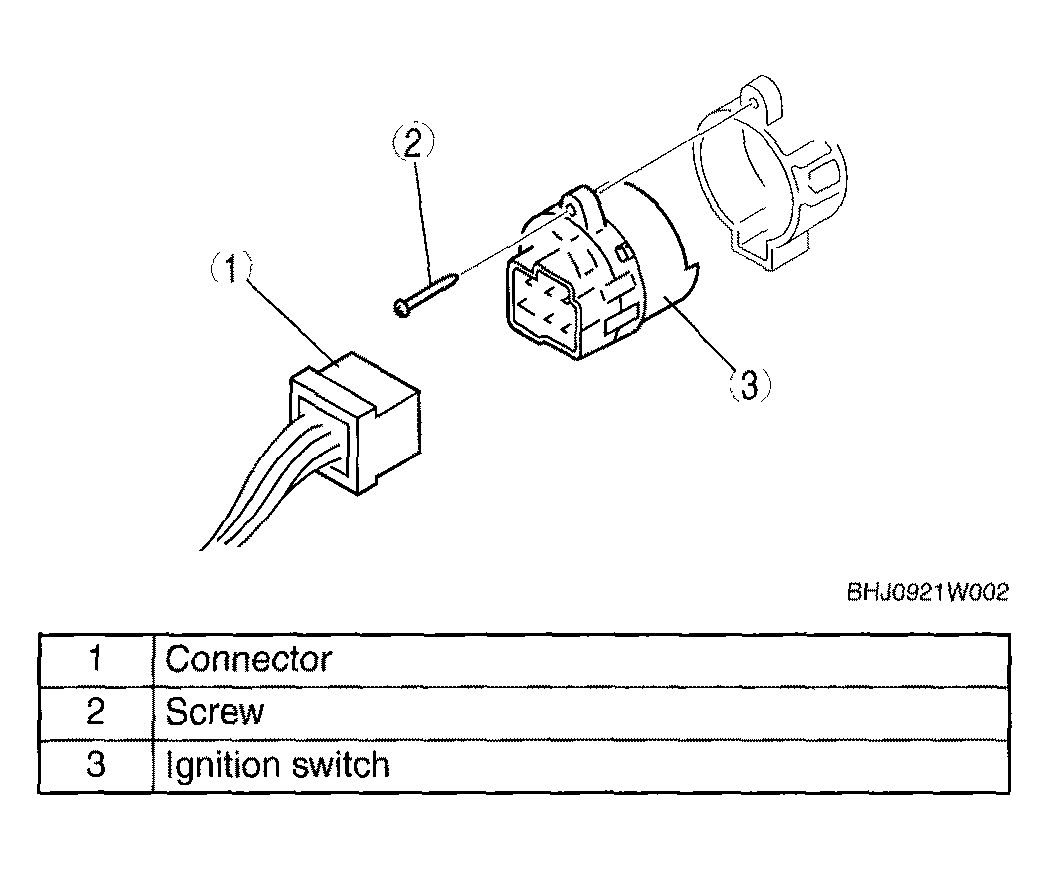

    Fig 1: Removing/Installing Ignition Switch
    G04323804Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
