Key Reminder Switch Inspection [Except Advanced Keyless System]

Verify that the continuity between the key reminder switch terminals is as indicated in Fig 1 .
- If not as indicated in Fig 1 , replace the key reminder switch.

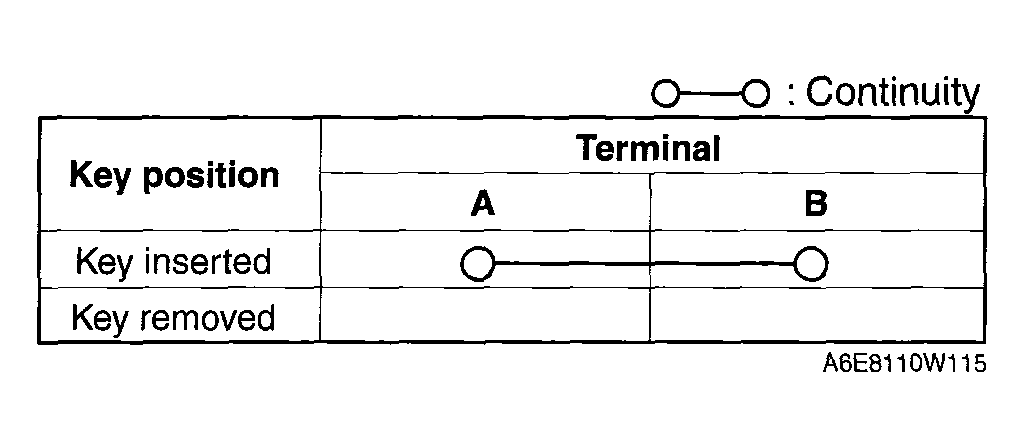

Fig 1: Key Reminder Switch Terminal Resistance Reference Table
Courtesy of MAZDA MOTORS CORP.

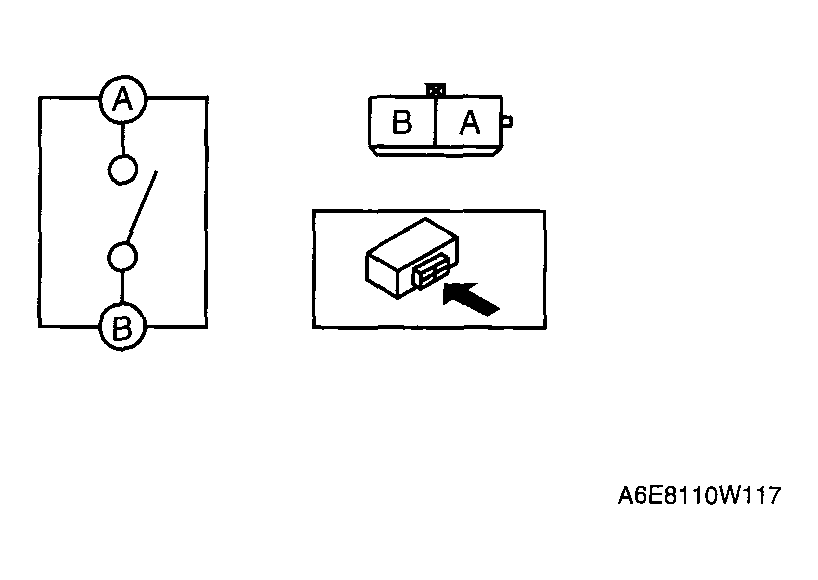

Fig 2: Inspecting Key Reminder Switch
Courtesy of MAZDA MOTORS CORP.
