Upper Block Removal Note

  1. Press and remove the tabs on upper block at the positions indicated by the arrows.
  2. Raise the upper block and remove it.

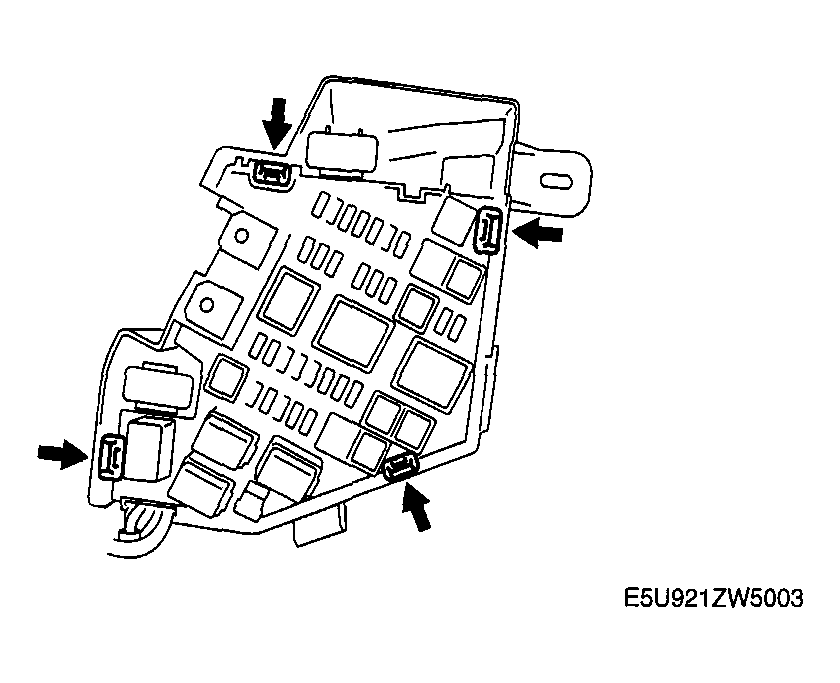

    Fig 1: Removing Upper Block
    G04323802Courtesy of MAZDA MOTORS CORP.
