Generator Removal/Installation [LF]: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation.
CAUTION:
- The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the drive belt. (See DRIVE BELT REPLACEMENT [LF] .)

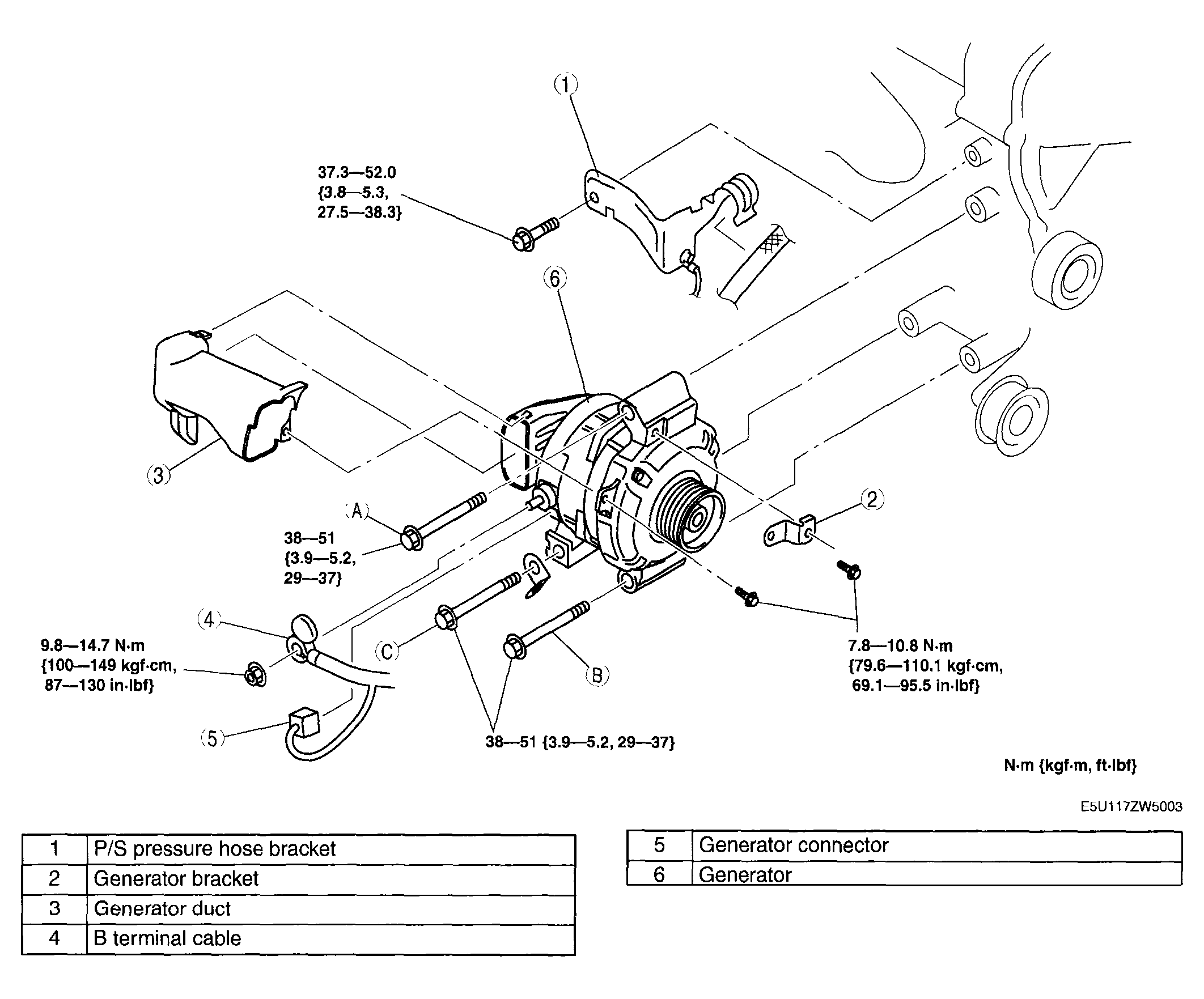

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
