Mazda
>>
2006
>>
MX-5 Miata Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Wiring Diagram
Control System Wiring Diagram

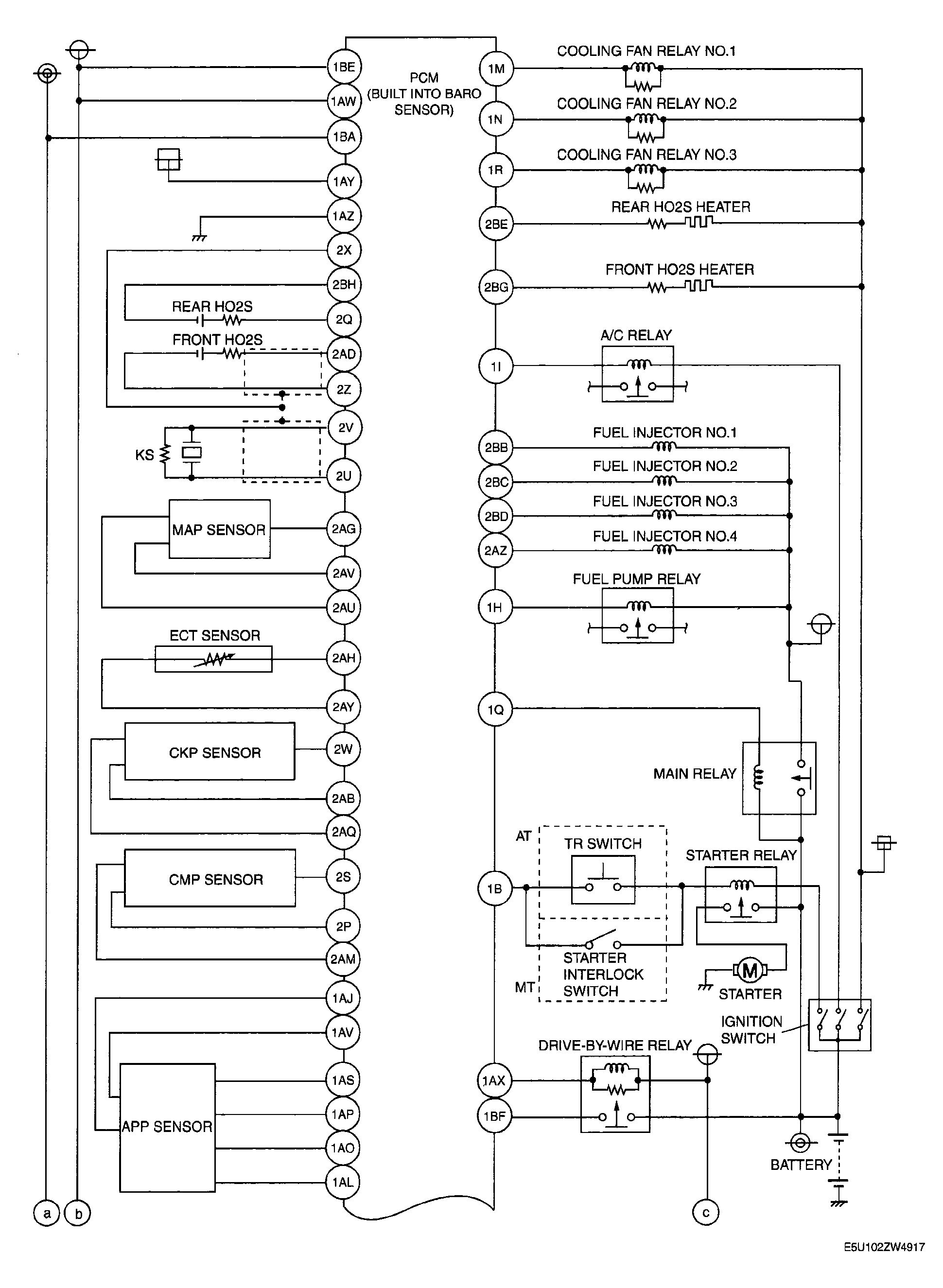

Fig 1: Engine Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

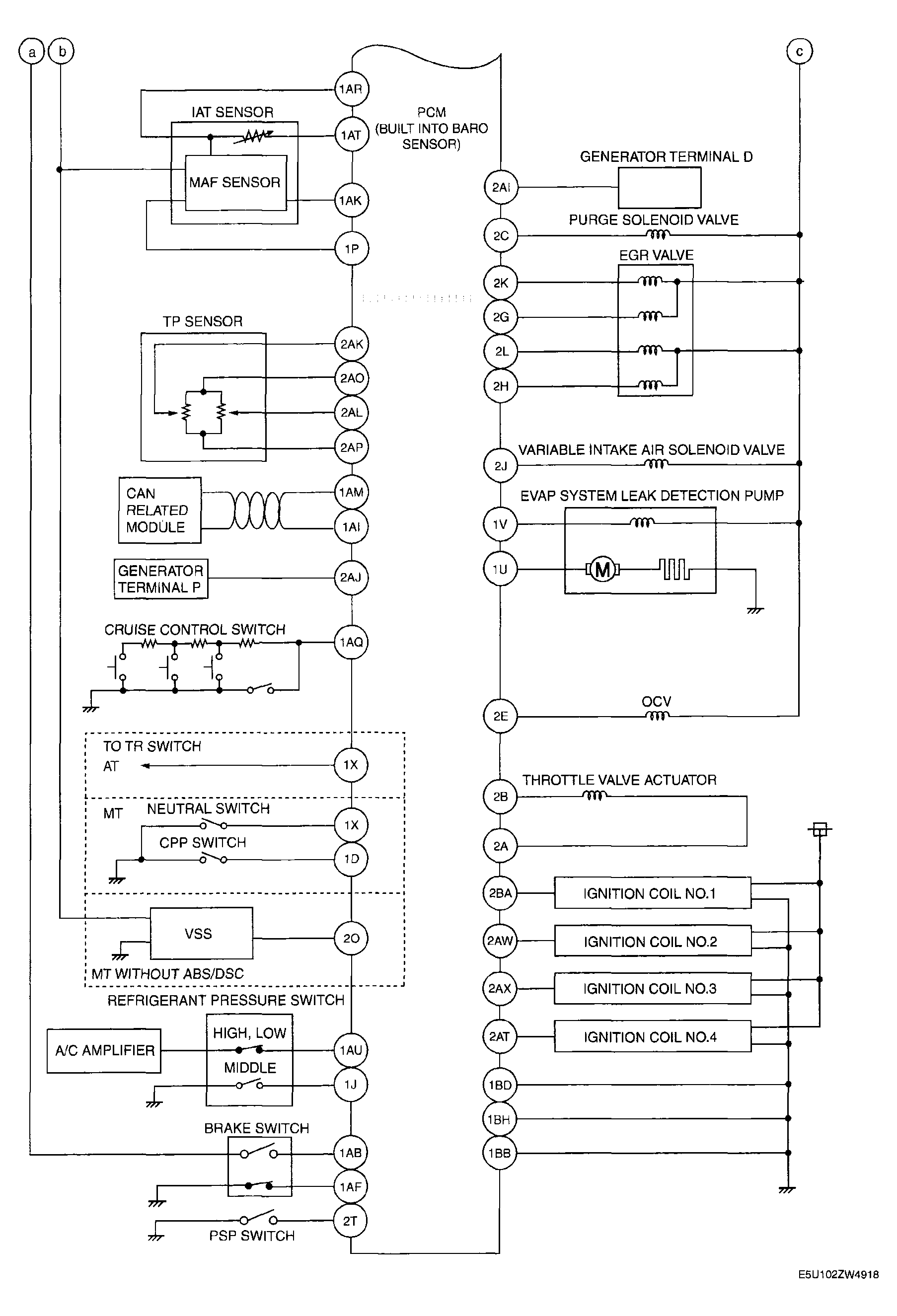

Fig 2: Engine Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
