Home >> Mazda >> 2006 >> MX-5 Miata Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Knock Sensor (KS) Inspection >> Circuit Open/Short Inspection >> Notes

Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

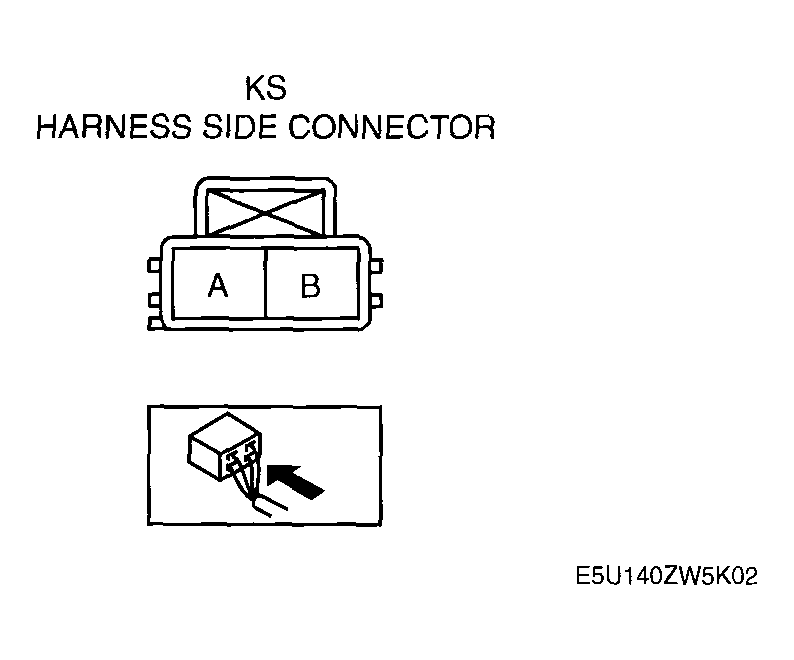

    Fig 1: Identifying Knock Sensor Harness Side Connector
    G04323066Courtesy of MAZDA MOTORS CORP.
