Inspection Using An Oscilloscope (Reference)
>>
Vehicle Speed Signal
>>
Vehicle Condition
Vehicle Condition
Vehicle speed is 10 km/h {6.2 mph}

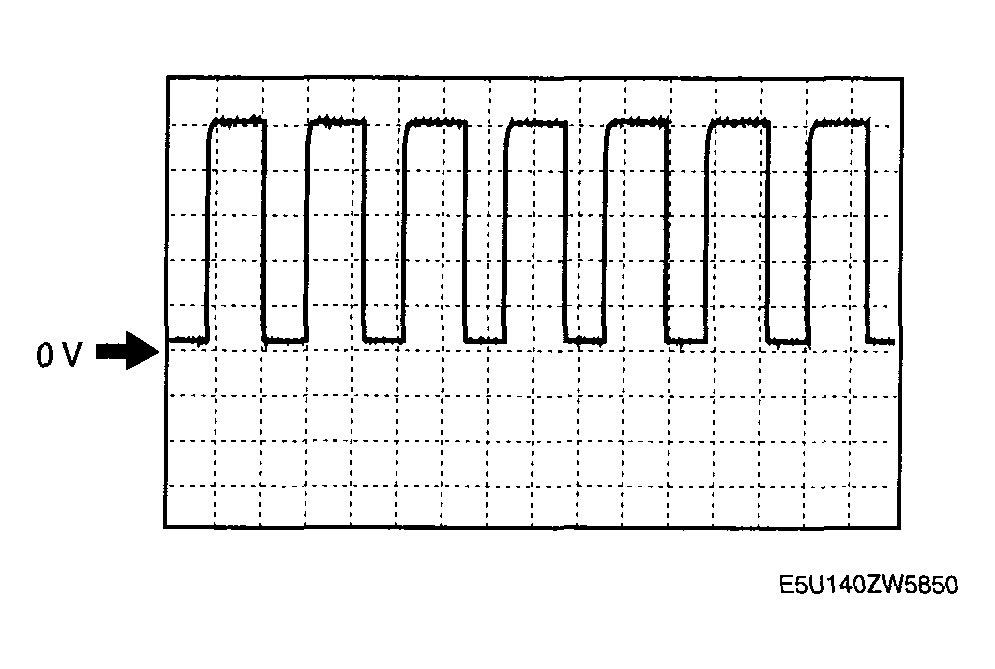

Fig 1: Waveform Graph (Vehicle Speed Signal)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
